Parts Catalog

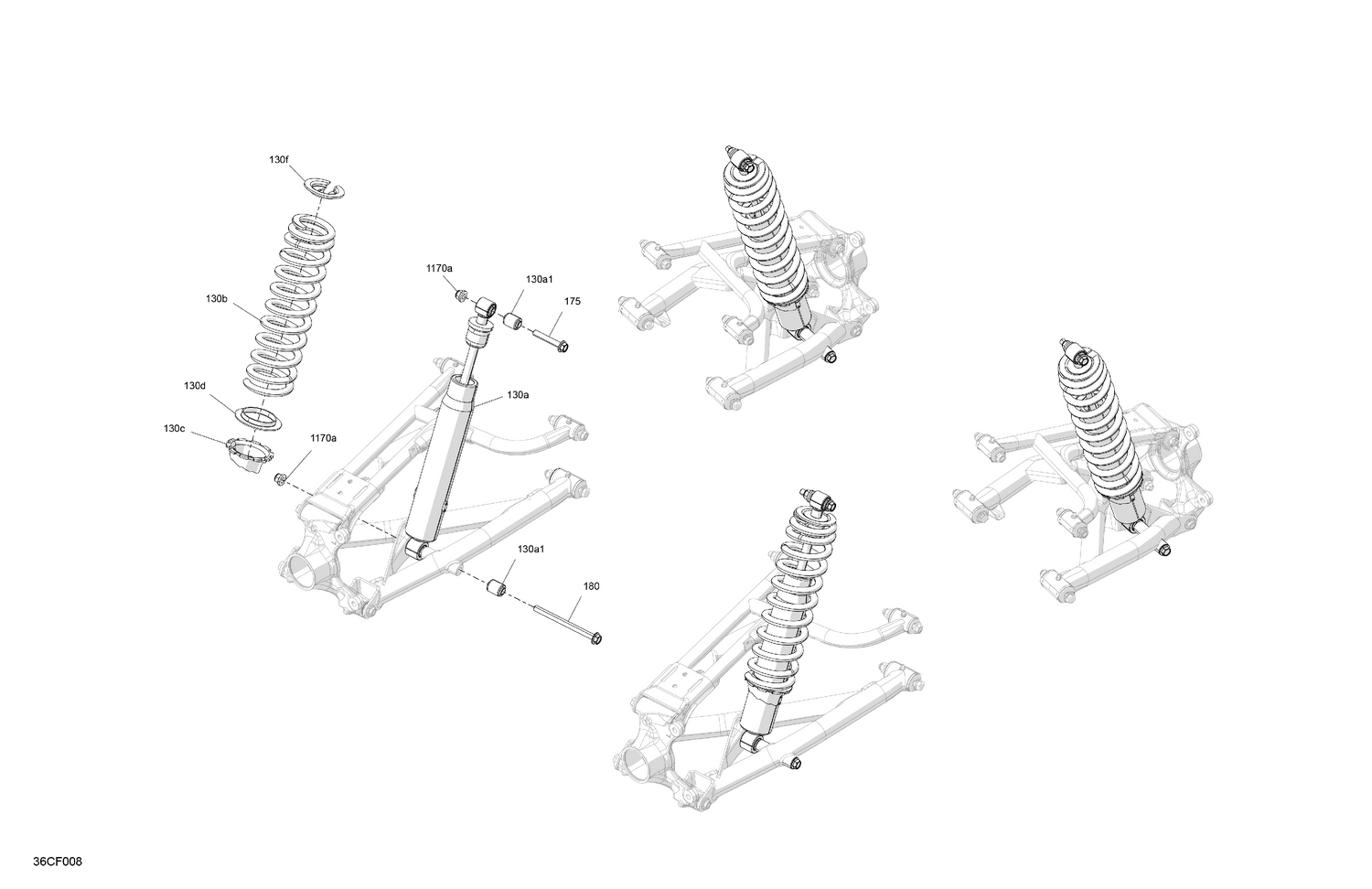

05- Suspension - Rear Shocks

Parts (7)

Ref	Part Number	Description
130a1	706003416	Suspension Arm Bushing
130b	706005074	Deep Black, Compression Spring
130c	706000910	Adjustment Ring
130d	706005387	Wear Ring
130f	706001894	Spring Cup
175	207606046	Hex. Flange Screw M10 X 6
180	230603046	Hex. Flange Screw, M10 X 130
