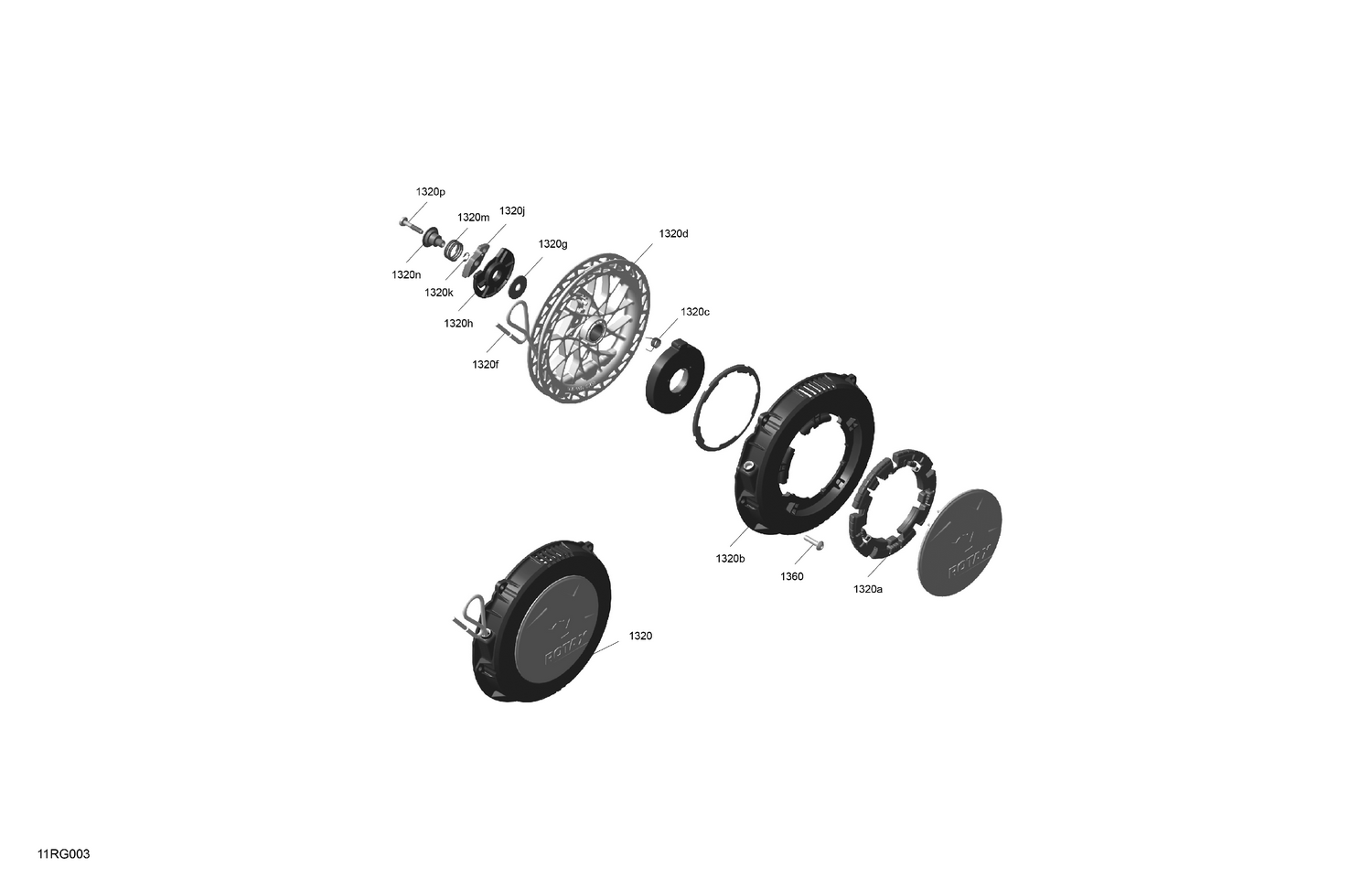

01- ROTAX - Rewind Starter
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1320a | 420201666 | SIlent Block |
| 1320b | 420912124 | Starter Housing |
| 1320c | 420638220 | Cylindrical Helical Coiled Spring |
| 1320d | 420852014 | Rope Sheave the Sleeve Ass'y |
| 1320f | 420852653 | Rope-Starter (Piece 2000 Mm) |
| 1320g | 420944480 | Thrust Washer 9.2/31/1.5 |
| 1320h | 420852527 | Lock Lever |
| 1320j | 420852528 | Pawl |
| 1320k | 420845750 | Retaining Ring |
| 1320m | 420238964 | Compression Spring DM23.25 D2.25 L16 |
| 1320n | 420847935 | Step Collar |
| 1320p | 420440503 | Torx TR Screw M6X30 |
