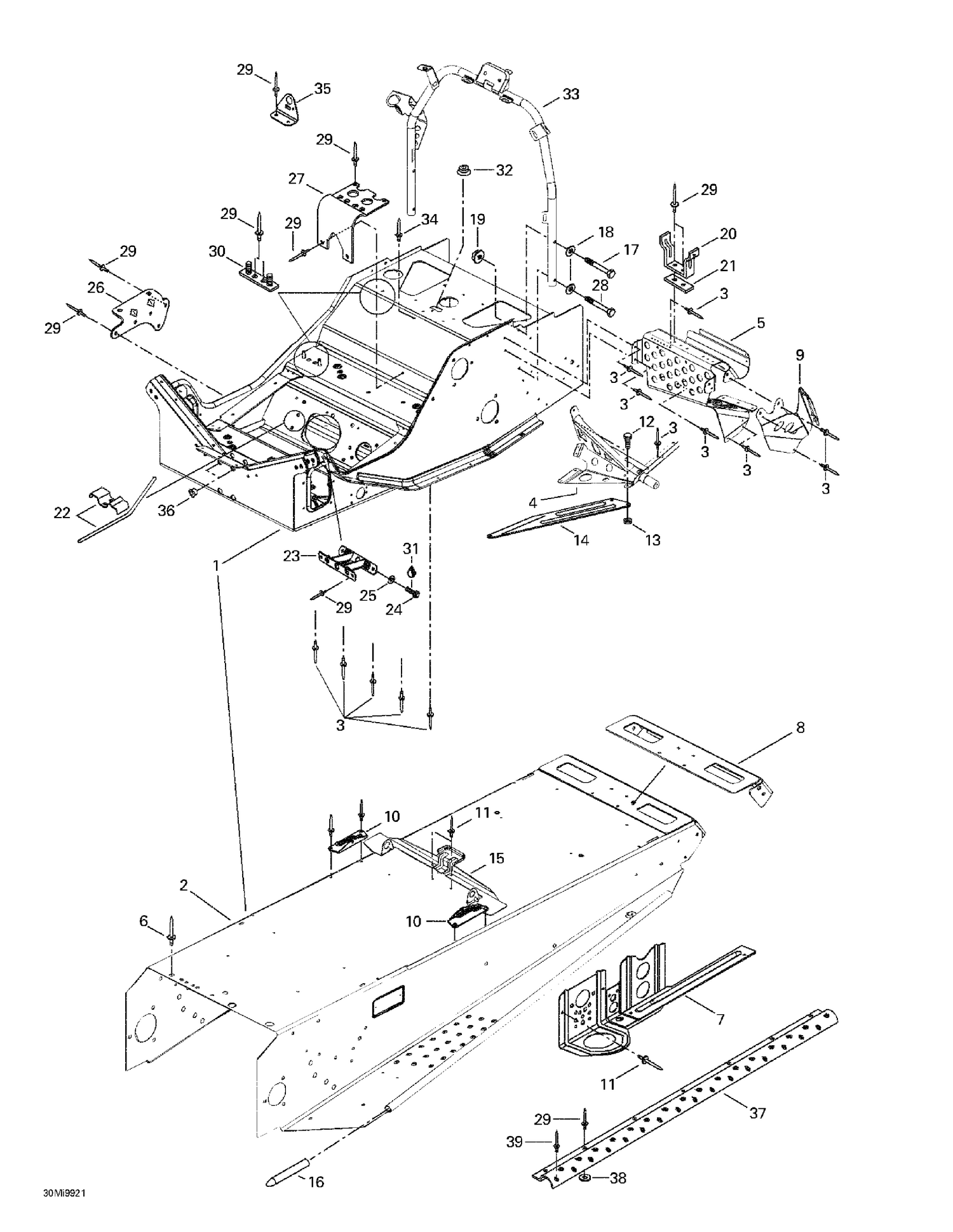

09- Frame And Accessories
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 2 | Not | Available As Spare Part - Forming Frame |
| 3 | 390402200 | Pop Rivet 3/16" |
| 4 | 518320507 | LH SOOTREST SUPPORT - Call your local BRP dealership |
| 5 | 518321417 | RH Front Footrest |
| 6 | 390911200 | Chobert Rivet |
| 7 | 518321448 | Rear Bracket L.H |
| 8 | 518321301 | Cap-End |
| 9 | 518308714 | Upper Plate L.H |
| 10 | 518304747 | RH Tank Bracket |
| 11 | 390402400 | Pop Rivet 3/16" |
| 12 | 207151644 | Hex. Screw M5 X 16 |
| 13 | 233251434 | Flange Elastic Nut M5 This part replaces 228751045. |
| 14 | 518321698 | RH Reinf. Plate |
| 15 | 518317506 | Seat Bracket |
| 16 | 518304746 | FOOTREST REINFORCEMENT - Call your local BRP dealership |
| 17 | 207063544 | Hex. Flange Screw M6 X 35 This part replaces 222063565. |
| 18 | 234061410 | Flat Washer 6 mm This part replaces 224061151. |
| 19 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 20 | 518202100 | Belt Guard Bracket |
| 21 | 518207500 | REINFORCEMENT - Call your local BRP dealership |
| 22 | 518316712 | Rope Guide |
| 23 | 518304741 | Reinf. Plate |
| 24 | 207182044 | Hex. Screw M8 X 20 |
| 25 | 234181401 | Lock Washer 8 mm This part replaces 224781140. |
| 26 | 518206300 | Muffler Support |
| 27 | 518310400 | AIR INTAKE SUPPORT - Call your local BRP dealership |
| 28 | 207064044 | Hex. Screw M6 X 40 This part replaces 222064065. |
| 29 | 390402200 | Pop Rivet 3/16" |
| 30 | 518315300 | Support Plate |
| 31 | 293800005 | Loctite 271, 10 ml |
| 32 | 414859400 | CAP - Call your local BRP dealership |
| 33 | 518321428 | Handle Steering Support |
| 34 | 390402400 | Pop Rivet 3/16" |
| 35 | 518310206 | Valve Bracket |
| 36 | 293450166 | Insert |
| 37 | 518319402 | Non-Skid Strip |
| 38 | 517124300 | Washer |
| 518304748 | LH | Tank Bracket 518304748 |
| 518308715 | Upper | Plate R.H 518308715 |
| 518320506 | RH | Footrest Support 518320506 |
| 518320506 | Support | Repose-Pied DR 518320506 |
| 518321418 | LH | Front Footrest 518321418 |
| 518321418 | Repose-Pied | Avant GA 518321418 |
| 518321447 | Rear | Bracket R.H 518321447 |
| 518321700 | LH | Reinf. Plate 518321700 |
