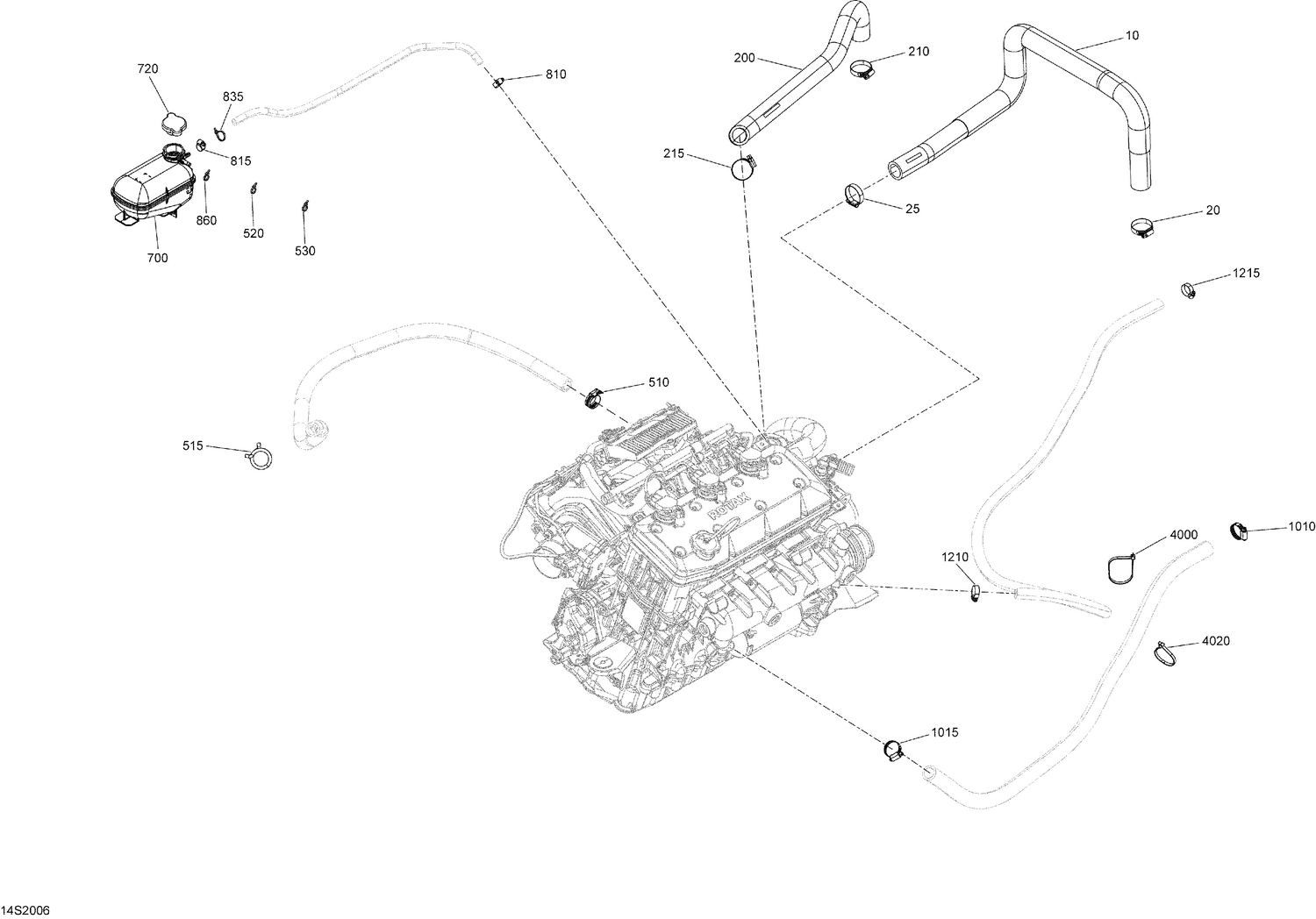

01- Cooling System
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 276000462 | Hose Riding Plate LH |
| 20 | 293650245 | Norma Clamp |
| 25 | 293650245 | Norma Clamp |
| 200 | 276000487 | Hose Riding Plate RH |
| 210 | 293650245 | Norma Clamp |
| 215 | 293650245 | Norma Clamp |
| 510 | 293650019 | Tridon Gear Clamp |
| 515 | 293650115 | Spring Clamp |
| 520 | 293750001 | Tie Wrap 94 mm |
| 530 | 293750001 | Tie Wrap 94 mm |
| 700 | 276000419 | Coolant Tank |
| 720 | 276000100 | Pressure Cap |
| 810 | 293650170 | Tridon Gear Clamp |
| 815 | 293650170 | Tridon Gear Clamp |
| 835 | 414115200 | Tie-Rap 180 mm |
| 860 | 293750001 | Tie Wrap 94 mm |
| 1010 | 293650051 | Tridon Gear Clamp |
| 1015 | 293650051 | Tridon Gear Clamp |
| 1210 | 293650172 | Tridon Gear Clamp |
| 1215 | 293650172 | Tridon Gear Clamp |
| 4000 | 293750008 | Tie Wrap 368 mm |
