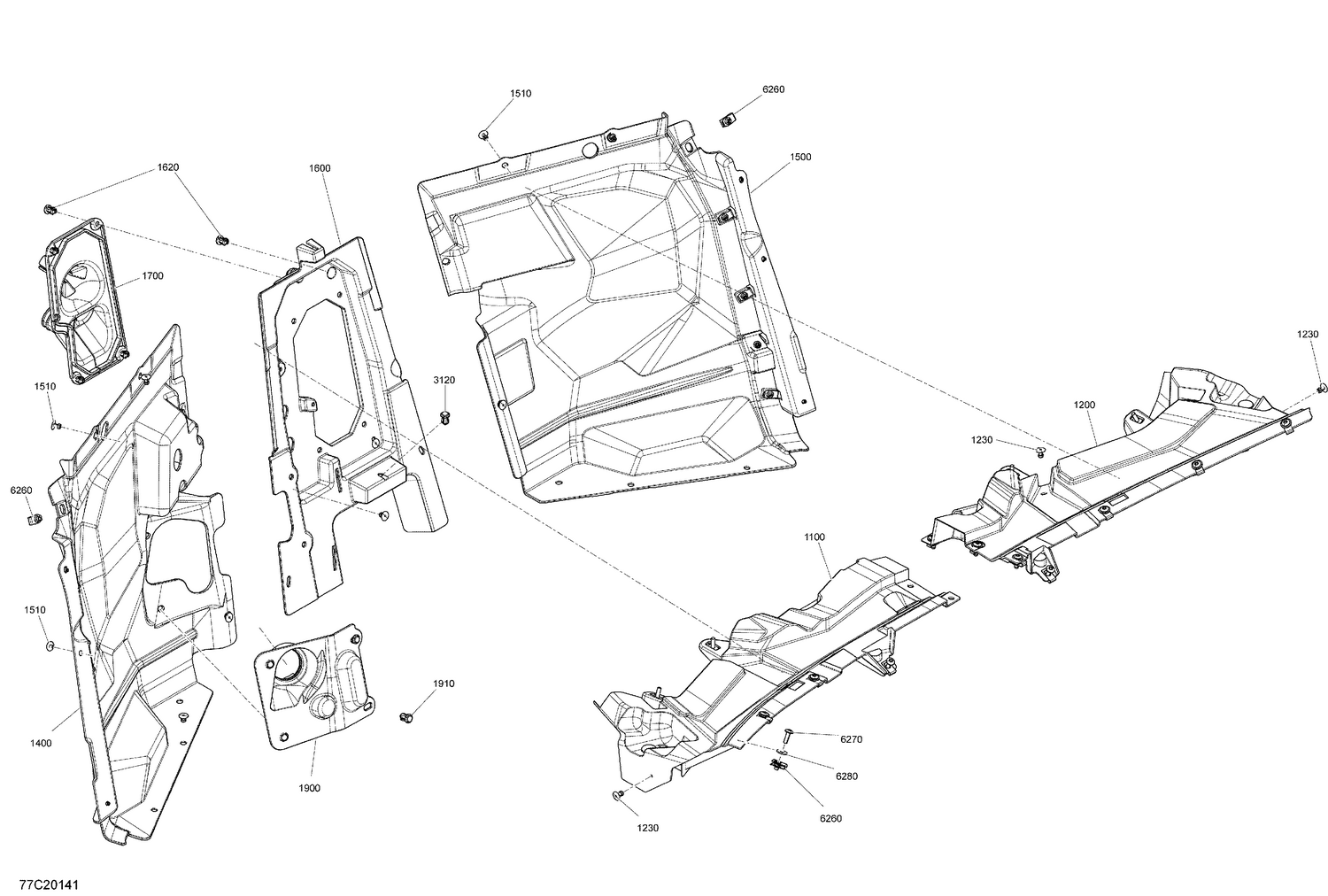

09- Cab Interior - Fire Wall Section
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1100 | 707900337 | LH Front Upper Deflector |
| 1200 | 707900338 | RH Front Upper Deflector |
| 1230 | 293150104 | Pop Rivet 3/16" |
| 1400 | 707901349 | Front Seperation Panel This part replaces 707900341. |
| 1500 | 707900931 | RH Front Bulkhead This part replaces 707900342. |
| 1510 | 293150104 | Pop Rivet 3/16" |
| 1600 | 707900407 | Front Bulkhead Panel |
| 1620 | 293150230 | Tuflok Plastic Rivet |
| 1700 | 707900701 | Grommet |
| 1900 | 707900754 | Steering Column Cover |
| 1910 | 293150230 | Tuflok Plastic Rivet |
| 3120 | 293150230 | Tuflok Plastic Rivet |
| 6260 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 6270 | 250000722 | Torx Screw M6 X 20 |
