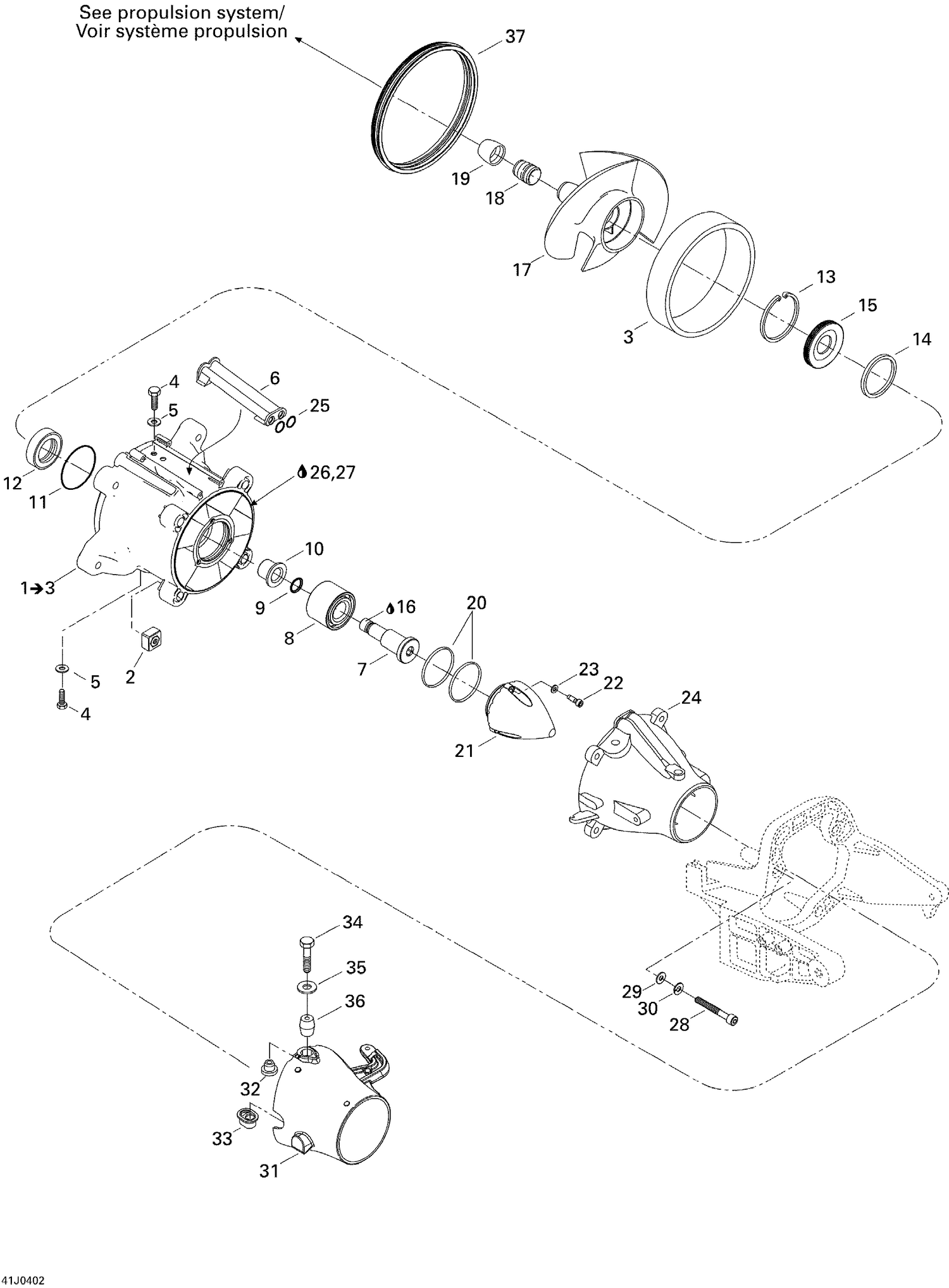

05- Pump
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 211100033 | Square Nut M8 |
| 3 | 267000419 | Wear Ring This part replaces 267000021. |
| 4 | 250000040 | Hex. Plastite Screw #10 X 3/8" |
| 5 | 234051600 | Flat Washer M5, Stainless |
| 6 | 271000785 | Water Outlet |
| 7 | 267000054 | Impeller Shaft |
| 8 | 267000900 | Angled Bearing This part replaces 267000030. |
| 9 | 505070315 | O-Ring |
| 10 | 267000318 | Shaft Sleeve This part replaces 267000048. |
| 11 | 293300090 | O-Ring |
| 12 | 271002071 | Seal This part replaces 293200086. |
| 13 | 293370038 | Circlip |
| 14 | 271001393 | Spacer |
| 15 | 293200089 | Oil Seal |
| 16 | 219704461 | LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 17 | 267000673 | Impeller Assy This part replaces 271001386. |
| 18 | 271001152 | IMPELLER BOOT - Call your local BRP dealership |
| 19 | 271001153 | IMPELLER RING - Call your local BRP dealership |
| 20 | 293300086 | O-Ring |
| 21 | 267000262 | Impeller Cover This part replaces 267000055. |
| 22 | 205562060 | Socket Head Screw M6 X 20, Scotch Grip |
| 23 | 234061600 | Stainless Flat Washer M6 |
| 24 | 204160302 | Black, Venturi - Call your local BRP dealership This part replaces 271001485. |
| 25 | 293300013 | O-Ring |
| 26 | 219704458 | Was 293800041 Loctite Primer 7649 |
| 28 | 231182060 | SOCKET HEAD SCREW M8 X 120, SCOTCHGRIP - Call your local BRP dealership |
| 29 | 234081600 | Stainless, Flat Washer 8 mm |
| 30 | 234181601 | Lock Washer 8 mm, Stainless |
| 31 | 271001479 | Steering Nozzle |
| 32 | 293900001 | Venturi Bushing |
| 33 | 293900010 | Plastic Bushing |
| 34 | 211000047 | SCREW-SPECIAL M8 - Call your local BRP dealership |
| 35 | 293050001 | Flat Washer M8.5 x 18 |
| 36 | 271001816 | Sleeve This part replaces 271000122. |
