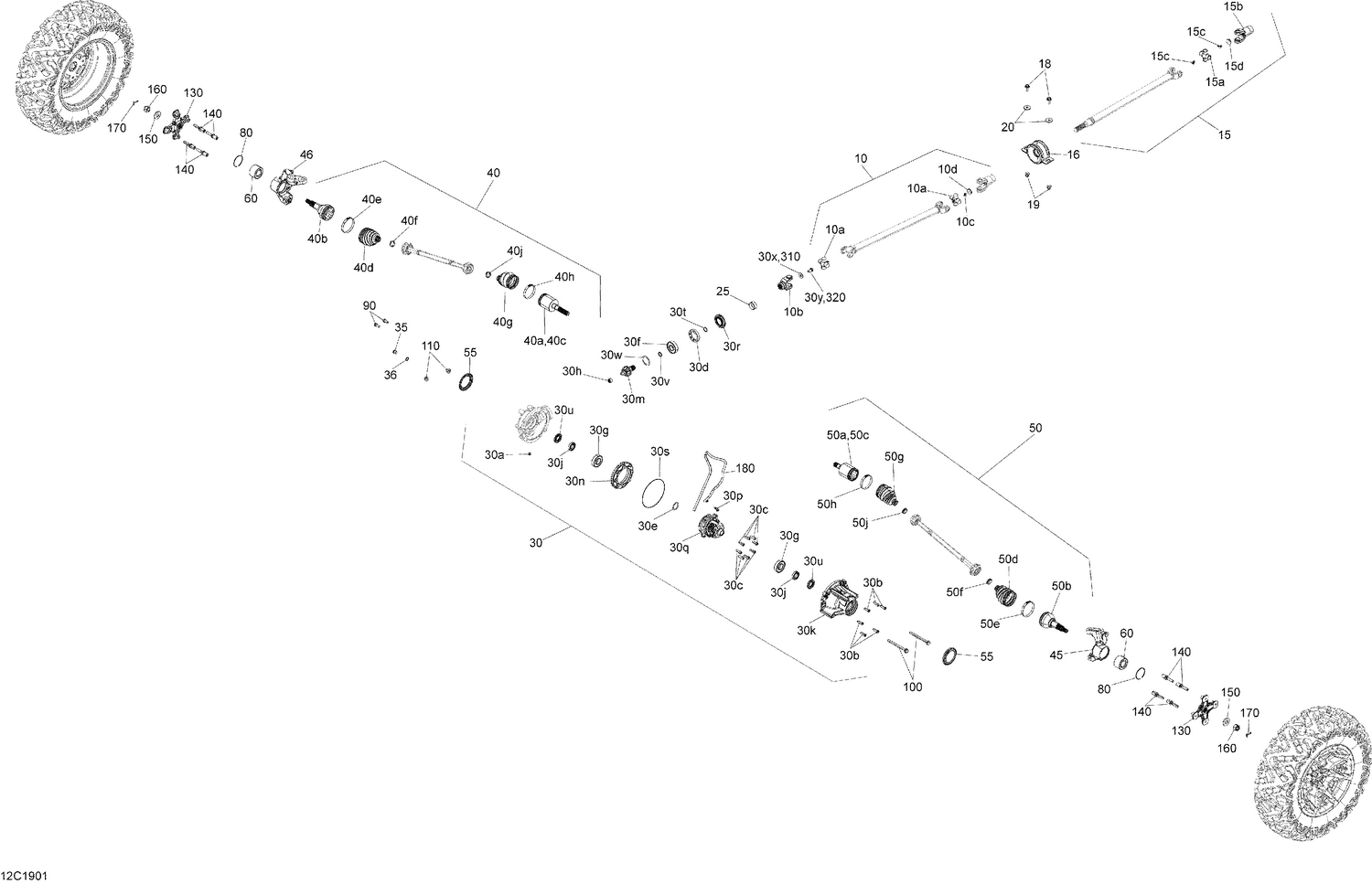

07- Front Drive
Parts (66)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 715900435 | U-Joint Cross Kit |
| 10b | 715900231 | Yoke Joint |
| 10c | 703500815 | Grease Fitting |
| 10d | 715900483 | Cover |
| 10e | 715900497 | Fixed Yoke Joint |
| 15a | 715900435 | U-Joint Cross Kit |
| 15b | 715900231 | Yoke Joint |
| 15c | 703500815 | Grease Fitting |
| 15d | 715900483 | Cover |
| 16 | 705401646 | Ball Bearing |
| 18 | 207602544 | Hex. Flange Screw M10 X 25 |
| 19 | 233201414 | Hex. Flange Elastic Nut M10 |
| 20 | 503032900 | Washer |
| 30a | 705501885 | Drain Plug |
| 30b | 705401601 | Screw |
| 30c | 705401602 | Screw |
| 30d | 705401603 | Nut |
| 30e | 705401604 | Shim |
| 30f | 705401605 | Ball Bearing |
| 30g | 705401606 | Ball Bearing |
| 30h | 705402848 | Ball Bearing This part replaces 705401607. |
| 30j | 705401608 | Ball Bearing |
| 30k | 705401792 | Front Pinion Cover |
| 30m | 705401610 | Front Cover |
| 30n | 705402841 | Pinion 10 Teeth This part replaces 705401791. |
| 30p | 705401612 | Gear 36 Teeth |
| 30q | 705401613 | Vent Valve |
| 30r | 705402182 | Differential |
| 30s | 705401615 | Oil Seal |
| 30t | 705401616 | Seal |
| 30u | 705401617 | O'Ring |
| 30v | 705401618 | Gasket |
| 30w | 705401769 | Shim |
| 30x | 705401770 | Shim |
| 30y | 250001046 | Hex Flange Screw M10 X 20 S.Grip This part replaces 250000847. |
| 35 | 705500504 | Fill Level Plug |
| 36 | 705500506 | Copper Washer |
| 40a | 715900431 | RH Plunging Joint |
| 40b | 715900427 | CV Joint |
| 40c | 705401349 | Circlip Joint |
| 40e | 715900282 | Oetiker Clamp |
| 40f | 715900283 | Oetiker Clamp, Small |
| 40h | 715900284 | Oetiker Clamp, Large |
| 40j | 715900261 | Oetiker Clamp, Small |
| 45 | 705401548 | LH Front Knuckle |
| 46 | 705401549 | RH Front Knuckle |
| 50a | 715900430 | LH Plunging Joint |
| 50b | 715900427 | CV Joint |
| 50c | 705401349 | Circlip Joint |
| 50e | 715900282 | Oetiker Clamp |
| 50f | 715900283 | Oetiker Clamp, Small |
| 50h | 715900284 | Oetiker Clamp, Large |
| 50j | 715900261 | Oetiker Clamp, Small |
| 55 | 705400780 | Wear Sleeve |
| 60 | 293350150 | Ball Bearing This part replaces 293350118. |
| 80 | 293370019 | Circlip |
| 90 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 100 | 230602546 | Hex. Flange Screw M10 X 125 |
| 110 | 233201436 | Hex. Flange Elastic Nut M10 |
| 130 | 705501900 | Wheel Hub |
| 140 | 250300060 | Wheel Stud |
| 150 | 250200171 | Conical Spring Washer M18 |
| 160 | 232291413 | Hex. Flange Castellated Nut M18 This part replaces 250100047. |
| 170 | 250400071 | Cotter Pin |
| 180 | 219704389 | Polyurethane Hose 4000MM Long |
| 310 | 250200014 | Flat Washer M10 |
