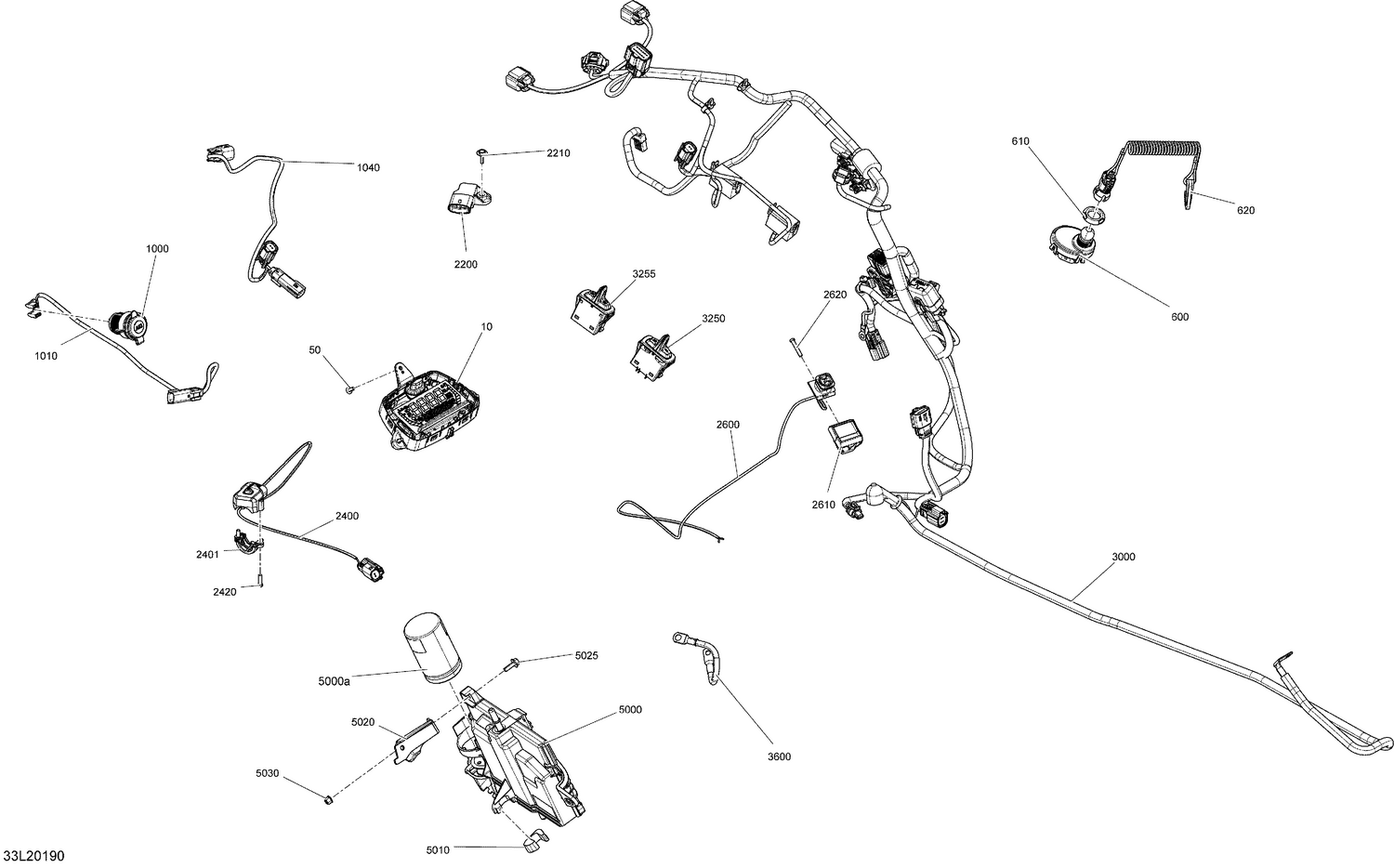

10- Electric - System
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 515178835 | Indicator |
| 50 | 250000577 | Torx Truss Screw K40 X 12 |
| 600 | 515178840 | Terminal Dess One-Wire This part replaces 515178225. |
| 610 | 278002963 | Safety Nut (DESS Switch) |
| 620 | 515178288 | Key |
| 1000 | 710001248 | Pistoke, virran ulosotto |
| 1010 | 515178190 | Harness |
| 1040 | 515178153 | Extension Harness |
| 2200 | 707000995 | Pressure And Temperature Sensor |
| 2210 | 250000725 | Screw M4 X 16 |
| 2400 | 515178857 | Ignition Switch This part replaces 515178381. |
| 2401 | 515177952 | Clamp |
| 2420 | 250000671 | Torx Screw |
| 2600 | 515177931 | Emergency Stop Switch |
| 2610 | 515177310 | Emergency Stop Switch Support |
| 2620 | 250000263 | Torx Screw #8-18 |
| 3000 | 515178550 | Chassis Wiring Harness |
| 3250 | 515178462 | Switch Rocker Hand Warmer |
| 3255 | 515178463 | Switch Rocker Headlignt |
| 3600 | 515178248 | Ground Wire |
| 5000a | 515177272 | Capacitor |
| 5010 | 515178430 | Rubber Stopper |
| 5020 | 515178159 | Module Support |
| 5025 | 207651646 | Hex. Flange Screw M5 X 16 |
