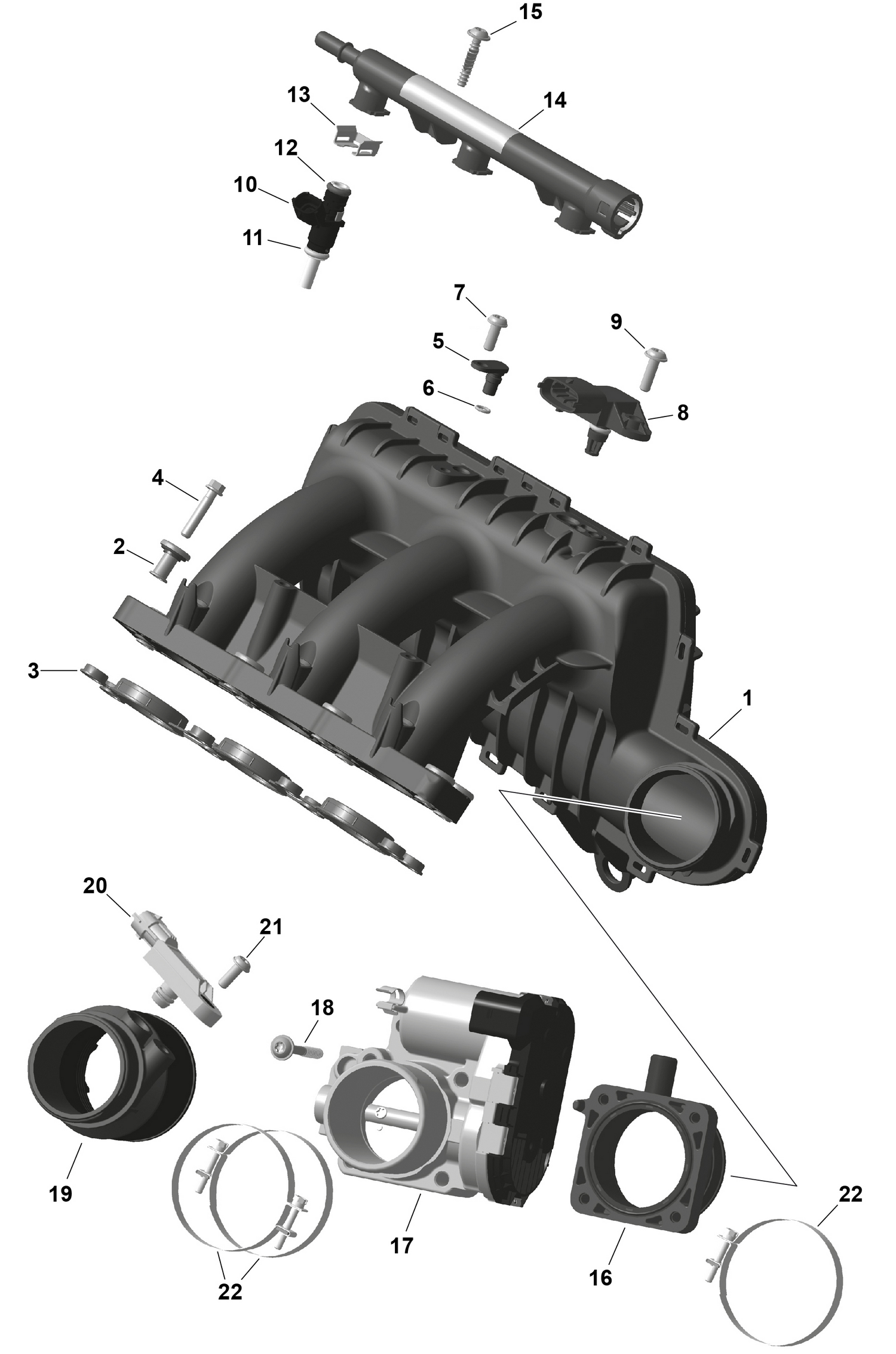

01- ROTAX - Air Intake Manifold And Throttle Body
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420629175 | Distance Sleeve |
| 4 | 420440647 | Torx Flange Screw M6 X 30 |
| 5 | 420201052 | Plug |
| 7 | 420641588 | Torx Flange Screw M6 X 16 |
| 8 | 420874651 | Pressure And Temperature Sensor |
| 9 | 420841103 | Torx Flange Screw M6 X 20 |
| 13 | 420853030 | Injector Clip |
| 14 | 420874967 | Fuel Rail |
| 15 | 420441575 | Torx Screw 6X30 |
| 16 | 420267216 | Intake Neck This part replaces 420867116. |
| 17 | 420893149 | Throttle Body |
| 18 | 420441588 | Torx Flange Screw M6 X 50 |
| 19 | 420867555 | Connecting Socket |
| 20 | 420274052 | Pressure Sensor |
| 21 | 420841103 | Torx Flange Screw M6 X 20 |
