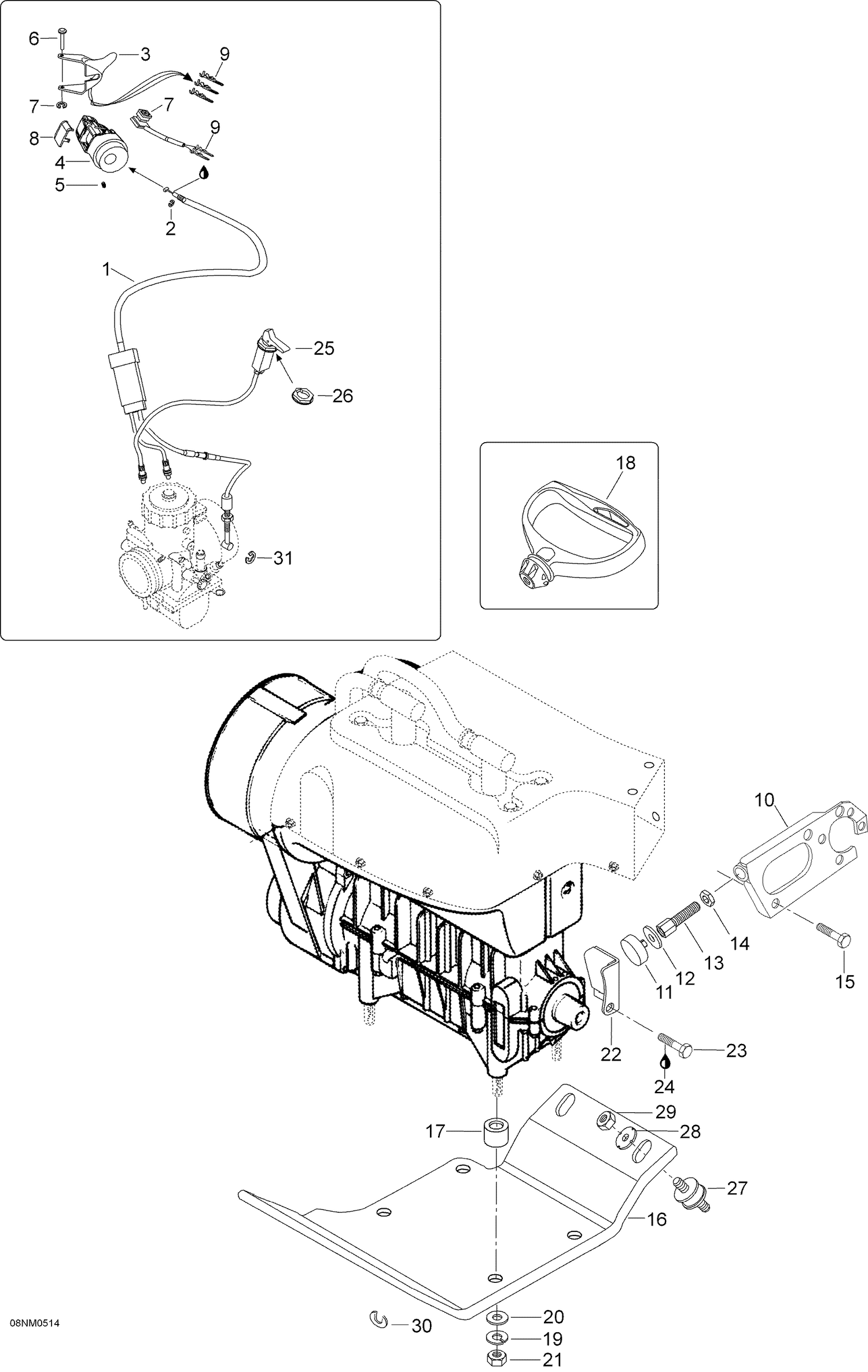

| Ref | Part Number | Description |
|---|
| 1 |
5145673 |
Throttle cable |
| 2 |
31038 |
Circlip 5 DIN 6799(1=10pcs) - Call your local BRP dealership |
| 3 |
512060214 |
Handle Assy This part replaces 512059144. |
| 4 |
572100900 |
Throttle handle housing |
| 5 |
414438700 |
Kiinnitystappi |
| 6 |
414439000 |
Circlip |
| 7 |
515175410 |
Sammutuskatkaisin |
| 8 |
572100901 |
Katkaisin suoja |
| 9 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces 42603. |
| 10 |
605350127 |
PLATE SUPPORT - Call your local BRP dealership |
| 11 |
512059710 |
STOPPER - Call your local BRP dealership |
| 12 |
20028 |
Korialuslevy 10.5 |
| 13 |
512058800 |
STOPPER SCREW - Call your local BRP dealership |
| 14 |
33218 |
Lukitusmutteri, oikeankät. M12 |
| 15 |
40327 |
Self tapping screw M6 x 12 |
| 16 |
5246291 |
Engine mount.plate |
| 17 |
5441582 |
Korotusholkki |
| 18 |
572084400 |
Käynnistinkahva |
| 19 |
20047 |
Shim B10 DIN127 -St Zne(1=10pcs) - Call your local BRP dealership |
| 20 |
20105 |
Aluslevy M10, karkaistu |
| 21 |
232006414 |
Hex. Nut M10 This part replaces 33004. |
| 22 |
5344446 |
PLATE-STOP.WELD - Call your local BRP dealership |
| 23 |
40035 |
Hex. screw M8 x 16 |
| 24 |
293800060 |
Liima Loctite 243, 10ml |
| 26 |
512059364 |
NUT-PLASTIC - Call your local BRP dealership This part replaces 414977200. |
| 27 |
570127700 |
RUBBER MOUNT - Call your local BRP dealership |
| 28 |
512056700 |
Aluslevy, karkaistu M10 |
| 29 |
33012 |
Laippalukkomutteri M10 |
| 30 |
546221 |
Justeringbricka |
