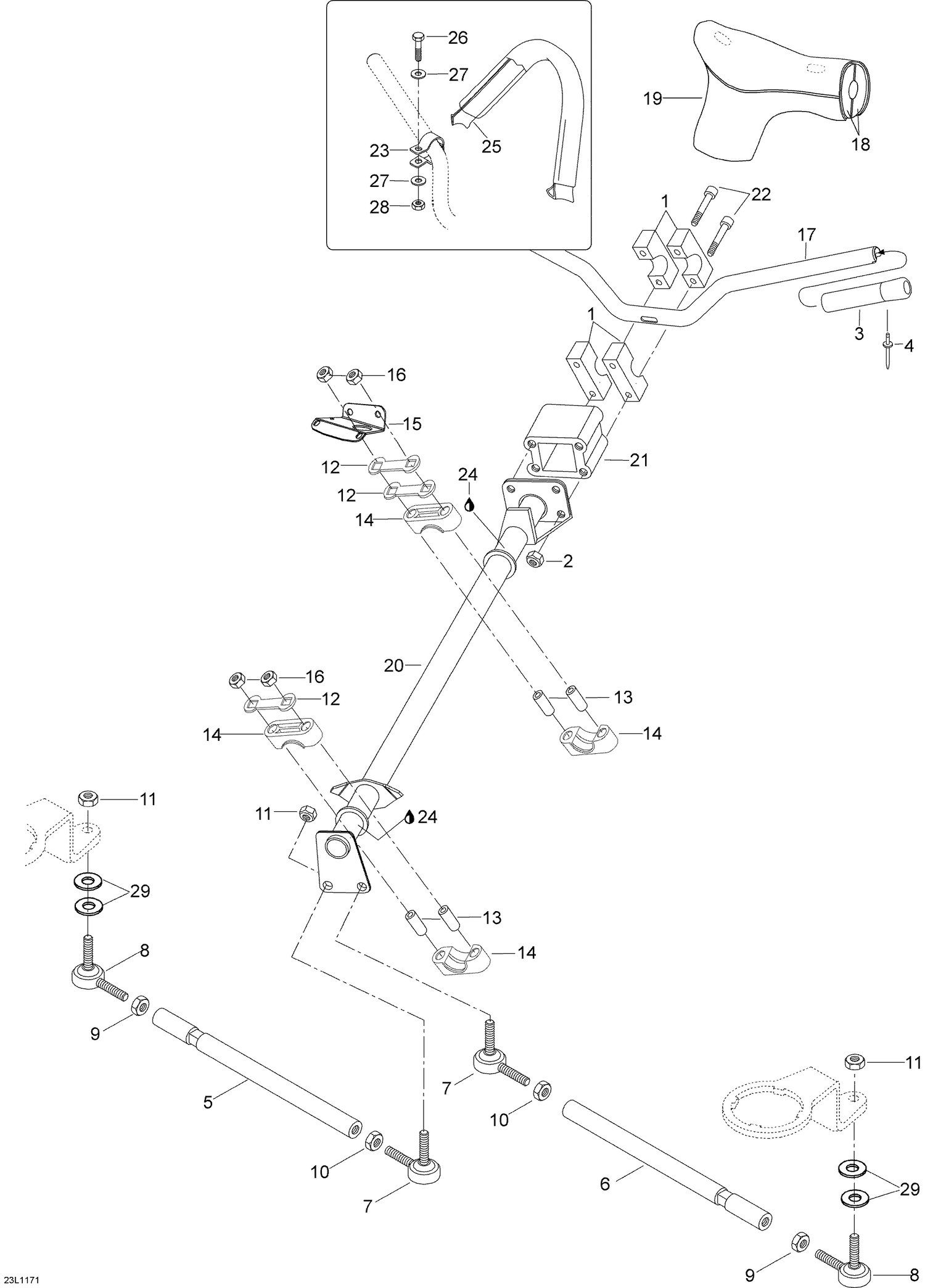

| Ref | Part Number | Description |
|---|
| 1 |
548448 |
Support of Bar - Call your local BRP dealership |
| 2 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 3 |
5340464 |
Grip |
| 4 |
36005 |
Rivet |
| 5 |
605455619 |
ROD_LINK - Call your local BRP dealership |
| 6 |
605455620 |
ROD_LINK - Call your local BRP dealership |
| 7 |
506151845 |
LH JOINT BALL - Call your local BRP dealership |
| 8 |
506151492 |
RH BALL JOINT - Call your local BRP dealership |
| 9 |
33019 |
Nut R.H. |
| 10 |
33017 |
Nut M10x1.25VASDIN934 m8 ZNe(1=10pcs) - Call your local BRP dealership |
| 11 |
33023 |
Elastic stop nut M10 |
| 12 |
506150600 |
Stopper Plate |
| 13 |
506150500 |
Housing Bushing |
| 14 |
506150400 |
Housing Half |
| 15 |
605352322 |
CONSOLE HOLDER - Call your local BRP dealership |
| 16 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 17 |
605251368 |
HANDLE BAR - Call your local BRP dealership |
| 18 |
605252110 |
FOAM, FRONT - Call your local BRP dealership |
| 18 |
605252111 |
FOAM, REAR - Call your local BRP dealership |
| 19 |
605254571 |
STEERING COVER - Call your local BRP dealership |
| 20 |
605255608 |
MAIN TUBE - Call your local BRP dealership |
| 21 |
605349584 |
EXTENSION - Call your local BRP dealership |
| 22 |
40124 |
Socket head screw M8 x 100 |
| 23 |
506152536 |
Black Support Plate This part replaces 506151792. |
| 24 |
293550033 |
SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| 25 |
506152115 |
Strap Ass'y |
| 26 |
40031 |
Hex. screw M6 x 25 |
| 27 |
20003 |
Washer |
| 28 |
33010 |
Lock Nut M6 (1=10Pcs) |
