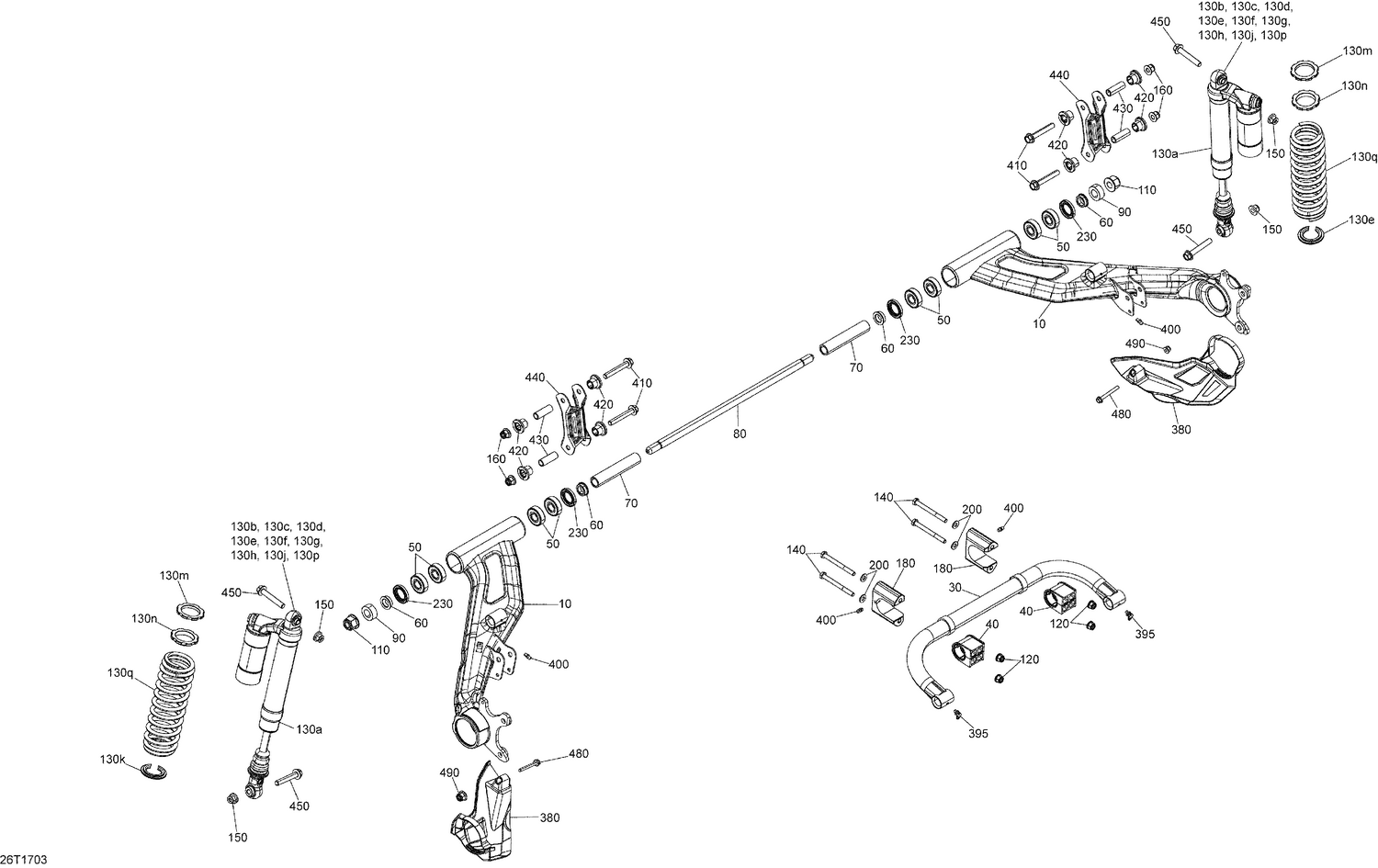

08- Rear Suspension - All Models
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 30 | 706000988 | Swaybar |
| 40 | 706004640 | Stabilizer Bar Bushing This part replaces 706002246. |
| 50 | 293350145 | Ball Bearing This part replaces 706000826. |
| 60 | 706001282 | Spacer |
| 70 | 706002259 | Spacer |
| 80 | 706001664 | Axial Pivot M16 |
| 90 | 250200112 | Flat Washer M17 |
| 110 | 233211466 | Hex. Flange Elastic Nut M16 |
| 120 | 233281434 | Hex. Flange Elastic Nut M8 |
| 140 | 250001035 | Hex. Screw M8 X 85 This part replaces 207088587. |
| 150 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 160 | 233201414 | Hex. Flange Elastic Nut M10 |
| 180 | 706001099 | Bushing Holder |
| 200 | 234081430 | Flat Washer M8 |
| 230 | 293200144 | Seal |
| 380 | 706002482 | LH Protector |
| 380 | 706002483 | RH Protector |
| 395 | 293550056 | Grease Fitting 90° |
| 400 | 250000315 | Grease Fitting |
| 410 | 207606536 | Hex. Flange Screw M10 X 65 |
| 420 | 706200181 | Bushing |
| 430 | 706201587 | Sleeve |
| 440 | 706001020 | Sway Bar Linkage |
| 450 | 207606046 | Hex. Flange Screw M10 X 6 |
| 480 | 250000712 | Torx Screw M6 X 20 |
