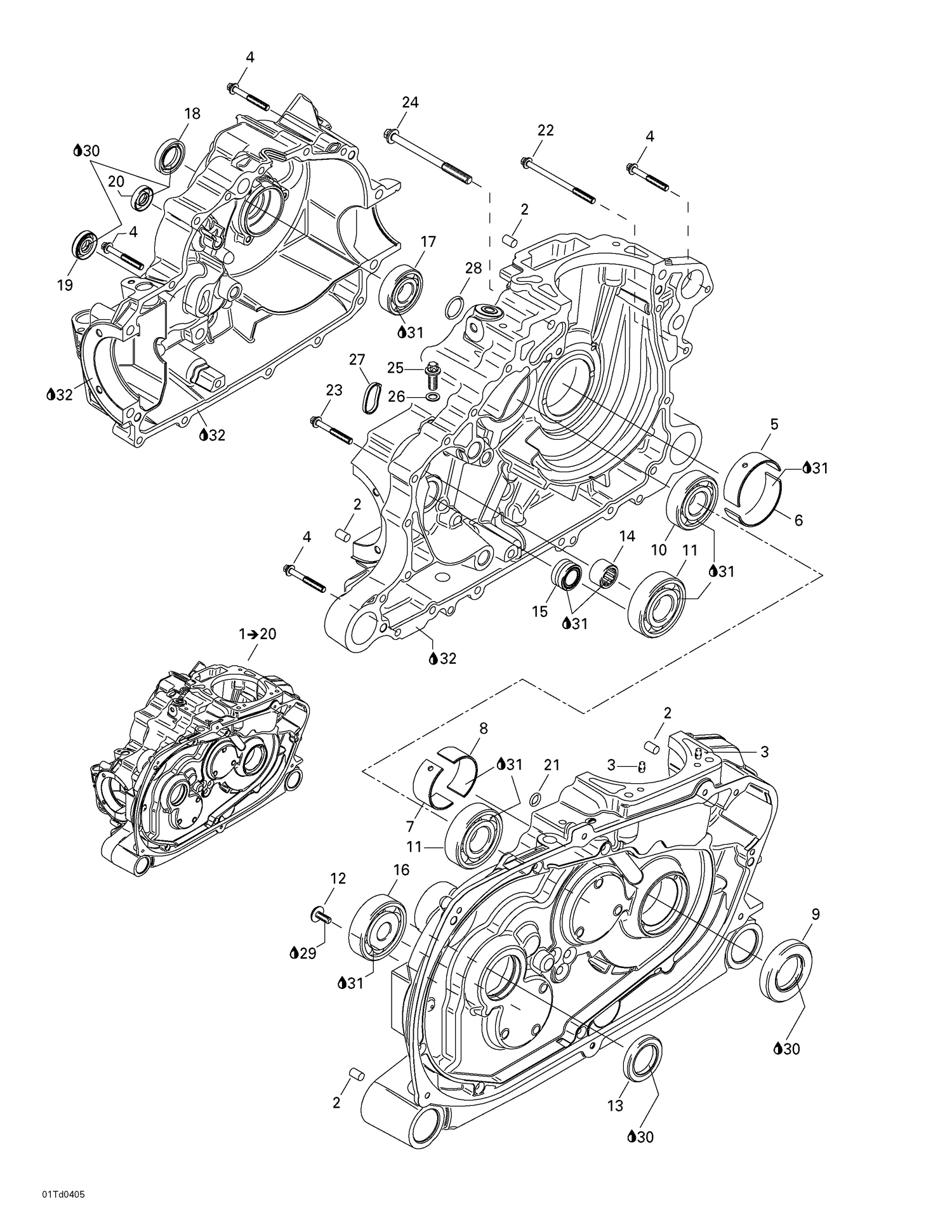

| Ref | Part Number | Description |
|---|
| 2 |
420632010 |
Center Pin 8 X 12 |
| 3 |
420929650 |
Drive Pin 5 X 10 |
| 4 |
420440324 |
Torx Flange Screw M6 X 45 This part replaces 420440322. |
| 5 |
420933492 |
BEARING SLEEVE - Call your local BRP dealership |
| 6 |
420933495 |
Bushing_Half - Call your local BRP dealership |
| 7 |
420233740 |
HALF BUSHING - Call your local BRP dealership |
| 8 |
420233745 |
HALF BUSHING - Call your local BRP dealership |
| 9 |
420630152 |
Oil Seal |
| 10 |
420632200 |
BALL BEARING 63/22 - Call your local BRP dealership |
| 11 |
420932822 |
Ball Bearing This part replaces 420932825. |
| 12 |
420241522 |
Torx Screw M6 X 16 This part replaces 420241526. |
| 13 |
420950089 |
Oil Seal This part replaces 420950087. |
| 14 |
420832240 |
Needle Bushing |
| 15 |
420232085 |
Needle Bushing |
| 16 |
420632295 |
Ball Bearing This part replaces 420632290. |
| 17 |
420932433 |
Ball Bearing 6204 This part replaces 420932432. |
| 18 |
420930392 |
Oil Seal |
| 19 |
420650315 |
Oil Seal This part replaces 420650310. |
| 20 |
420250450 |
Oil Seal |
| 21 |
420850900 |
O-Ring |
| 22 |
420641228 |
Torx Flange Screw M6 X 85 This part replaces 420440342. |
| 23 |
420440324 |
Torx Flange Screw M6 X 45 This part replaces 420440322. |
| 24 |
420440412 |
Torx Flange Screw M8 X 90 |
| 25 |
420440372 |
Torx Flange Screw M8 X 25 |
| 26 |
420950141 |
Sealing Ring |
| 27 |
420630180 |
GASKET - Call your local BRP dealership |
| 28 |
420950180 |
O-RING - Call your local BRP dealership |
| 29 |
293800060 |
Loctite 243, 10 ml |
| 30 |
293550030 |
Grease, Super Lube |
