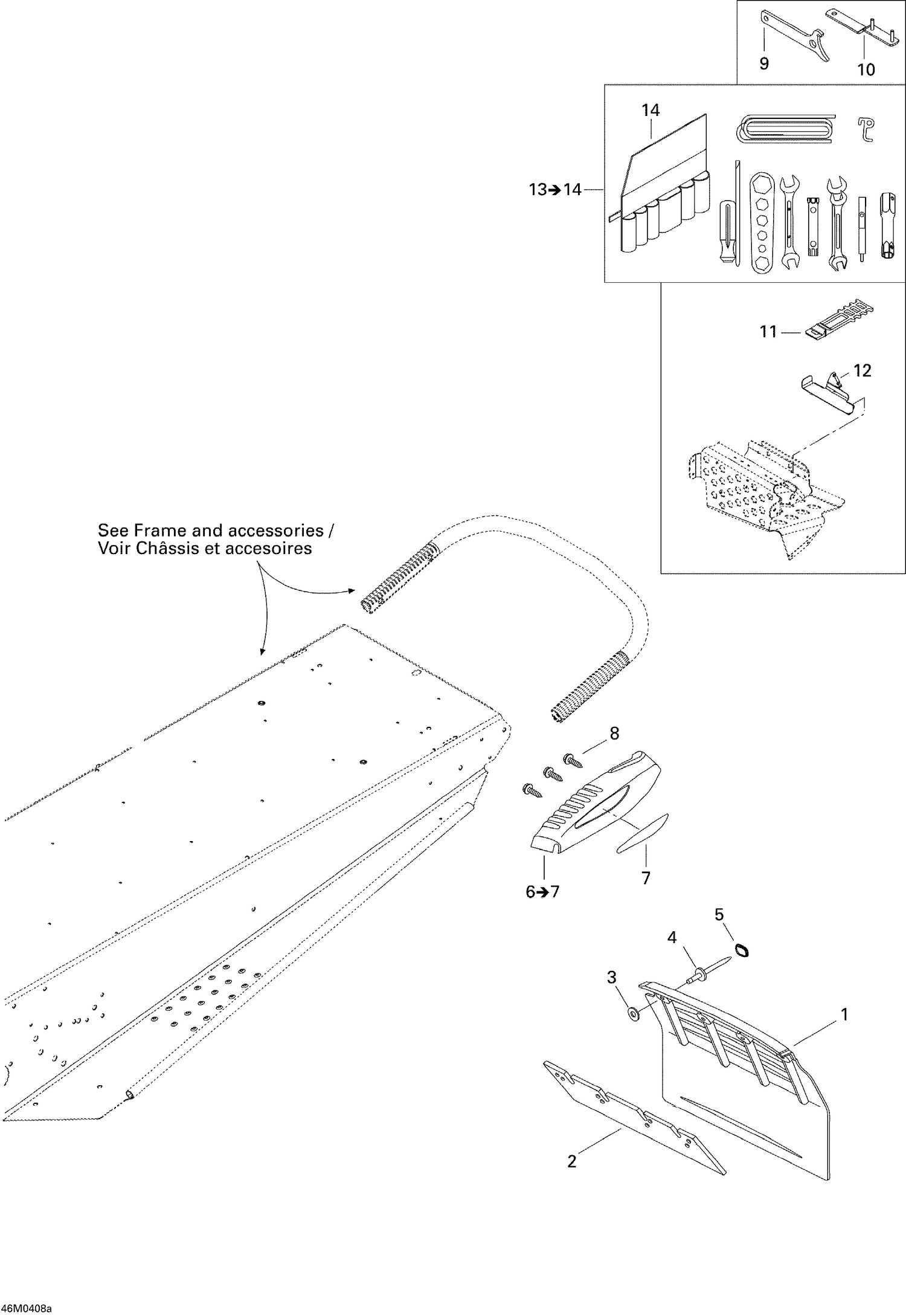

| Ref | Part Number | Description |
|---|
| 1 |
520000223 |
Snow Guard, Canada/Us |
| 2 |
572108200 |
REINFORCEMENT - Call your local BRP dealership |
| 3 |
517225900 |
Flat Washer |
| 4 |
293150087 |
Pop Rivet 3/16” This part replaces 293150087. |
| 5 |
415073300 |
Cap |
| 7 |
516000237 |
RH Reflector, Red |
| 8 |
243141630 |
Hex. Plastic Screw M4.8 X 16 This part replaces 243141640. |
| 9 |
529000035 |
Adjustment Wrench This part replaces 529032900. |
| 10 |
520000126 |
Adjustment Wrench |
| 11 |
570069700 |
LATCH - Call your local BRP dealership |
| 12 |
518321999 |
Tool Kit Support |
| 516000238 |
LH |
Reflector, Red 516000238 |
| 516000238 |
Réflecteur |
GA, Rouge 516000238 |
| 861777800 |
LH |
Moulding Kit 861777800 |
