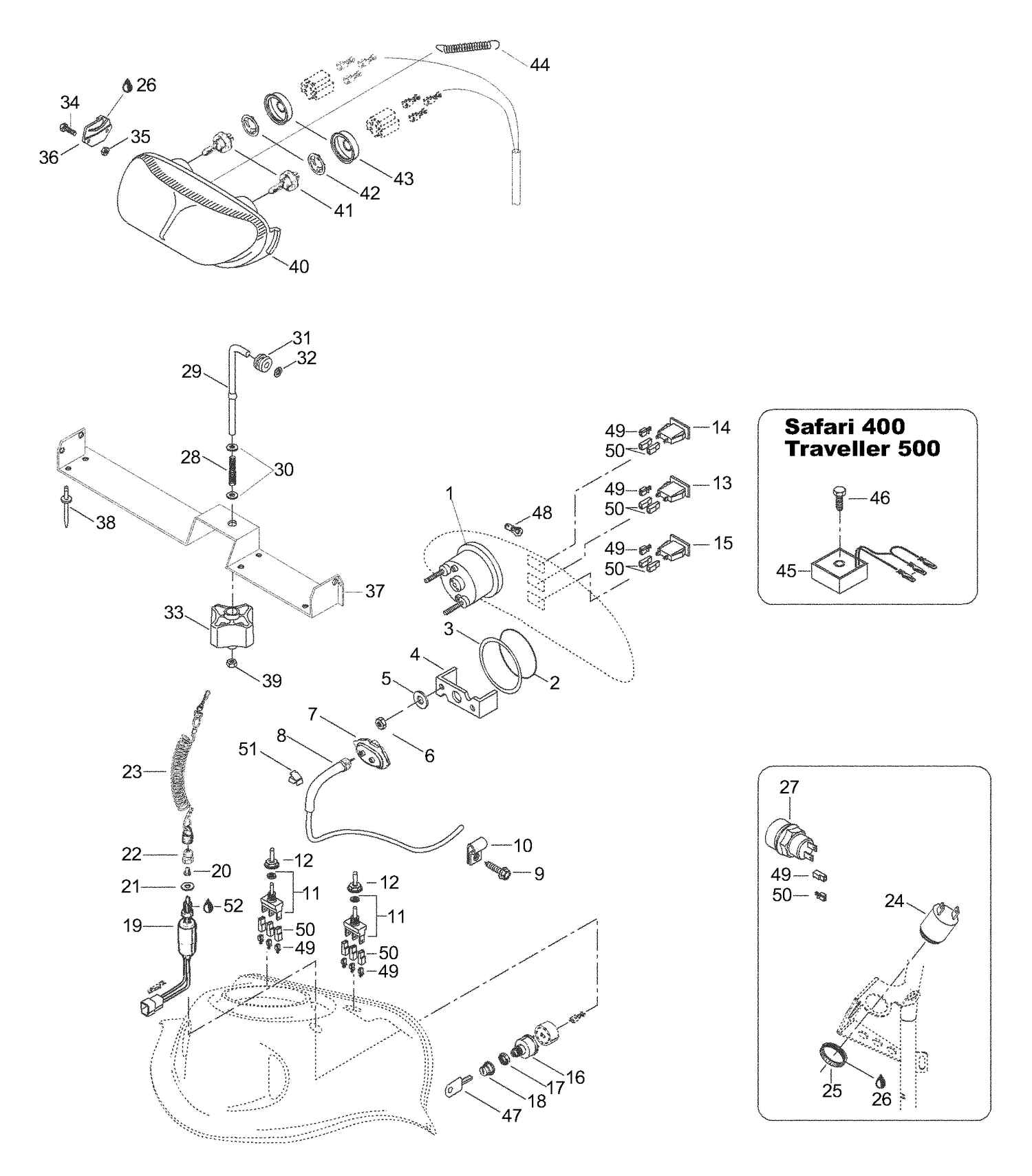

10- Electric
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 515175335 | Speedometer assy |
| 2 | 414807100 | O-ring |
| 3 | 517258500 | Washer |
| 4 | 414806500 | Housing support |
| 5 | 20002 | Washer |
| 6 | 33009 | Nut elastic M5 |
| 7 | 515175400 | Drive Angle |
| 8 | 414761400 | Speedometer cable |
| 9 | 40870 | HEX. TAPING SCREW - Call your local BRP dealership |
| 10 | 414176000 | Clip |
| 11 | 410107300 | Switch |
| 12 | 515175281 | Switch cover |
| 13 | 410109500 | Pilot lamp, red |
| 14 | 410109600 | Pilot lamp, blue |
| 15 | 410113400 | PILOT LAMP, ELECTRIC REVERSE - Call your local BRP dealership |
| 16 | 42019 | Ignition switch |
| 17 | 410112100 | FACE NUT - Call your local BRP dealership |
| 18 | 570013700 | Switch boot |
| 19 | 515175653 | Brake Switch This part replaces 515175369. |
| 20 | 570151100 | Plunger Cap |
| 21 | 20005 | WASHER M10 - Call your local BRP dealership |
| 22 | 515145900 | Switch Nut |
| 23 | 515178283 | Cap Ass'y This part replaces 515151500. |
| 24 | 515176035 | HORN - Call your local BRP dealership This part replaces 415060900. |
| 25 | 414805101 | PLASTIC NUT - Call your local BRP dealership |
| 26 | 293800033 | Silicone sealant |
| 27 | 415130372 | Push Button This part replaces 415101200. |
| 28 | 25042 | Spring |
| 29 | 5445735 | Grip of Head Light |
| 30 | 234062410 | Flat Washer 6 mm This part replaces 20009. |
| 31 | 415100800 | Grommet - Call your local BRP dealership |
| 32 | 732610072 | Push Nut |
| 33 | 515175548 | Handle - Call your local BRP dealership |
| 34 | 40366 | Screw M5x16 |
| 35 | 33009 | Nut elastic M5 |
| 36 | 517289300 | L.H. support |
| 36 | 517289400 | R.H. support |
| 37 | 5345290 | Head Lamp Holder |
| 38 | 36037 | Rivet |
| 39 | 33010 | Lock Nut M6 (1=10Pcs) |
| 40 | 515176311 | Halogen headlamp ass'y This part replaces 515175158. |
| 41 | 42263 | Bulp |
| 42 | 410608300 | BULB HOLDER - Call your local BRP dealership |
| 43 | 410607100 | PROTECTOR CAP - Call your local BRP dealership |
| 44 | 5445737 | SUPPORT SPRING - Call your local BRP dealership |
| 45 | 515163800 | VOLTAGE REGULATOR - Call your local BRP dealership |
| 46 | 40868 | Screw M6x40 |
| 47 | 415129350 | BLANK KEY - Call your local BRP dealership This part replaces 414991700. |
| 48 | 410504200 | INSTRUMENTATION BULB - Call your local BRP dealership |
| 49 | 409010400 | Male terminal |
| 50 | 409010100 | Connector housing |
| 51 | 414227300 | Clip |
