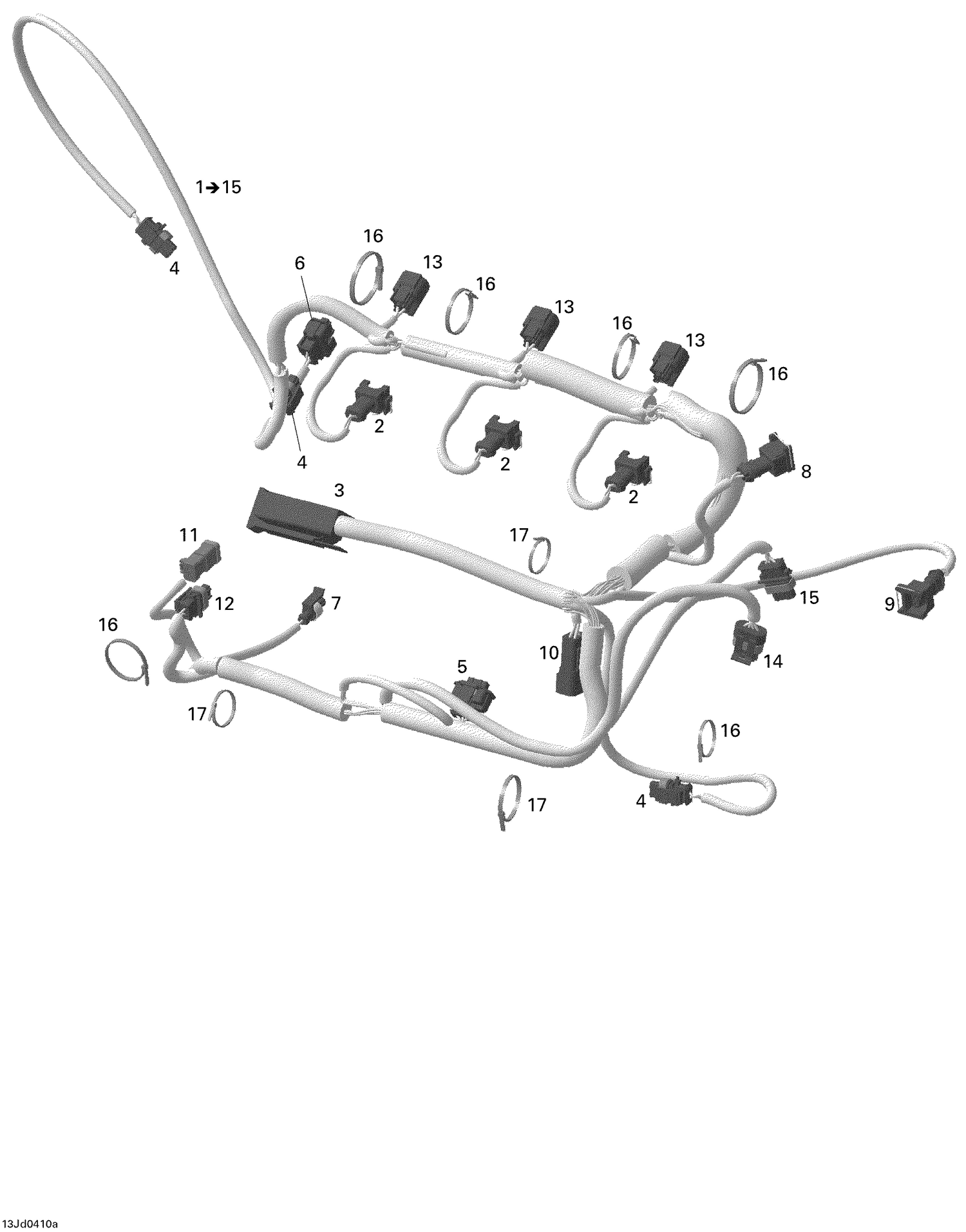

| Ref | Part Number | Description |
|---|
| 2 |
278001003 |
Male Connector, 2 Circuits |
| 3 |
420664450 |
ECM Connector This part replaces 290664450. |
| 4 |
278001005 |
Male Housing, 2 Circuits |
| 5 |
278001829 |
Housing Connector, 3 Circuits |
| 6 |
278001830 |
Housing Connector, 3 Circuits |
| 7 |
278001012 |
Male Housing, 1 Circuit |
| 8 |
415128500 |
Female Terminal Housing, 2 Circuits This part replaces 278001834. |
| 9 |
415128500 |
Female Terminal Housing, 2 Circuits This part replaces 278001834. |
| 10 |
278000635 |
Female Housing, 4 Circuits |
| 11 |
278001831 |
Connector, Magneto |
| 12 |
278001005 |
Male Housing, 2 Circuits |
| 13 |
420964100 |
CONNECTOR 3 POSITIONS - Call your local BRP dealership This part replaces 278001832. |
| 14 |
278001833 |
Connector, Idle Bypass Valve |
| 15 |
278000997 |
Male Housing, 3 Circuits |
| 16 |
420866714 |
Tie Rap |
