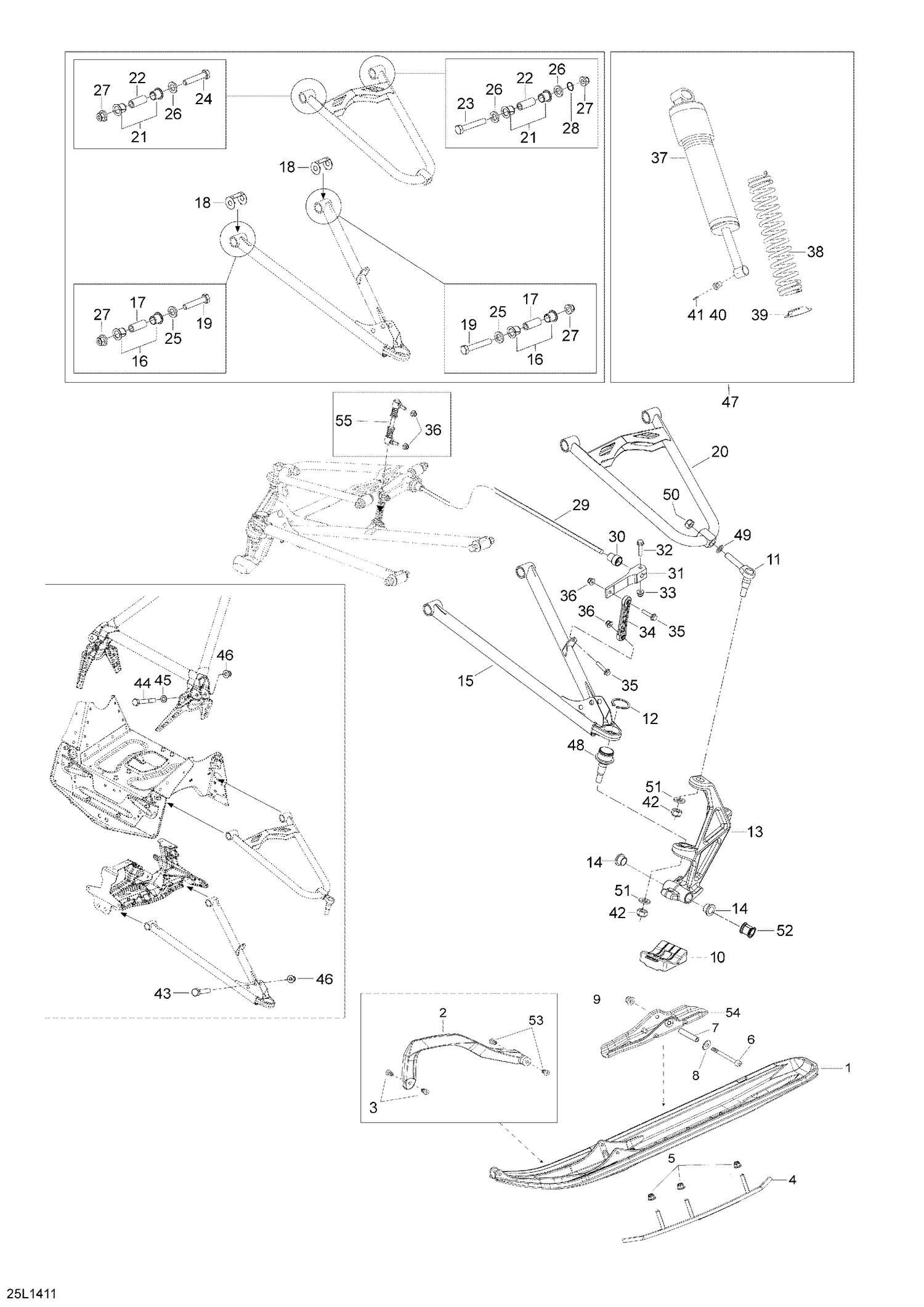

07- Front Suspension And Ski
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 505073154 | Ski BLADE |
| 2 | 505072976 | Black, Handle |
| 3 | 505071812 | Retainer 17mm long |
| 5 | 33074 | NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership |
| 6 | 250000703 | Hex. Screw M10 X 130 This part replaces 230003044. |
| 7 | 506133300 | Axle ski |
| 8 | 732900049 | Washer |
| 9 | 233201414 | Hex. Flanged Elastic Nut M10 |
| 10 | 505073411 | Rubber damper |
| 11 | 505072257 | Upper Ball Joint |
| 12 | 293370035 | Circlip |
| 13 | 505072959 | LH Ski Leg, black |
| 13 | 505072960 | RH Ski Leg, black |
| 14 | 505072690 | Leg Bushing |
| 15 | 505072497 | RH Lower Arm |
| 15 | 505072498 | LH Lower Arm |
| 16 | 505073330 | Bushing |
| 17 | 505072209 | Bushing This part replaces 505072393. |
| 18 | 505072634 | Wear Plate |
| 19 | 250001024 | Screw Hex. M10 X 70 This part replaces 250000291. |
| 20 | 505072375 | Upper Arm |
| 21 | 505073329 | Bushing |
| 22 | 505072143 | Aluminum Bushing |
| 23 | 250001023 | Screw Hex. M10 X 60 This part replaces 250000290. |
| 24 | 250001022 | Screw Hex. M10 X 50 This part replaces 250000289. |
| 25 | 503189564 | Washer |
| 26 | 505072392 | Washer |
| 27 | 250100165 | Hex. Flanged Elastic Nut M10 This part replaces 250100088. |
| 28 | Not | Available As Spare Part - O-Ring |
| 29 | 505072602 | Stabilisator bar |
| 30 | 505072064 | Bushing |
| 31 | 505072394 | Stabilisator Lever |
| 32 | 207663046 | Hex. Flange Screw M6 X 30 |
| 33 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 34 | 505073172 | Double Ball Joint Link |
| 35 | 207663046 | Hex. Flange Screw M6 X 30 |
| 36 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 37 | 505073456 | Front Shock |
| 38 | 505072846 | Spring 14 Nm.painted |
| 39 | 503194270 | Spring Stopper This part replaces 503192608. |
| 40 | 505072753 | Adjustment Knob |
| 41 | 250000644 | Allen Screw M3 X 0.5 X 10 This part replaces 205031060. |
| 42 | 250100089 | Hex. Elastic Hex. Nut M12 |
| 43 | 207005544 | Hex. Screw M10 X 55 |
| 44 | 207006544 | Hex. Screw M10 X 65 |
| 45 | 503189564 | Washer |
| 46 | 233201414 | Hex. Flanged Elastic Nut M10 |
| 47 | Not | Available As Spare Part - Shock ass'y, ski |
| 48 | 505073636 | Ball Joint This part replaces 505072682. |
| 49 | 503189276 | Washer |
| 50 | 250100089 | Hex. Elastic Hex. Nut M12 |
| 51 | 234021410 | Flat Washer 12 mm |
| 52 | 505071999 | Spacer |
| 53 | 505072133 | Retainer 23mm Long |
| 54 | 505073240 | Ski bridge weld |
