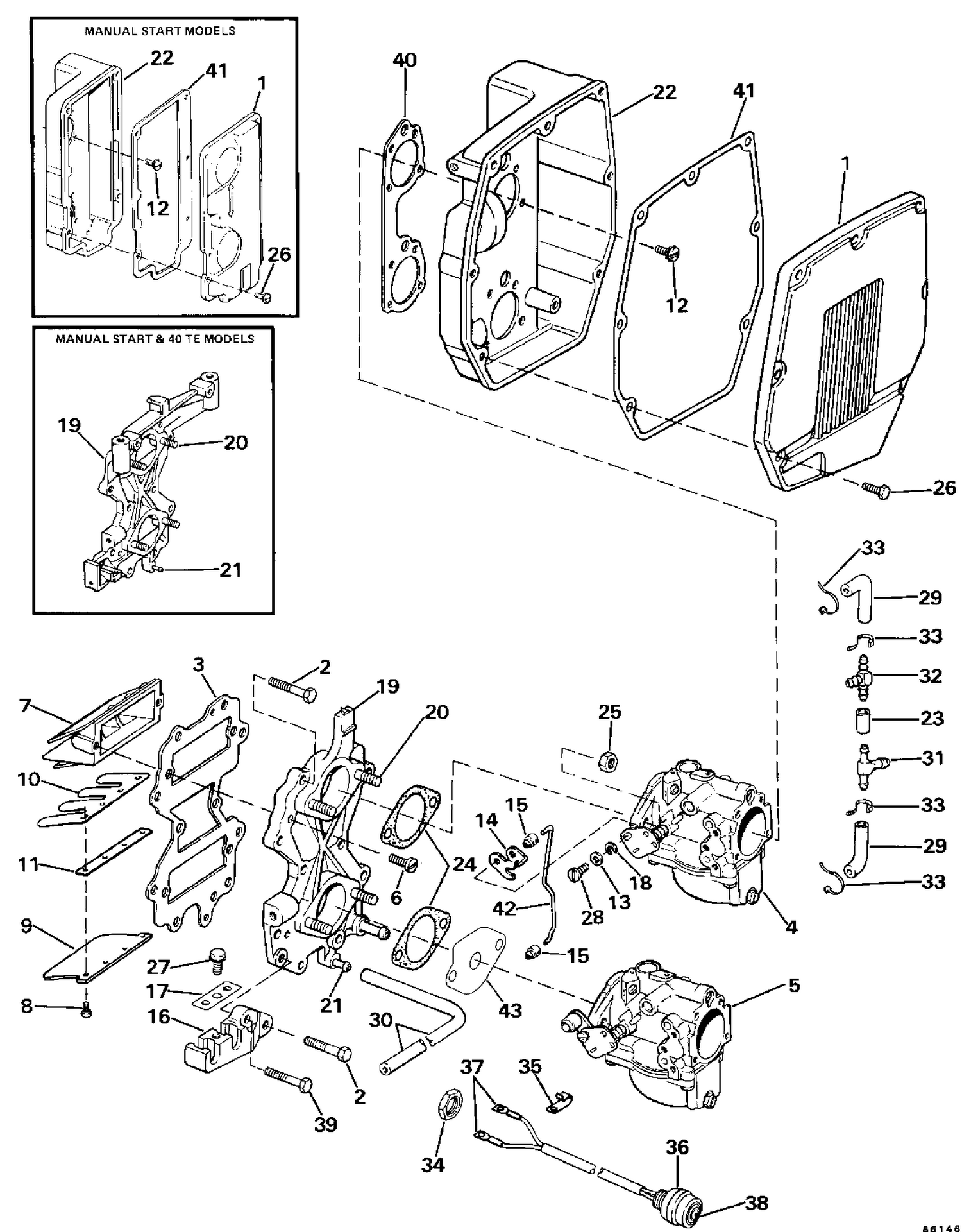

| Ref | Part Number | Description |
|---|
| 1 |
0329396 |
COVER |
| 1 |
0330912 |
COVER, Air silencer |
| 2 |
0306409 |
VIS, collecteur vers carter-moteur |
| 3 |
0335633 |
GASKET This part replaces 0317504. |
| 4 |
CARBURETOR |
ASSY., Upper |
| 5 |
CARBURETOR |
ASSY., Lower |
| 6 |
0306474 |
SCREW |
| 7 |
0389810 |
LEAF PLATE |
| 7 |
0395442 |
LEAF PLATE ASSEMBLY |
| 12 |
3852459 |
SCREW, Switch This part replaces 0908769. |
| 14 |
0329418 |
LEVER, Synchronization adj. |
| 15 |
0318165 |
DISPOSITIF DE RETENUE, tringlerie de carburateur |
| 19 |
0391780 |
MANIFOLD ASSY |
| 19 |
0395736 |
MANIFOLD ASSY, Rope & TE. |
| 22 |
0330911 |
BASE, Air silencer |
| 22 |
0431994 |
BASE, Air silencer This part replaces 0395361. |
| 23 |
HOSE, |
Tee to tee, 25mm (1") |
| 24 |
0325092 |
GASKET |
| 25 |
0316355 |
BUT, Carburetor mounting |
| 27 |
0312241 |
SCREW, Trim/Tilt relay bracket |
| 29 |
HOSE, |
Tee to carb., 76mm (3") |
| 30 |
HOSE, |
Silencer to manifold, 121mm (4-3/4") |
| 31 |
0326031 |
TEE, Carburetor hose |
| 33 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 35 |
0310441 |
CLAMP, CPS lead This part replaces 0310493. |
| 36 |
0583927 |
PRIMER SWITCH This part replaces 0393798. |
| 39 |
0306418 |
VIS, ancrage |
| 40 |
0330910 |
GASKET |
| 41 |
0330698 |
GASKET |
| 41 |
0330909 |
GASKET |
| 42 |
0329888 |
LINK |
