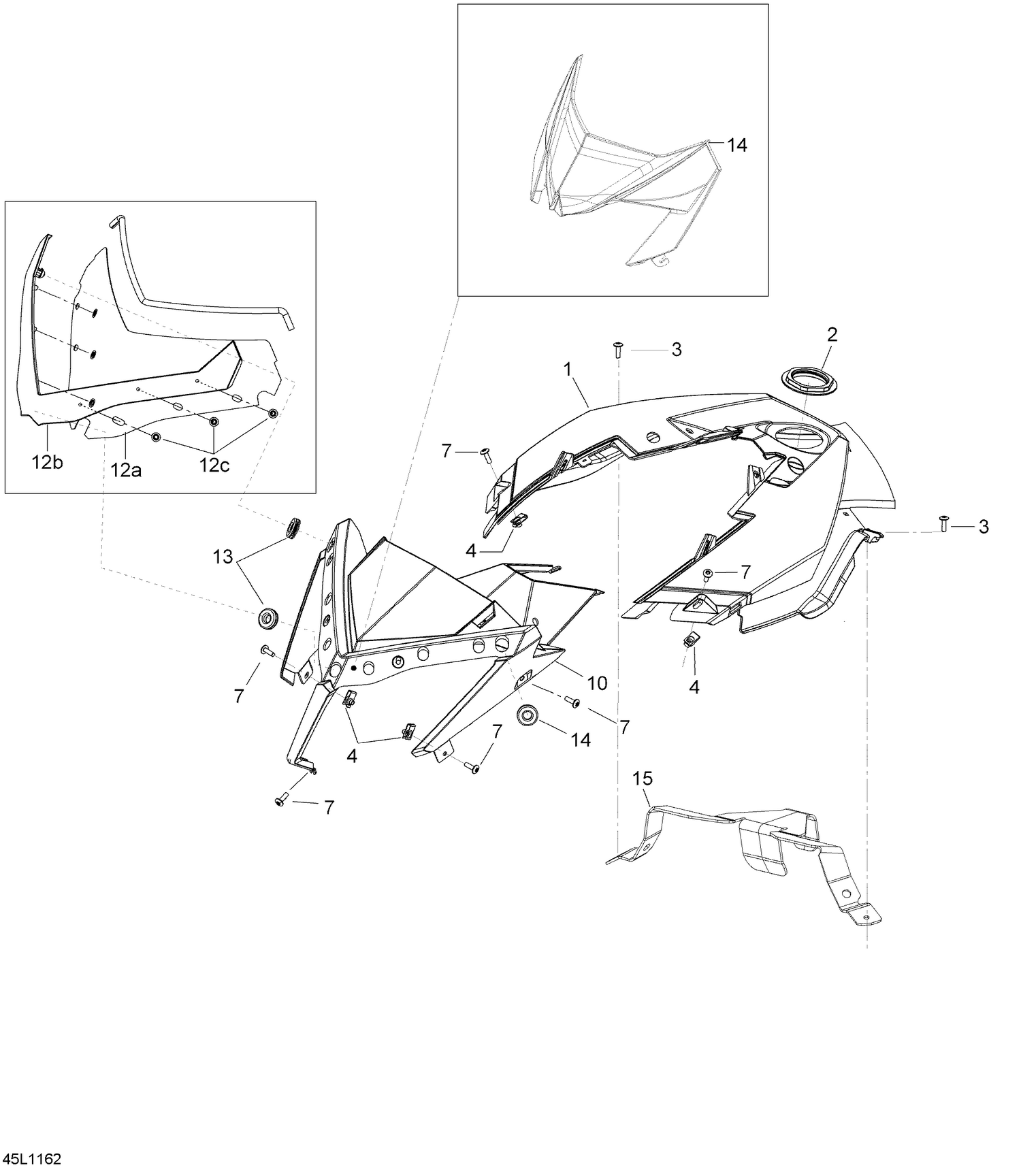

| Ref | Part Number | Description |
|---|
| 1 |
517304642 |
Console white |
| 2 |
517302575 |
CONSOLE NUT - Call your local BRP dealership |
| 3 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 4 |
250100198 |
Panel Nut , M6 X 1.0 This part replaces 250100113. |
| 7 |
250000722 |
Torx Truss Screw M6 x 20 This part replaces 250000128. |
| 8 |
Not |
Available As Spare Part - Elastic Stop Nut M6 |
| 9 |
Not |
Available As Spare Part - Flat Washer |
| 10 |
517304578 |
Gauge Support |
| 11 |
Not |
Available As Spare Part - Torx Truss Screw M6 X 20 |
| 12a |
517304293 |
Windshield |
| 12b |
860200089 |
Windshield Support Kit |
| 12c |
732610072 |
Push Nut |
| 13 |
517303756 |
Grommet |
| 14 |
517303979 |
Headlamp cover |
