| Ref | Part Number | Description |
|---|
| 4 |
0333440 |
CLAMP, Battery cable This part replaces 0317755. |
| 5 |
0306487 |
SCREW |
| 18 |
0520421 |
GROMMET |
| 19 |
0310441 |
CLAMP, CPS lead |
| 27 |
5007356 |
Kit Ay This part replaces 0397909. |
| 30 |
0511807 |
COVER&GASKET AY |
| 31 |
0333348 |
GASKET, Cover to housing |
| 41 |
HOSE, |
Primer to carb., 10 1/2 in. (267mm) |
| 42 |
HOSE, |
Solenoid to bypass cover, 16 in. (406mm) |
| 43 |
HOSE, |
Tee to primer, 15 in. (381mm) |
| 46 |
HOSE, |
Tee to carb., 9 1/4 in. (235mm) |
| 48 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 49 |
0439383 |
FLOAT CHAMBER This part replaces 0393131. |
| 52 |
0329513 |
SCREW, Float bowl |
| 53 |
0328907 |
COLLIER, amorçage vers support |
| 54 |
0329594 |
SCREW, Cam follower |
| 57 |
0325092 |
GASKET |
| 58 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309322. |
| 59 |
0394243 |
BY-PASS COVER & NIPPLE ASSY.(CR models only) |
| 59 |
0396018 |
BY-PASS COVER |
| 60 |
0319661 |
GASKET, By-pass cover |
| 61 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 62 |
0303615 |
GASKET |
| 63 |
HOSE, |
Pump to tee, 18 in. (457mm) |
| 64 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 65 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0310440. |
| 69 |
0174335 |
CONNECTOR & LEAD |
| 70 |
0123404 |
CONNECTOR, 1-socket plug |
| 72 |
0123405 |
CONNECTOR |
| 0174655 |
0174655 |

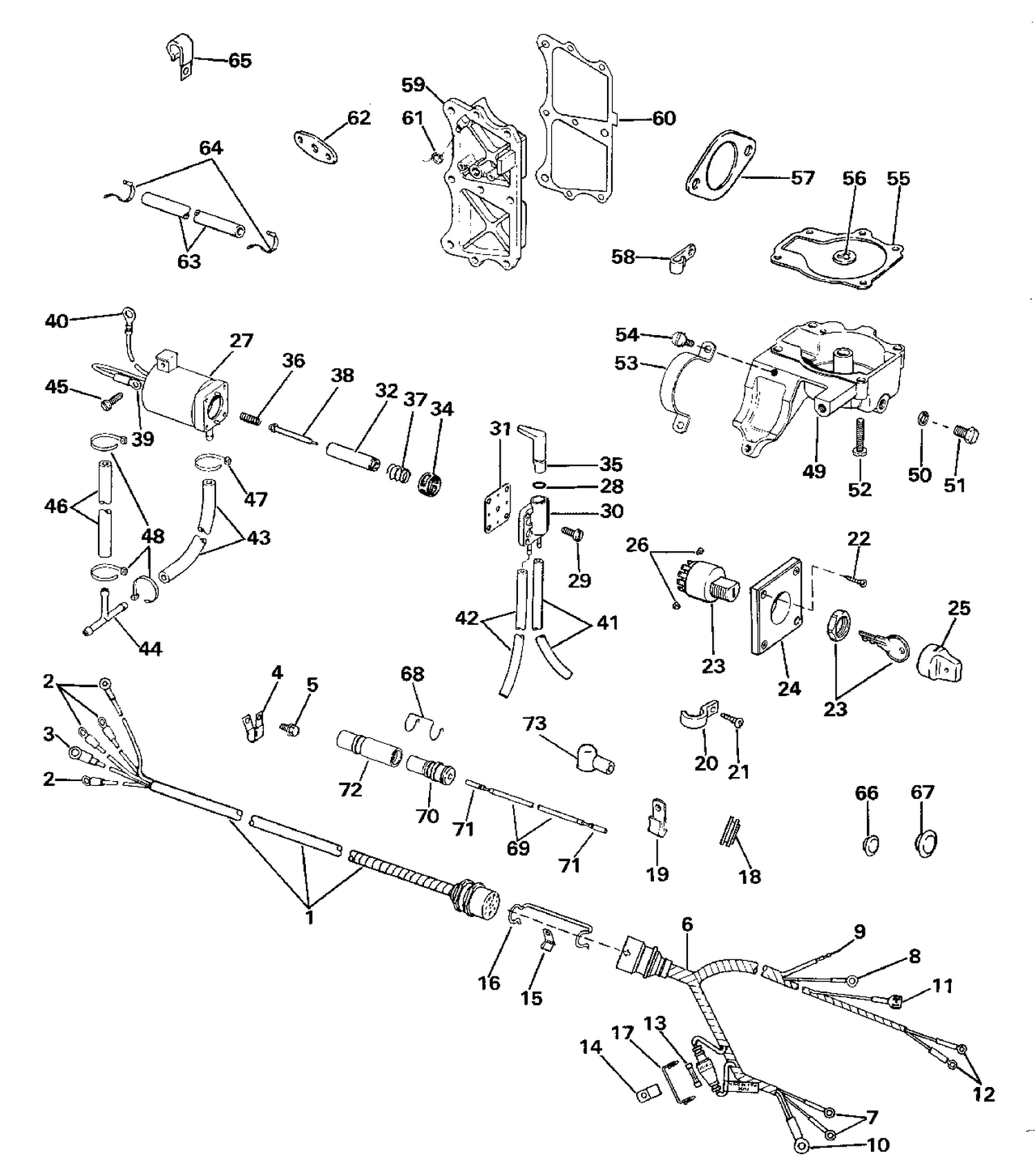

REMOTE ELECTRIC STARTING KIT |
