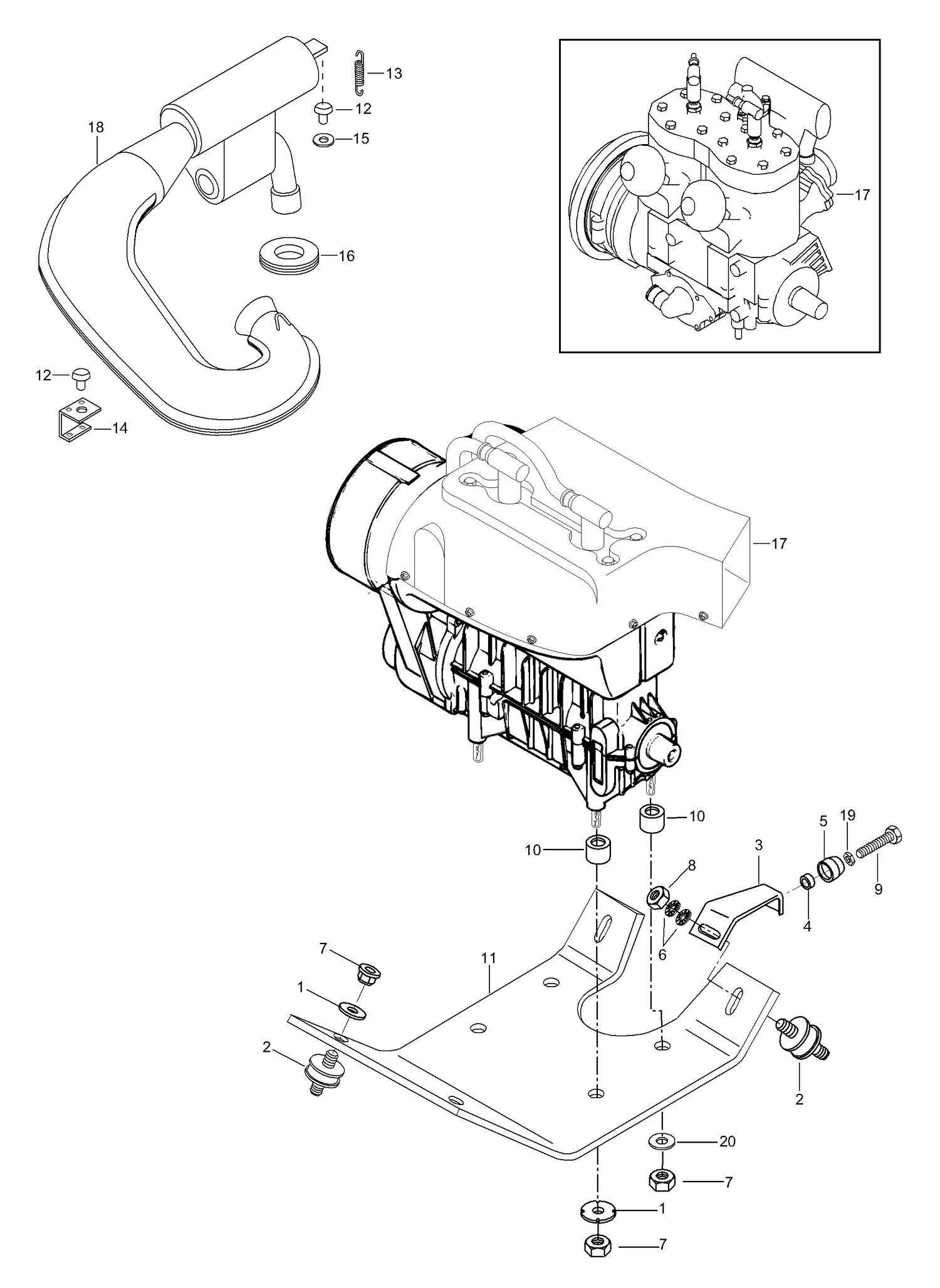

| Ref | Part Number | Description |
|---|
| 1 |
512056700 |
Lock washer |
| 2 |
570127700 |
RUBBER MOUNT - Call your local BRP dealership |
| 3 |
539902 |
TORQUE SUPPORT - Call your local BRP dealership |
| 4 |
2846014 |
RUBBER GROMMET - Call your local BRP dealership |
| 5 |
5440091 |
Sleeve |
| 6 |
20068 |
Lock washer |
| 7 |
33012 |
Nut elastic M10 |
| 8 |
232006414 |
Hex. Nut M10 This part replaces 33004. |
| 9 |
40121 |
Hex Screw M8x40 DIN933 m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 10 |
5446347 |
Sleeve |
| 11 |
5347639 |
Engine support |
| 12 |
514053654 |
Rubber Bumper This part replaces 570048700. |
| 13 |
420938796 |
Spring This part replaces 420938795. |
| 14 |
5345893 |
Suport |
| 15 |
20087 |
Shim |
| 16 |
570039000 |
EXHAUST GROMMET - Call your local BRP dealership |
| 17 |
Not |
Available As Spare Part - <<503>> Engine - DOES NOT APPLY TO THIS MODEL |
| 18 |
420979858 |
Tuned pipe |
| 19 |
33003 |
Nut M8 |
