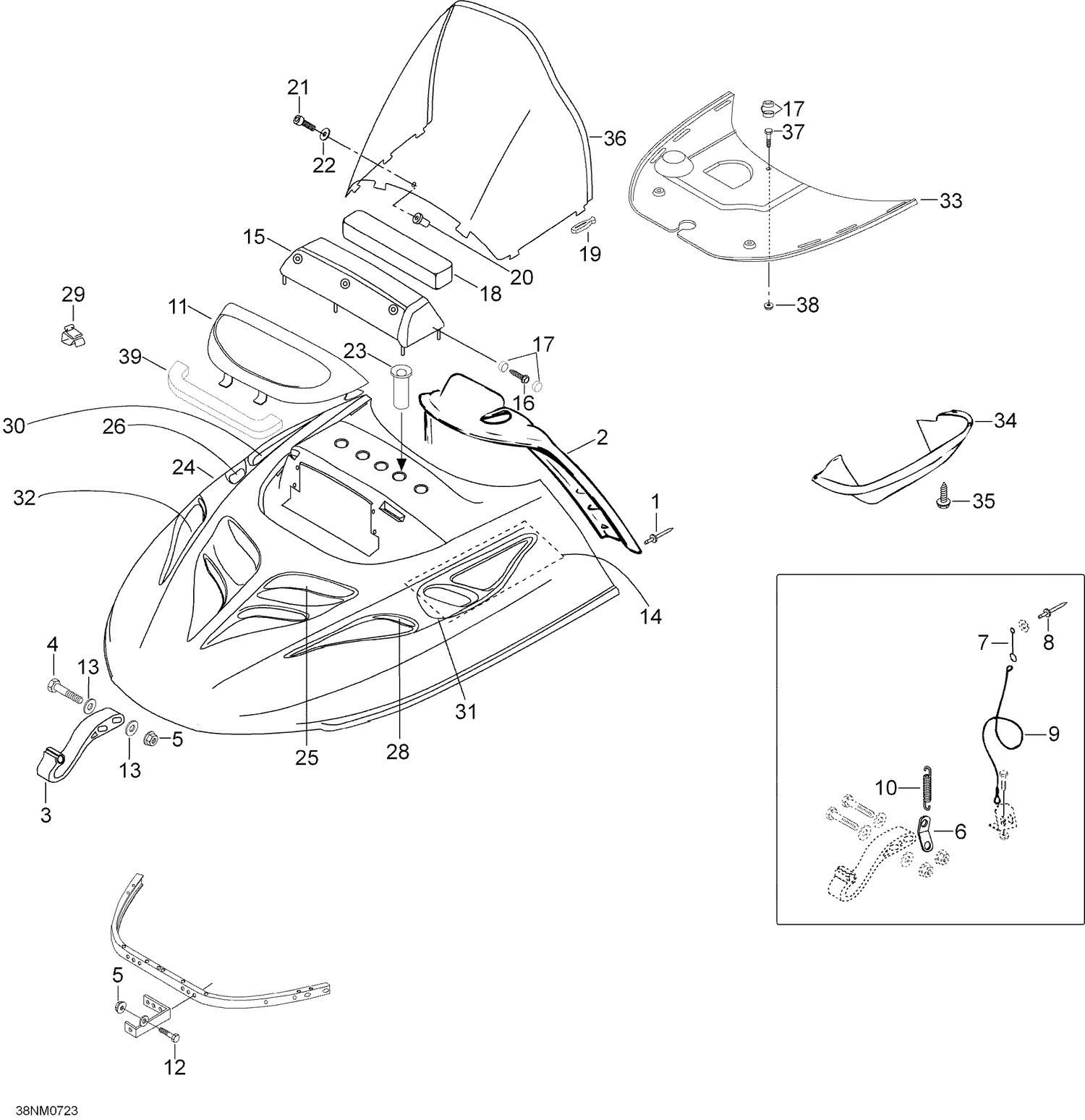

| Ref | Part Number | Description |
|---|
| 1 |
36036 |
Vetoniitti |
| 2 |
605148419 |
Hinge welded |
| 3 |
5343075 |
Sarana, hits. |
| 4 |
40193 |
Hex. screw M6 x 50 |
| 5 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 6 |
5443123 |
Anslagvajer fäste |
| 7 |
605449395 |
CABLE KEEPER - Call your local BRP dealership |
| 8 |
36005 |
RIVET 4.8X12 AL BLACK,(1 PAC <=> 50 PC) |
| 9 |
5346947 |
Rajoitin vaijeri |
| 10 |
5442675 |
Vetojousi |
| 11 |
605252351 |
LAMP MOLDING - Call your local BRP dealership |
| 12 |
40084 |
Hex. screw M6 x 45 |
| 13 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 14 |
44001 |
REFLECTIVE SHEET (1M X 1M) - Call your local BRP dealership |
| 15 |
605149010 |
INTAKE COVER - Call your local BRP dealership |
| 16 |
40901 |
Plastofast-ruuvi 5x20 (1442 Zn |
| 17 |
282000 |
Ruuvin kupu/pohja |
| 18 |
605349056 |
FILTER - Call your local BRP dealership |
| 19 |
570023800 |
Tuulilasin kiinnityskumi |
| 20 |
28055 |
Vastamutteri |
| 21 |
40156 |
Slot sc. M5 x 20DIN7985m4.6Zne(1=10pcs) - Call your local BRP dealership |
| 22 |
20008 |
Tähtialuslevy A5,3 |
| 23 |
605449084 |
SHORT TUBE - Call your local BRP dealership |
| 25 |
5142669 |
Middle grill - Call your local BRP dealership |
| 26 |
5242671 |
Upper side grill R.H. |
| 26 |
5242899 |
Galler, upper, vänster |
| 28 |
5242672 |
R.H. lower grill - Call your local BRP dealership |
| 28 |
5342673 |
Galler, nedre, vänster |
| 29 |
414227300 |
Clip |
| 30 |
5342990 |
Peitelevy, oikea |
| 31 |
5343408 |
COVER PLATE LH - Call your local BRP dealership |
| 32 |
5343409 |
Peitelevy, flekti |
| 33 |
5246742 |
HOOD CENTERPLATE - Call your local BRP dealership |
| 34 |
5146986 |
Cooling channel - Call your local BRP dealership |
| 35 |
414644300 |
Black, Dart |
| 36 |
5147892 |
Windscreen |
| 37 |
40179 |
Uraruuvi M5 x 25 |
| 38 |
233251434 |
Flanged Elastic Nut M5 This part replaces 33062. |
