| Ref | Part Number | Description |
|---|
| 1 |
Not |

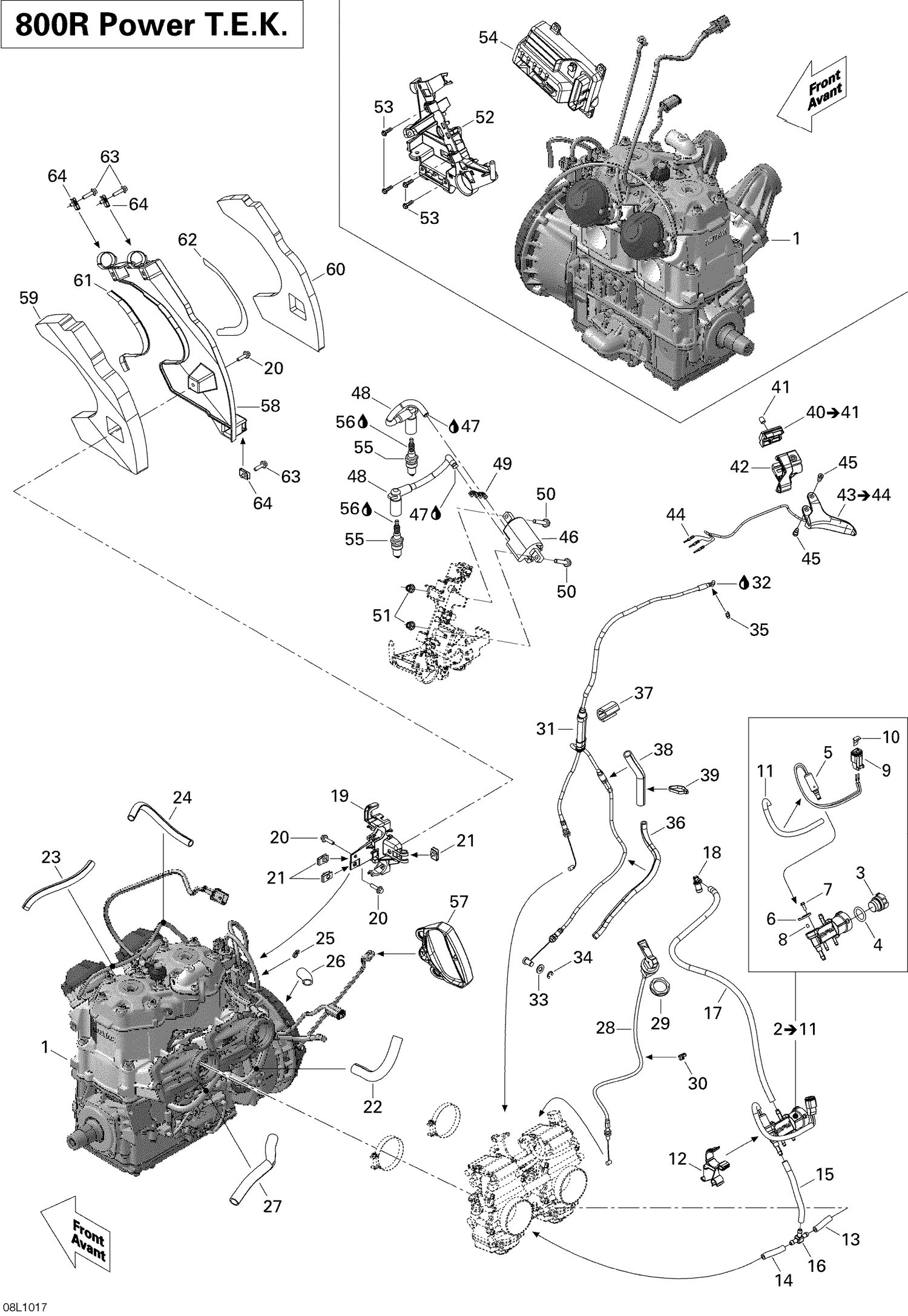

Available As Spare Part - Engine 800R Power T.E.K. |
| 3 |
270600009 |
CAP - Call your local BRP dealership |
| 4 |
293300042 |
O-RING - Call your local BRP dealership |
| 5 |
515175701 |
PRESSURE MANIFOLD HARNESS - Call your local BRP dealership |
| 6 |
415061600 |
SOLENOID LOCK - Call your local BRP dealership |
| 7 |
241140060 |
Screw K40 X 10 |
| 8 |
404161825 |
STARTER JET - Call your local BRP dealership |
| 9 |
515175670 |
Female Terminal Housing, 2 Circuits |
| 10 |
515175675 |
Female Lock, 2 Circuits |
| 11 |
515175332 |
Vinyl Tubing, Low Temperature |
| 12 |
512060229 |
DPM SUPPORT - Call your local BRP dealership |
| 13 |
415080200 |
HOSE, POLYURETHANE - Call your local BRP dealership |
| 14 |
415080200 |
HOSE, POLYURETHANE - Call your local BRP dealership |
| 15 |
415080200 |
HOSE, POLYURETHANE - Call your local BRP dealership |
| 16 |
414729300 |
T-FITTING - Call your local BRP dealership |
| 17 |
415080200 |
HOSE, POLYURETHANE - Call your local BRP dealership |
| 18 |
414580700 |
Male Connector |
| 19 |
512060298 |
Solenoid Support |
| 20 |
207652044 |
Hex. Flange Screw M5 X 20 |
| 21 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 22 |
409901800 |
Tubing 13 mm |
| 23 |
409901700 |
Tubing 9 mm |
| 24 |
409901700 |
Tubing 9 mm |
| 25 |
293750001 |
Tie-Rap 94 mm |
| 26 |
409901800 |
Tubing 13 mm |
| 27 |
409901800 |
Tubing 13 mm |
| 28 |
512060672 |
Choke Cable This part replaces 512060153. |
| 29 |
512060671 |
Plastic Nut This part replaces 512060016. |
| 30 |
414115200 |
Tie-Rap 180 mm |
| 31 |
512060886 |
Throttle Cable This part replaces 512060546. |
| 32 |
293550004 |
Dielectric Grease, 150 g |
| 33 |
234081100 |
Flat Washer 8 mm |
| 34 |
414753500 |
Circlip |
| 35 |
414274500 |
Circlip |
| 36 |
515175442 |
Tubing 6 mm |
| 37 |
512060313 |
Protector |
| 38 |
415079900 |
Tubing 10 mm |
| 39 |
414115200 |
Tie-Rap 180 mm |
| 41 |
414440800 |
Socket Set Screw M8 X 10 |
| 42 |
512060860 |
Lower Housing This part replaces 512060430. |
| 44 |
515175232 |
Male Terminal |
| 45 |
732601143 |
Flanged Screw |
| 46 |
512059968 |
Ignition Coil |
| 47 |
293550004 |
Dielectric Grease, 150 g |
| 48 |
512060291 |
Cable Ass'y |
| 49 |
410914600 |
Plastic Clip, Spark Plug Wire |
| 50 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663034. |
| 51 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 52 |
512060924 |
Support Coils This part replaces 512060278. |
| 53 |
241151640 |
Hex. Flanged Screw K50 X 16 |
| 54 |
512060682 |
CALIBRATED MODULE, 800R POWERT.E.K. - Call your local BRP dealership This part replaces 512060528. |
| 55 |
415128524 |
Spark Plug NGK BR9ECS |
| 56 |
293550004 |
Dielectric Grease, 150 g |
| 57 |
512060136 |
Starter Grip |
| 58 |
512060338 |
Noise Shield |
| 59 |
512060341 |
Inner Noise Foam |
| 60 |
512060342 |
Outer Noise Foam |
| 61 |
512060574 |
Heat Shield |
| 62 |
512060575 |
Heat Shield |
| 63 |
207652044 |
Hex. Flange Screw M5 X 20 |
