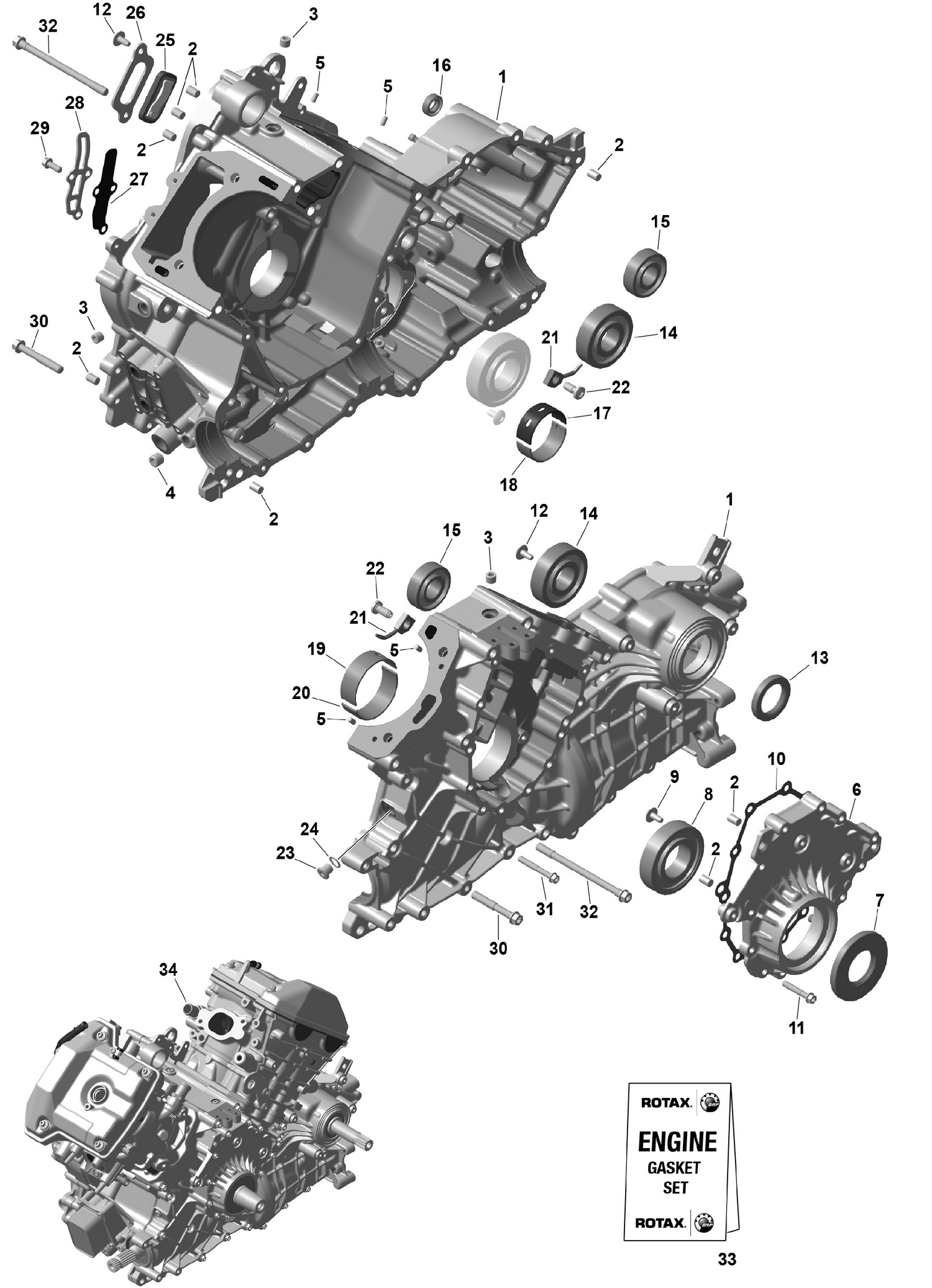

01- ROTAX - Crankcase
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | XXX | Not Available As Spare Parts |
| 2 | 420632010 | Center Pin 8 X 12 |
| 3 | 420641323 | Plug Screw M10 X 1 |
| 4 | 420840658 | Plug Screw M12x1,5 |
| 5 | 420929650 | Drive Pin 5 X 10 |
| 8 | 420632749 | Ball Bearing |
| 9 | 420240051 | Torx Screw M6X13 |
| 11 | 420440274 | Torx Flange Screw M6 X 35 |
| 12 | 420240051 | Torx Screw M6X13 |
| 14 | 420932822 | Ball Bearing |
| 15 | 420932435 | Ball Bearing |
| 17 | 420933494 | Bearing Sleeve |
| 18 | 420933499 | Half Bushing |
| 19 | 420233372 | Bearing Sleeve |
| 20 | 420233377 | Bearing Sleeve |
| 21 | 420956856 | Oil Spray Nozzle |
| 22 | 420641283 | Banjo Bolt M8X1 Ass'y |
| 23 | 420641733 | Plug Screw M10 X 1 This part replaces 420641326. |
| 25 | 420224771 | Reed Valve Ass'y |
| 26 | 420612085 | Reed Valve Membrane |
| 27 | 420224721 | Reed Valve |
| 28 | 420224725 | Reed Valve Stop |
| 29 | 420440164 | Torx Flange Screw M6 X 16 |
| 30 | 420641213 | Torx Flange Screw M8 X 55 This part replaces 420440397. |
| 31 | 420440324 | Torx Flange Screw M6 X 45 |
| 32 | 420941571 | Flanged Torx Screw M8 X 115 |
| 33 | 420684161 | Engine Gasket Set |
