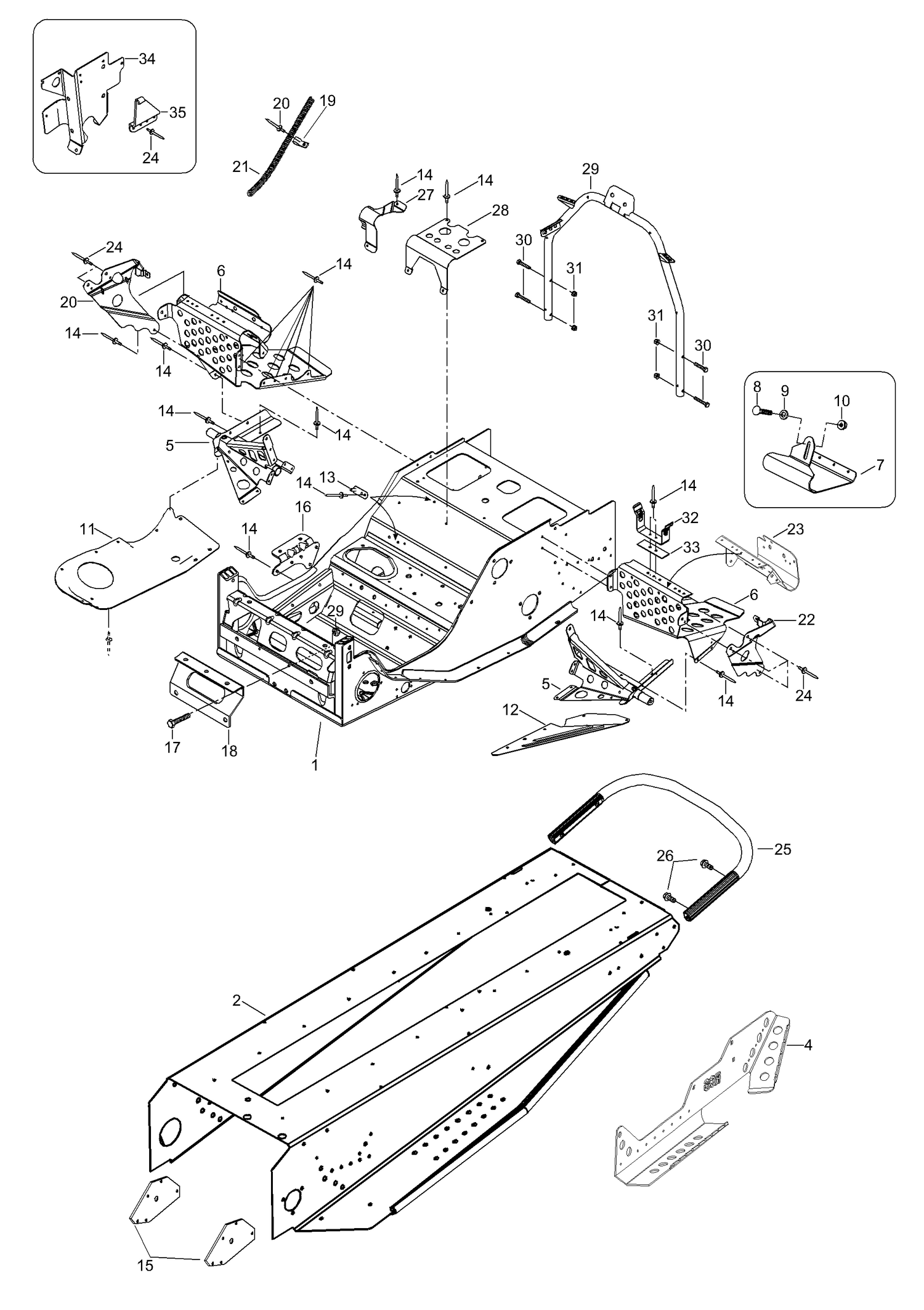

09- Frame
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 605349547 | R.H. support, aluminium |
| 3 | 605349548 | R.H. support, aluminium |
| 4 | 605249539 | L.H. holed corner plate |
| 4 | 605249540 | R.H. holed corner plate |
| 5 | 605248447 | R.H. support |
| 5 | 605248448 | L.H. support |
| 6 | 605250377 | R.H. front footrest |
| 6 | 605250378 | L.H. front footrest |
| 7 | 5248038 | R.H. toe hold, adjustable |
| 7 | 5248039 | L.H. toe hold, adjustable |
| 8 | 40058 | Locking screw M8 x 20 |
| 9 | 20005 | WASHER M10 - Call your local BRP dealership |
| 10 | 233281414 | Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 11 | 518319760 | R.H. bottom pan plate |
| 12 | 605349267 | L.H. reinf. plate |
| 13 | 518319728 | Double bracket |
| 14 | 36489 | Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 15 | 5348321 | Support |
| 16 | 518322635 | Muffler support |
| 17 | 40029 | Screw M6 x 16 |
| 18 | 5346111 | Bracket |
| 19 | 27092 | Clip |
| 20 | 36036 | Rivet |
| 21 | 518321569 | Rope guide |
| 22 | 605250669 | R.H. footrest reinforcem. |
| 22 | 605250670 | L.H. footrest reinforcem. |
| 23 | 5147869 | R.H. toe hold |
| 23 | 5147870 | L.H. toe hold |
| 24 | 36083 | Rivet |
| 25 | 605349543 | Rear bumper, red |
| 26 | 40336 | HEX. SCREW M8 X 20 - Call your local BRP dealership |
| 27 | 518322699 | Hose support |
| 28 | 518310400 | AIR INTAKE SUPPORT - Call your local BRP dealership |
| 29 | 5247856 | Handle steering supp. |
| 30 | 40003 | Screw M6 x 35 |
| 31 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 32 | 518202100 | Pulley Guard bracket |
| 33 | 518207500 | REINFORCEMENT - Call your local BRP dealership |
| 34 | 518322927 | Bracket |
