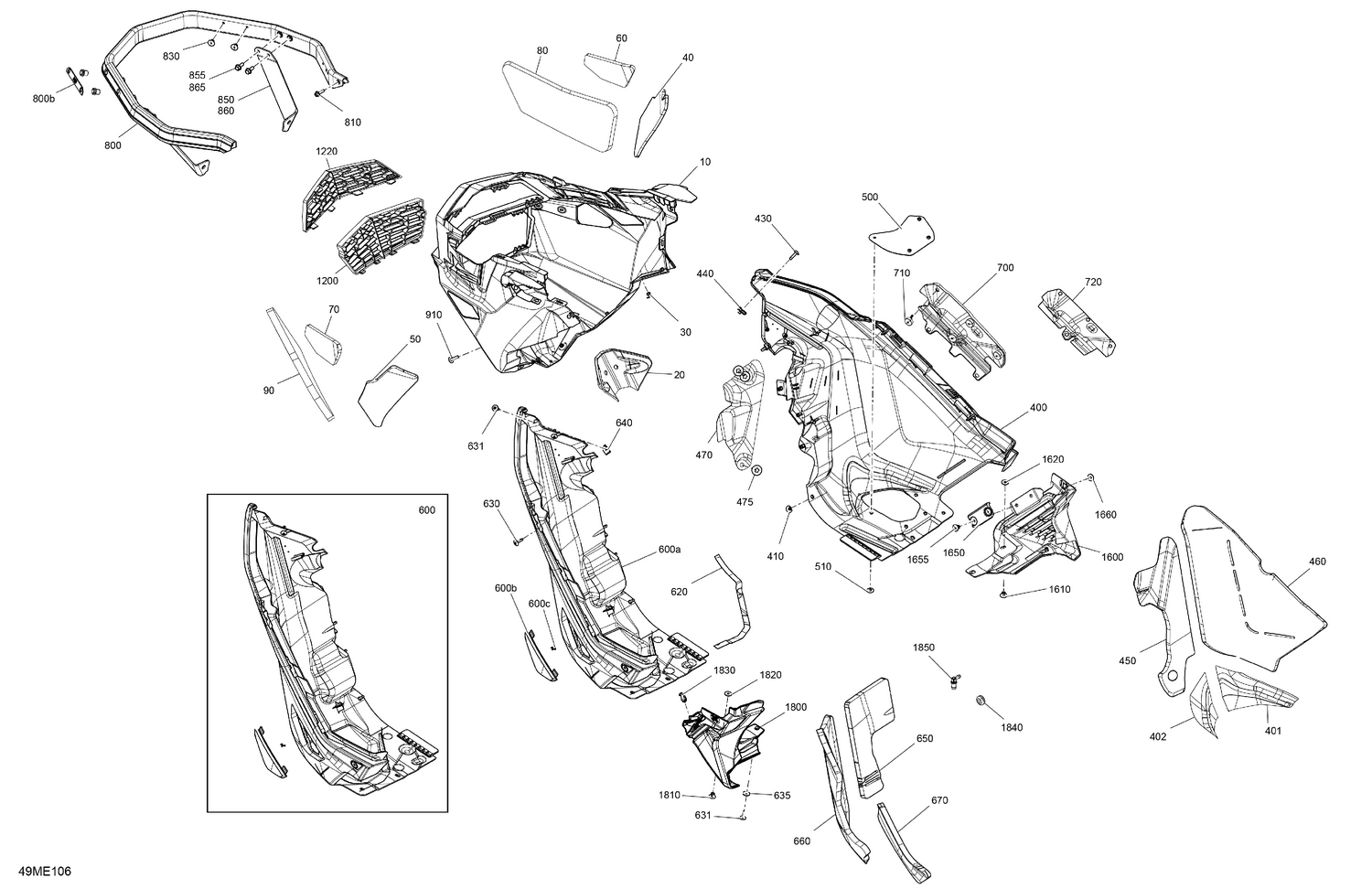

| Ref | Part Number | Description |
|---|
| 10 |
502008638 |
Front Bottom Pan |
| 20 |
502008466 |
Skid Plate |
| 30 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 40 |
502007788 |
RH Upper Bottom Pan Foam |
| 50 |
502007789 |
LH Upper Bottom Pan Foam |
| 60 |
502008308 |
RH Front Central Bottom Pan Foam |
| 70 |
502008309 |
LH Front Central Bottom Pan Foam |
| 80 |
502008355 |
Bonded Foam |
| 90 |
502008356 |
Bonded Foam |
| 400 |
502008663 |
Deep Black, RH Bottom Pan |
| 401 |
502008536 |
Heat Shield |
| 402 |
502008537 |
Heat Shield |
| 410 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 430 |
250000586 |
Torx Truss M5 X 20 |
| 440 |
250000958 |
Panel Nut M5 X 0.8 |
| 450 |
502007831 |
RH Front Bottom Pan Foam |
| 460 |
502008170 |
RH Rear Bottom Pan Foam |
| 470 |
502007895 |
Heat Shield |
| 475 |
508000853 |
Push Nut |
| 500 |
502007868 |
Plate |
| 510 |
293150291 |
Black, Pop Rivet 3/16 X ,425 |
| 600a |
502008512 |
Deep Black, LH Bottom Pan |
| 600b |
502007676 |
Bottom Pan Door |
| 600c |
269800431 |
Hairpin Cotter |
| 620 |
219704476 |
Gasket, Neoprene 2000Mm Long |
| 630 |
250001232 |
Screw Torx M5 X 20 |
| 631 |
250000586 |
Torx Truss M5 X 20 |
| 635 |
250200025 |
Washer M5 |
| 640 |
250000958 |
Panel Nut M5 X 0.8 |
| 650 |
502007549 |
LH Bottom Pan Upper Foam |
| 660 |
502008334 |
LH Front Bottom Pan Foam |
| 670 |
502008173 |
LH Rear Bottom Pan Foam |
| 700 |
502008087 |
Heat Shield |
| 710 |
502008752 |
Stopper |
| 720 |
502008156 |
Reflective Sheet |
| 800b |
502007880 |
Bumper Trim |
| 810 |
207552044 |
Hex. Flange Screw M5 X 20, Scotch Grip |
| 830 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 850 |
502007762 |
RH Bumper Reinforcement |
| 855 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 860 |
502007763 |
LH Bumper Reinforcement |
| 865 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 910 |
250000758 |
Torx Screw M6 X 25 |
| 1200 |
502007979 |
Lower Prefilter Grille |
| 1220 |
502007980 |
Upper Prefilter Grille |
| 1600 |
502008023 |
Deep Black, RH Bottom Pan Panel |
| 1610 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 1620 |
517124300 |
Washer |
| 1650 |
502007757 |
Stopper |
| 1655 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 1660 |
517124300 |
Washer |
| 1800 |
502007717 |
Deep Black, LH Bottom Pan Panel |
| 1810 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 1820 |
517124300 |
Washer |
| 1830 |
293150230 |
Tuflok Plastic Rivet |
| 1840 |
414036300 |
Grommet |
