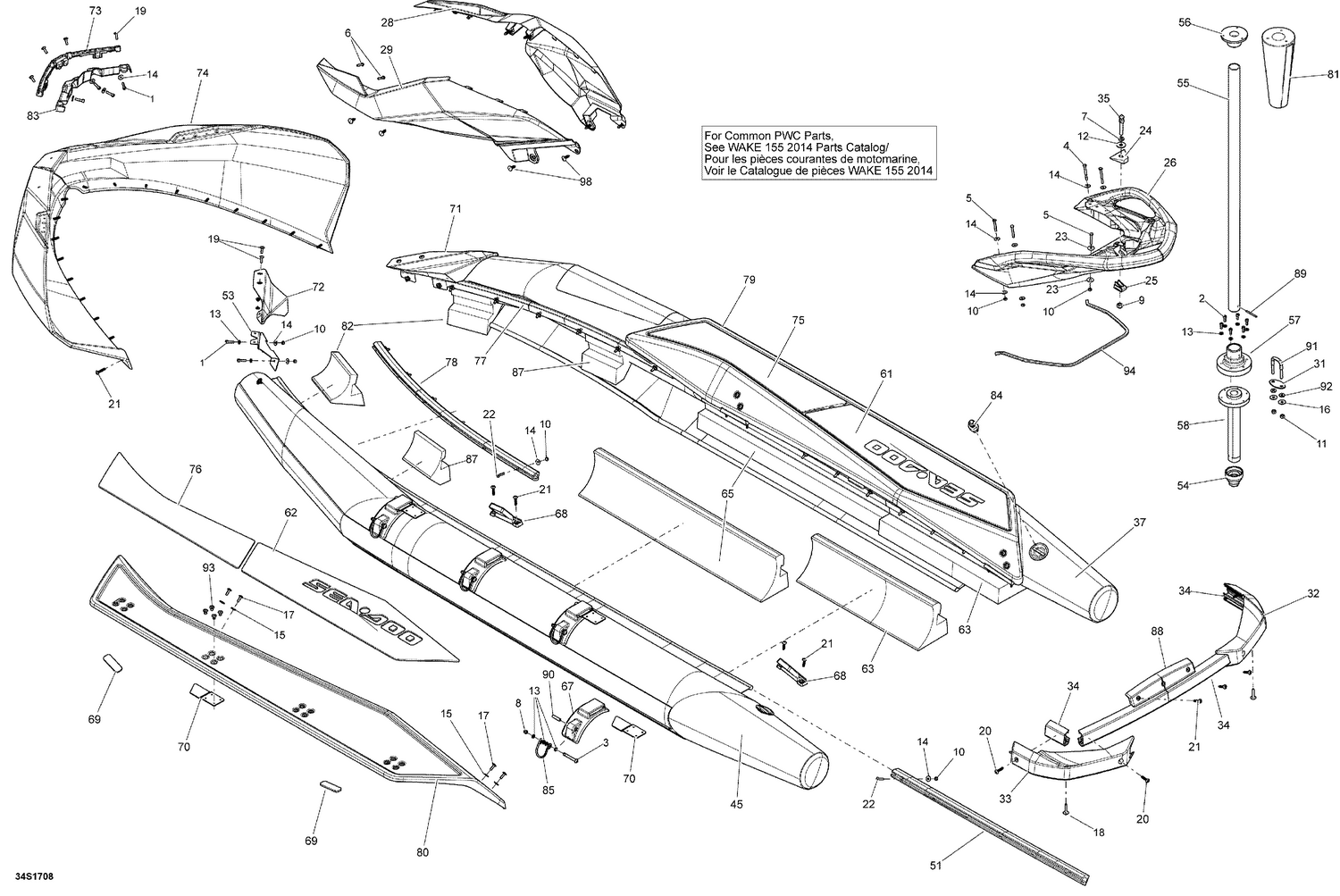

| Ref | Part Number | Description |
|---|
| 1 |
205062560 |
Socket Head Screw M6 X 25 |
| 2 |
205561660 |
Socket Head Screw M6 X 16, Scotch Grip |
| 3 |
205566060 |
Socket Head Screw |
| 4 |
207065560 |
Hex. Screw M6 x 55 |
| 5 |
207164060 |
Hex. Screw M6 X 40 |
| 6 |
211000023 |
Hex. Screw 10-14 X 7/8” |
| 7 |
232100600 |
Hex. Jam Nut M10 |
| 8 |
232361600 |
Nut M6 |
| 9 |
232501200 |
Elastic Stop Nut M10, Brass |
| 10 |
232561200 |
Brass Elastic Stop Nut M6 |
| 11 |
232581200 |
Hex. Elastic Nut M8 Brass |
| 12 |
234002600 |
Flat Washer 10 mm, Stainless |
| 13 |
234061600 |
Stainless Flat Washer M6 |
| 14 |
234062600 |
Flat Washer M6, Stainless |
| 15 |
234062670 |
Stainless Steel Flat Washer |
| 16 |
234082600 |
Flat Washer 8 mm, Stainless |
| 17 |
250000350 |
Torx Truss Screw M6 X 20 |
| 18 |
250000399 |
Hexagonal Cap Screw M6 X35 |
| 19 |
250000488 |
Torx Truss Screw M6 X 20 |
| 20 |
250001007 |
Screw Torx M6.81 X 30 This part replaces 250000709. |
| 21 |
291004284 |
THREAD SCREW FILET 1/4-20 X 1 1/4 - Call your local BRP dealership |
| 22 |
250000744 |
TORX SCEW M6 X 30 - Call your local BRP dealership |
| 23 |
250200022 |
Flat Washer M6.6 X 22 |
| 24 |
269002125 |
Seat Stud Spacer |
| 25 |
269002126 |
SEAT STUD SUPPORT - Call your local BRP dealership |
| 26 |
291004625 |
Black, Rear Handle Ass'y |
| 28 |
269502191 |
White RH Cosmetic Panel This part replaces 269501812. |
| 29 |
269502192 |
WHITE LH COSMETIC PANEL - Call your local BRP dealership This part replaces 269501813. |
| 31 |
291001386 |
Black, Finition Plate |
| 32 |
291004279 |
Black, Corner Bumper This part replaces 291004153. |
| 33 |
291004278 |
Black, Corner Bumper This part replaces 291004152. |
| 34 |
291003872 |
Lateral Bumper |
| 35 |
291003877 |
Stud Seat |
| 37 |
291003955 |
RH Float Inflatable Balloon |
| 45 |
291003956 |
LH Float Inflatable Balloon |
| 51 |
291003962 |
REAR BALLOON SLIDE RAIL - Call your local BRP dealership |
| 53 |
291003967 |
RH UPPER SUPPORT - Call your local BRP dealership |
| 53 |
291003968 |
LH UPPER SUPPORT - Call your local BRP dealership |
| 54 |
291003969 |
ROD STOPPER BLOCK - Call your local BRP dealership |
| 54 |
291003970 |
MAST ASS'Y - Call your local BRP dealership |
| 55 |
291003970 |
MAST ASS'Y - Call your local BRP dealership |
| 56 |
291003970 |
MAST ASS'Y - Call your local BRP dealership |
| 57 |
291003970 |
MAST ASS'Y - Call your local BRP dealership |
| 58 |
291003969 |
ROD STOPPER BLOCK - Call your local BRP dealership |
| 58 |
291003974 |
LINK BAR SUPPORT ASSEMBLY - Call your local BRP dealership |
| 61 |
291003979 |
RH REAR FOOT PAD - Call your local BRP dealership |
| 62 |
291003980 |
LH REAR FOOT PAD - Call your local BRP dealership |
| 63 |
291003989 |
Rear Balloon Support |
| 65 |
291004051 |
Front Balloon Support |
| 67 |
291004054 |
Foot Anchor |
| 68 |
291004055 |
FOOT SUPPORT - Call your local BRP dealership |
| 69 |
291004057 |
Rubber Stopper |
| 70 |
291004058 |
FLOORBOARD MOUNTING PLATE - Call your local BRP dealership |
| 71 |
291004087 |
RH COVER SUPPORT - Call your local BRP dealership |
| 72 |
291004088 |
LH COVER SUPPORT - Call your local BRP dealership |
| 73 |
291004111 |
BUMPER SUPPORT MA - Call your local BRP dealership |
| 74 |
291004162 |
BUMPER WITH PROTECTIVE COATING - Call your local BRP dealership |
| 75 |
291004113 |
RH FRONT FOOT PAD - Call your local BRP dealership |
| 76 |
291004114 |
LH FRONT FOOT PAD - Call your local BRP dealership |
| 77 |
291004294 |
REAR BALLOON SLIDE RAIL - Call your local BRP dealership This part replaces 291004115. |
| 78 |
291004294 |
REAR BALLOON SLIDE RAIL - Call your local BRP dealership This part replaces 291004116. |
| 79 |
291004118 |
RH FLOORBOARD - Call your local BRP dealership |
| 80 |
291004119 |
LH FLOORBOARD - Call your local BRP dealership |
| 81 |
291004128 |
PAD FOAM - Call your local BRP dealership |
| 82 |
291004151 |
Front Balloon Support (Small) |
| 83 |
291004160 |
BUMPER SUPPORT MA - Call your local BRP dealership |
| 84 |
291004166 |
Air Pump Adaptor |
| 85 |
291004167 |
SHACKLE - Call your local BRP dealership |
| 87 |
291004187 |
MID BALLOON SUPPORT (SMALL) - Call your local BRP dealership |
| 88 |
291004213 |
Appui Civière |
| 89 |
291004214 |
SPRING PIN M4 X 50 - Call your local BRP dealership |
| 90 |
291004219 |
SHACKLE SPACER BUSHING - Call your local BRP dealership |
| 91 |
292000933 |
U-Clamp |
| 92 |
293050001 |
Flat Washer M8.5 x 18 |
| 93 |
293150186 |
Pop Rivet 3/16 |
| 94 |
219704378 |
Gasket 3000Mm Long |
