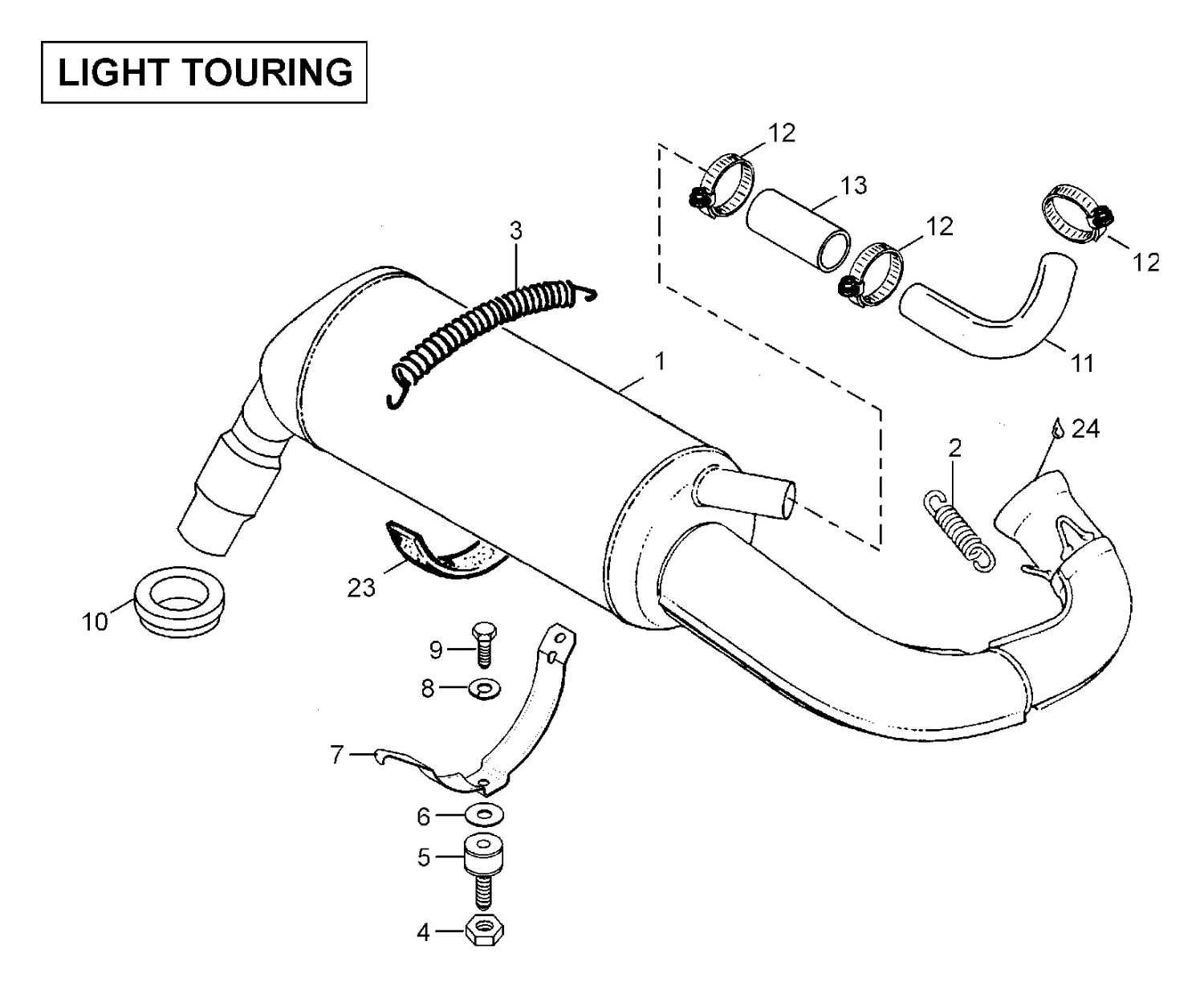

01- Muffler
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 539361 | Muffler |
| 2 | 420938796 | Spring This part replaces 420938795. |
| 3 | 543225 | Spring |
| 4 | 232581414 | Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 5 | 28245 | BUMPER-RUBBER - Call your local BRP dealership |
| 6 | 543547 | Washer |
| 7 | 535108 | Support |
| 8 | 20014 | Lock washer |
| 9 | 40034 | Screw M8x10 |
| 10 | 570141300 | Rubber flange |
| 11 | 5342650 | Elbow |
| 12 | 27003 | Clamp |
| 13 | 542854X | Hose |
| 23 | 543329 | Rubber damper |
