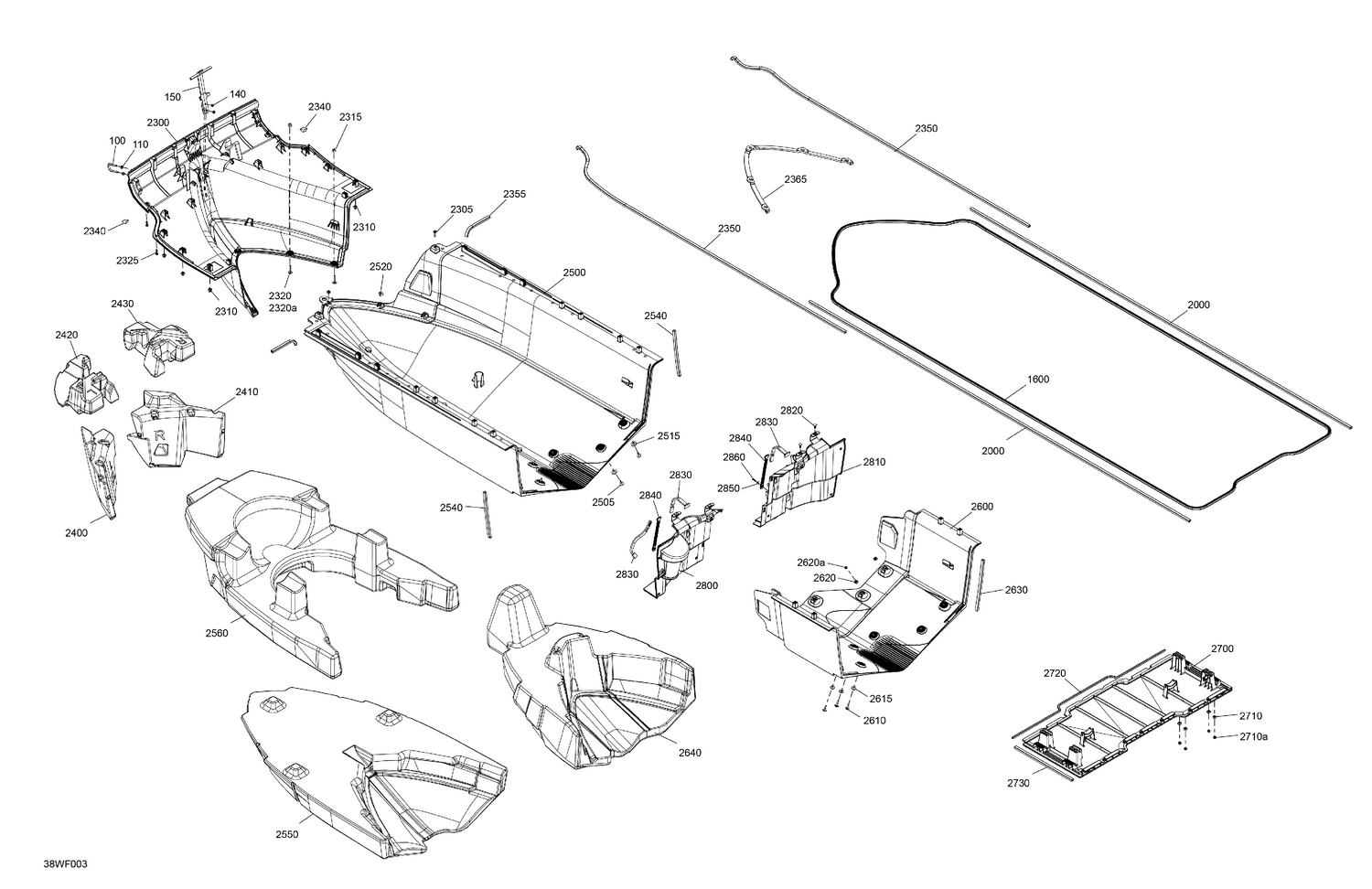

05- HULL - Deflector
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 292000933 | U-Clamp |
| 110 | 293050001 | Flat Washer M8.5 x 18 |
| 140 | 232581200 | Hex. Elastic Nut M8 Brass |
| 150 | 291005455 | Retaining Plate |
| 1600 | 292002300 | Weather Strip |
| 2000 | 292002677 | Gasket |
| 2300 | 291004894 | Hull Deflector |
| 2305 | 250000399 | Hexagonal Cap Screw M6 X35 |
| 2310 | 291005889 | Platite Insert 6.81 |
| 2315 | 292003111 | Brass Insert M6 |
| 2320a | 250000969 | Hex Screw SEMS M6X35, SS |
| 2325 | 250001138 | Plastite Screw Torx Cone HD.M6.81X3 |
| 2340 | 291006518 | Weatherstrip Support |
| 2350 | 292002677 | Gasket |
| 2355 | 292002677 | Gasket |
| 2365 | 293250703 | Self Adhesive Weather Strip |
| 2400 | 291005580 | LH Float Deflector |
| 2410 | 291005581 | RH Deflector Float |
| 2420 | 291005871 | LH Front Hull Float |
| 2430 | 291005872 | RH Front Hull Float |
| 2500 | 291005286 | Hull Deflector Extension |
| 2505 | 250001183 | Hex Sems Screw M6X30 |
| 2515 | 250200204 | Flat Washer 9/16 |
| 2540 | 292002677 | Gasket |
| 2550 | 291006753 | Hull Deflector Lower Float |
| 2560 | 291005293 | Upper Hull Deflector Float |
| 2600 | 291006183 | Hull Deflector Extension |
| 2610 | 250001164 | Hex SEMS Screw M6X30 |
| 2615 | 250200204 | Flat Washer 9/16 |
| 2620a | 232561200 | Brass Elastic Stop Nut M6 |
| 2630 | 292002677 | Gasket |
| 2640 | 292002390 | Deflector Extension Float |
| 2700 | 291005442 | Underbody Panel |
| 2710a | 232561200 | Brass Elastic Stop Nut M6 |
| 2720 | 292002523 | Gasket |
| 2730 | 292002677 | Gasket |
| 2800 | 292002386 | LH Seperation Panel |
| 2810 | 292002387 | RH Seperation Panel |
| 2820 | 293730006 | Black, Dart |
| 2830 | 269502417 | Strap |
| 2840 | 520002814 | Retaining Strap |
| 2850 | 234062600 | Flat Washer M6, Stainless |
