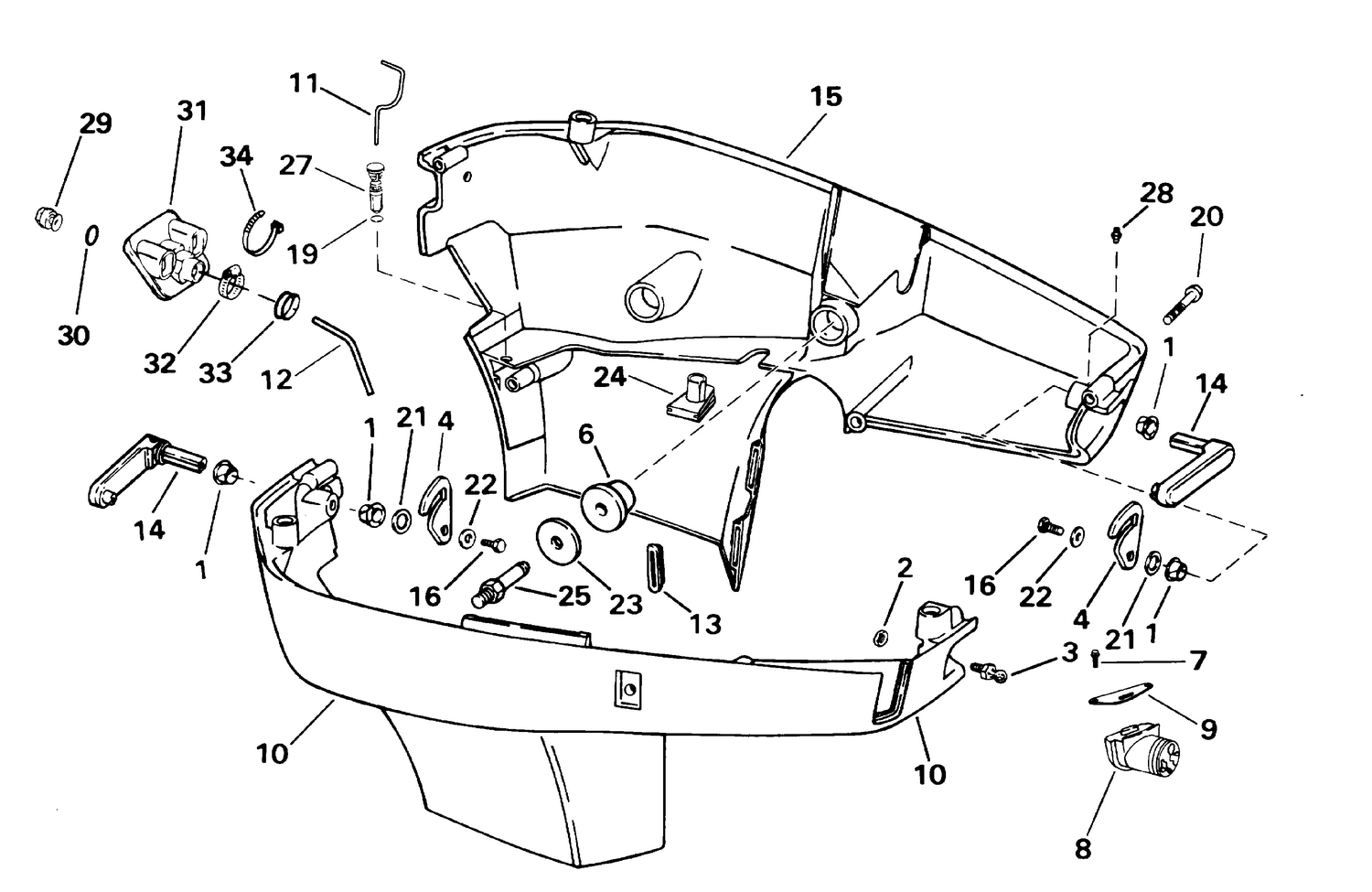

LOWER ENGINE COVER
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 6 | 0349557 | MOUNT This part replaces 0328584. |
| 8 | 0342290 | GROMMET, Control cable entry |
| 9 | 0341099 | BRACKET, Grommet |
| 10 | 5004581 | Lmc Ay This part replaces 0439773. |
| 15 | 5004580 | Lmc Ay This part replaces 0344806. |
| 20 | 0325115 | SCREW, Oil tank/EMM mount |
| 23 | 0349556 | Washer This part replaces 0329749. |
| 25 | 0329743 | STUD, Cover mount |
| 29 | 0436726 | INDICATOR/PLUG, Overboard water |
| 30 | 0301967 | O RING |
| 31 | 0345586 | GROMMET Assy |
| 32 | 0912627 | CLAMP |
| 33 | 0340383 | LINER, Clamp |
