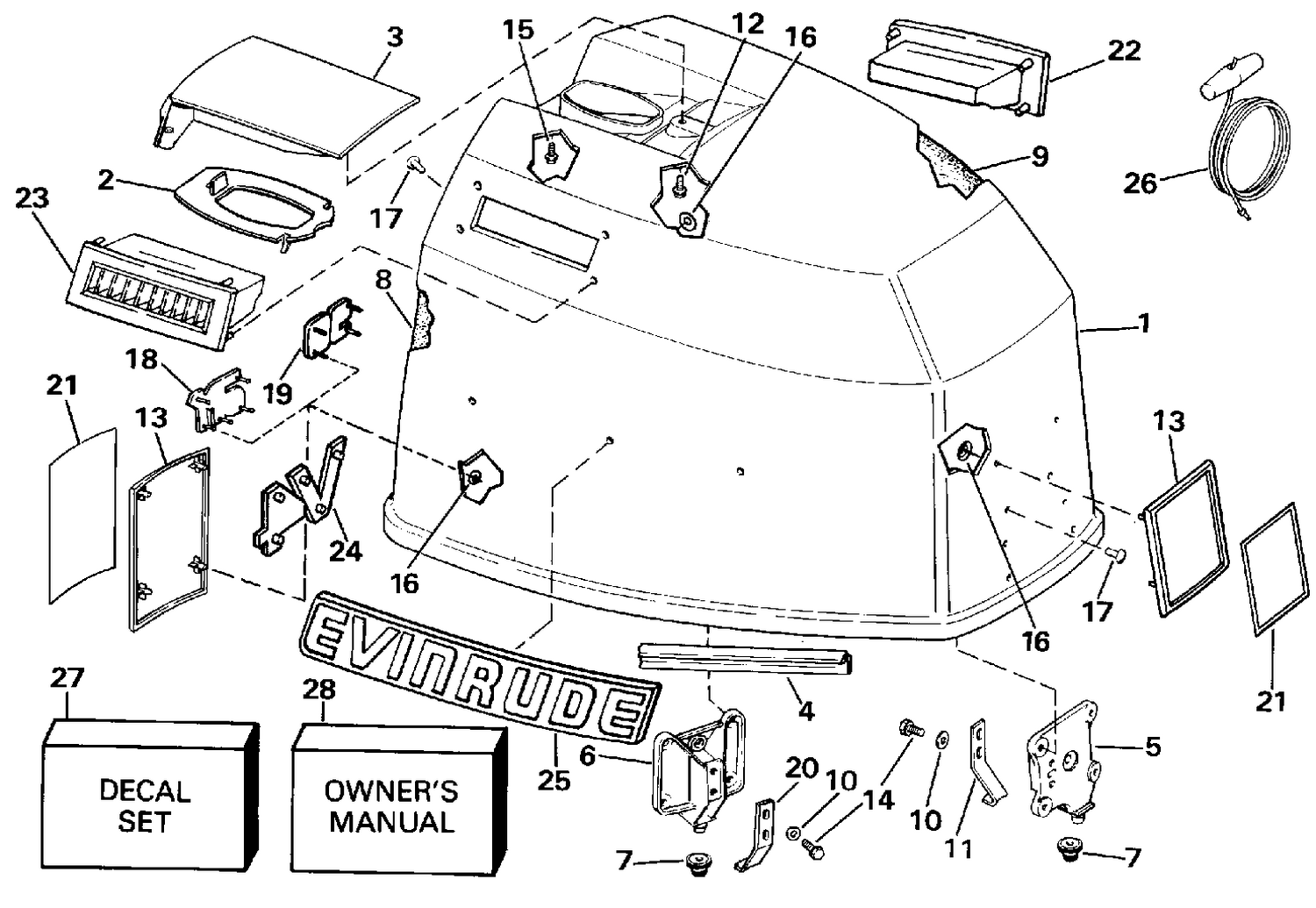

| Ref | Part Number | Description |
|---|
| 1 |
0283619 |
ENGINE COVER ASSY., 90 models |
| 1 |
0283685 |
ENGINE COVER ASSY., 100 models |
| 1 |
0283708 |
ENGINE COVER ASSY., 88 models |
| 1 |
0283766 |
ENGINE COVER ASSY. |
| 1 |
0283945 |
ENGINE COVER ASSY., 115 models |
| 1 |
0283951 |
ENGINE COVER ASSY. |
| 4 |
0329548 |
SEAL |
| 5 |
0389971 |
LOCATING BARCKET, Front |
| 6 |
0394976 |
LOCATING BRACKET, Rear |
| 8 |
0341534 |
SOUND BLANKET, Side This part replaces 0208509. |
| 8 |
0911532 |
SOUND BLANKET, Side, 100 |
| 9 |
0208510 |
SOUND BLANKET, Top |
| 9 |
0911531 |
SOUND BLANKET, Top, 100 |
| 11 |
0323175 |
HOOK , Motor Cover, Front |
| 13 |
0210435 |
APPLIQUE, Front This part replaces 0211240. |
| 13 |
0211372 |
FRAME, Front & rear, 88 models |
| 13 |
0335035 |
APPLIQUE, Front |
| 18 |
0211565 |
APPLIQUE, Rear, 115 models |
| 19 |
0210324 |
APPLIQUE, Engine cover, rear 90 only |
| 21 |
0211241 |
PLATE, Applique, front, 90/110 models |
| 21 |
0211371 |
PLATE, Front & rear, 88 models |
| 21 |
0211425 |
PLATE, Front |
| 21 |
0211581 |
PLATE, Front |
| 22 |
0432828 |
AIR INLET, Port |
| 23 |
0398445 |
AIR INLET, Star This part replaces 0432829. |
| 24 |
0210311 |
APPLIQUE, Front, V4 |
| 25 |
0210305 |
APPLIQUE |
| 26 |
0378347 |
CORDE DE LANCEUR |
| 27 |
0283782 |
DECAL SET |
| 27 |
0283783 |
DECAL SET |
| 27 |
0283784 |
DECAL SET, 100 |
| 27 |
0283818 |
DECAL SET, 90, 110 |
| 28 |
0211105 |
OWNERS MANUAL, 88 models |
| 28 |
0211441 |
OWNERS MANUAL, 90 |
| 28 |
0211445 |
OWNERS MANUAL, 90 |
