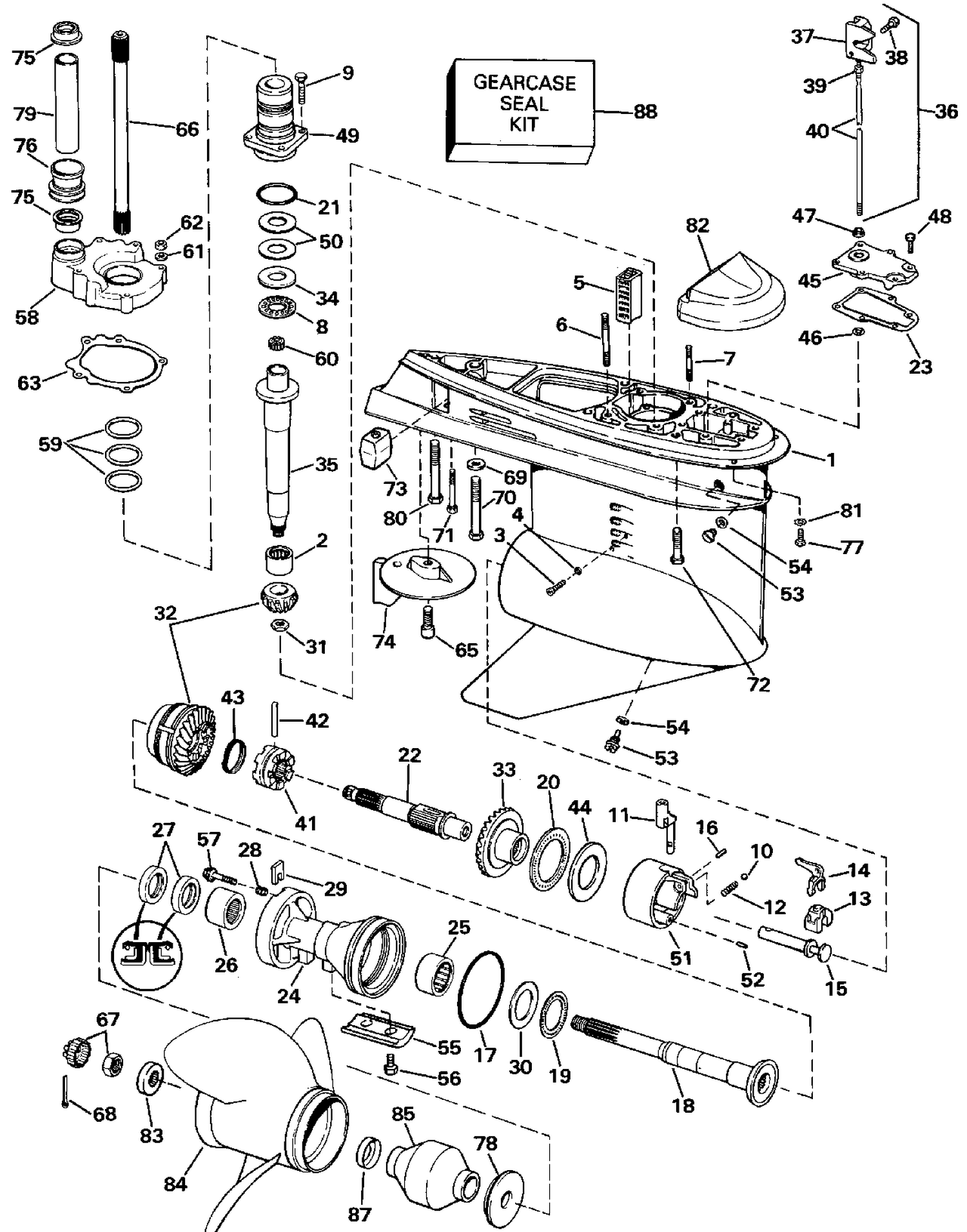

| Ref | Part Number | Description |
|---|
| 6 |
0911713 |
STUD, Housing to gearcase |
| 7 |
0911714 |
STUD, Water passage hsg |
| 17 |
0305123 |
O RING This part replaces 0321119. |
| 18 |
0431943 |
PROPELLER SHAFT ASSY |
| 23 |
0911878 |
GASKET, Cover |
| 24 |
5000073 |
Hsg Ay This part replaces 0431694. |
| 28 |
0910901 |
INSERT |
| 32 |
0987671 |
GEAR SET (Includes forward & pinion) This part replaces 0986665. |
| 33 |
0986666 |
GEAR, Reverse |
| 35 |
0911693 |
DRIVESHAFT ASSY |
| 36 |
0986658 |
SHIFT ROD ASSEMBLY |
| 37 |
0914723 |
ROD END, Shift |
| 39 |
0914743 |
NUT, Shift rod to end |
| 40 |
0914736 |
SHIFT ROD |
| 41 |
0915272 |
SHIFTER, Clutch dog This part replaces 0914716. |
| 45 |
0986838 |
COVER & SEAL ASSY |
| 47 |
0912157 |
WIPER, Shift rod |
| 48 |
0304027 |
VIS, arbre de commande de sens de marche |
| 49 |
0984462 |
BEARING HOUSING |
| 58 |
0915720 |
WATER PASSAGE HSG. This part replaces 0911712. |
| 59 |
0318717 |
O-RING, Bearing hsg |
| 60 |
0911710 |
PLUG, Shaft support |
| 61 |
0329241 |
RONDELLE This part replaces 0305981. |
| 63 |
0915719 |
GASKET, Water passage hsg. This part replaces 0911711. |
| 65 |
0313715 |
SCREW, Cap, hex hd, 7/16-14 x 1 |
| 66 |
0911709 |
DRIVESHAFT |
| 70 |
0331998 |
SCREW, Gearcase to housing This part replaces 0914535. |
| 72 |
3853262 |
SCREW, Lower to upper housing This part replaces 0914536. |
| 74 |
0913157 |
TRIM TAB, Gearcase |
| 75 |
0911705 |
GUIDE, Water tube |
| 76 |
0911715 |
GUIDE, Water tube |
| 78 |
0333592 |
THRUST BUSHING |
| 79 |
0911706 |
TUBE Water supply |
| 80 |
0914534 |
SCREW, Gearcase to housing, rear |
| 82 |
3853818 |
ANODE, Gearcase This part replaces 0984513. |
| 84 |
0174811 |
PROPELLER, 14 1/2 x 19 OMC Viper |
| 84 |
0174812 |
PROPELLER, 14 1/2 X 21 OMC Viper |
| 84 |
0174813 |
LH Viper 14 1/4 x 23 |
| 84 |
0174890 |
PROPELLER 15 x 17 OMC Viper |
| 84 |
0174927 |
PROPELLER, 15 x 15 SST |
| 84 |
0390821 |
PROPELLER, 14 1/2 x 19 SST II |
| 84 |
0390822 |
PROPELLER 14-1/4 X 21 |
| 84 |
0390823 |
PROPELLER 14-1/4 X 23 |
| 84 |
0398502 |
PROPELLER, 14 1/2 X 20 RACKER |
| 84 |
0398503 |
LH Raker 14 1/2 x 22 |
| 84 |
0398504 |
LH Raker 14 1/2 x 24 |
| 84 |
0398505 |
LH Raker 14 1/2 x 26 |
| 84 |
0398506 |
LH Raker 14 1/2 x 28 |
| 84 |
0431930 |
PROPELLER, 15 x 17 SSS II |
| 0986673 |
0987794 |
GEARCASE ASSY., Complete This part replaces 0986673. |
