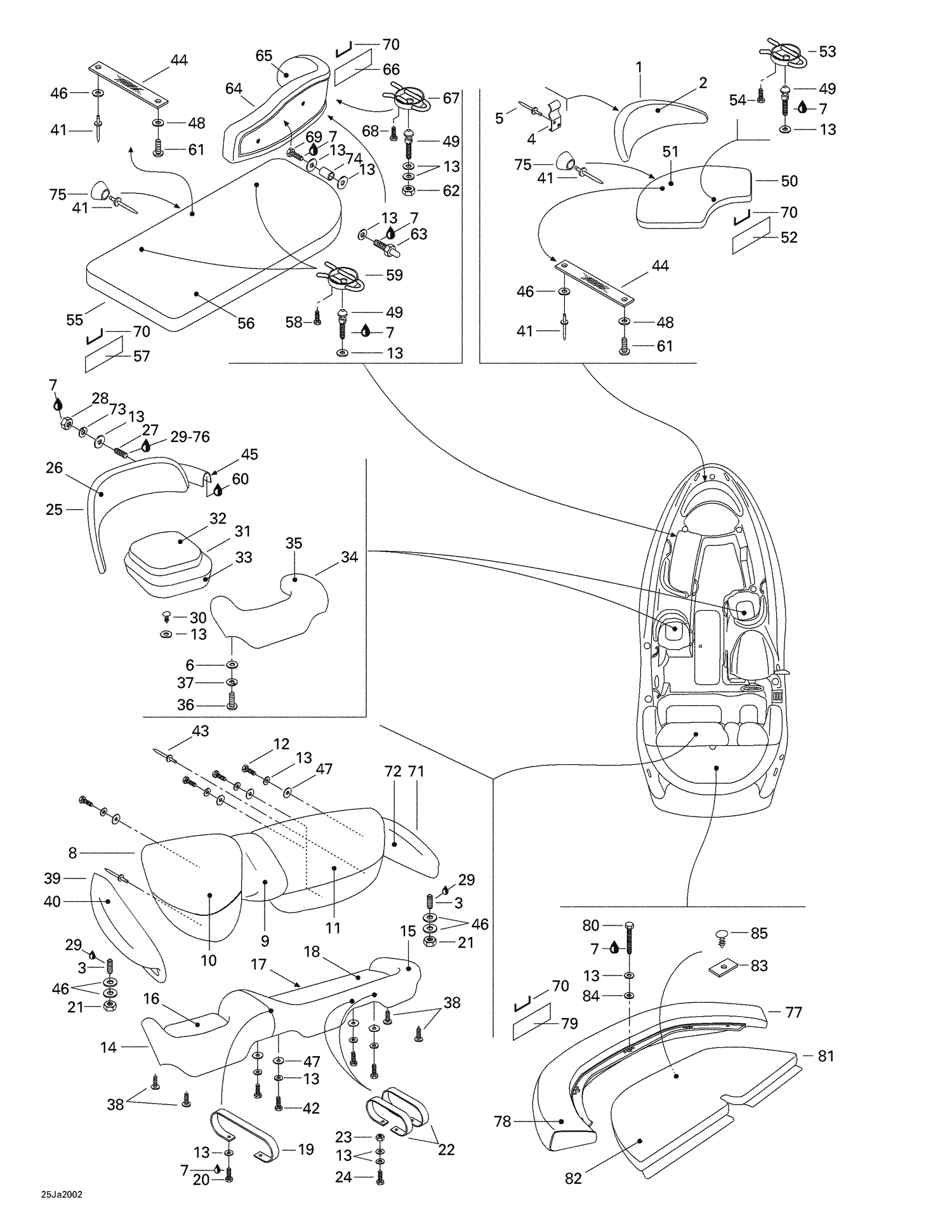

| Ref | Part Number | Description |
|---|
| 2 |
204610443 |
Front Backrest Cover (Turquoise Panama) |
| 3 |
206254060 |
Socket Set Screw M5 x 40 |
| 4 |
269000388 |
SEAT SUPPORT - Call your local BRP dealership |
| 5 |
293150043 |
Pop Rivet 3/16" |
| 6 |
234061600 |
Stainless Flat Washer M6 |
| 7 |
293800060 |
Loctite 243, 10 ml |
| 9 |
204610447 |
Rear Bump Cover (Turquoise Panama) |
| 10 |
204610649 |
Rear Backrest Cover (1 pass.) (White/Emb |
| 11 |
204610650 |
Rear Backrest Cover (White/Serigraphy) |
| 12 |
207364060 |
Hex. Screw M6 X 40, Scotch Grip |
| 13 |
234062600 |
Flat Washer M6, Stainless |
| 15 |
204610450 |
Rear Seat Cover (Turquoise Panama) |
| 16 |
204610653 |
Rear Seat Pillow Cover |
| 18 |
204610655 |
LH Rear Seat Pillow Cover |
| 19 |
204610521 |
Rear Seat Strap (Turquoise Panama) |
| 20 |
207161660 |
Hex. Screw M6 X 16 |
| 21 |
232551600 |
Hex. Elastic Nut M5 |
| 22 |
204610522 |
Rear Seat Strap (Turquoise Panama) |
| 23 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 24 |
207162560 |
Hex. Screw M6 X 25 |
| 26 |
204610452 |
Keeper Seat Backrest Cover |
| 27 |
206253060 |
Set Screw M5 x 30 |
| 28 |
232051600 |
Hex. Nut M5 |
| 29 |
293800005 |
Loctite 271, 10 ml |
| 30 |
293730014 |
Black Dart |
| 32 |
204610657 |
Keeper Seat Cover (Small) |
| 33 |
204610165 |
Keeper Seat Cover (Large) |
| 35 |
204610454 |
Keeper Seat Ring Cover |
| 36 |
209663260 |
Tapping Screw M6.3 X 32 |
| 37 |
234161601 |
Lock Washer Helical M6 |
| 38 |
293730021 |
Dart |
| 40 |
204610919 |
RH Rear Seat Arm-Rest Cover |
| 41 |
293150013 |
Pop Rivet 3/16" |
| 42 |
207364560 |
Hex. Screw M6 x 45, Scotch Grip |
| 43 |
293150065 |
RIVET - Call your local BRP dealership |
| 44 |
293000060 |
Passenger Strap |
| 45 |
204070055 |
BLACK TRIM, METER - Call your local BRP dealership |
| 46 |
234052600 |
Flat Washer 5 mm, Stainless |
| 47 |
234082600 |
Flat Washer 8 mm, Stainless |
| 48 |
234042600 |
Flat Washer 4 mm, Stainless |
| 49 |
204610207 |
Seat Stud |
| 51 |
204610645 |
Center Front Seat Cover (White) |
| 52 |
204610184 |
Staple Cover, Meter |
| 53 |
204610178 |
Front Seat Latch |
| 54 |
205441660 |
Socket Head Screw M4 X 16 |
| 56 |
204610647 |
LH Front Seat Cover (White) |
| 57 |
204610184 |
Staple Cover, Meter |
| 58 |
205441660 |
Socket Head Screw M4 X 16 |
| 59 |
204610178 |
Front Seat Latch |
| 61 |
241140060 |
Screw K40 X 10 |
| 62 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 63 |
204610257 |
Backrest Pin |
| 65 |
204610445 |
LH Front Backrest Cover |
| 66 |
204610184 |
Staple Cover, Meter |
| 67 |
204610178 |
Front Seat Latch |
| 68 |
205441660 |
Socket Head Screw M4 X 16 |
| 69 |
208663060 |
PHILLIPS SCREW M6 X 30 - Call your local BRP dealership |
| 70 |
293730005 |
Staple |
| 72 |
204610921 |
LH Rear Seat Arm-Rest Cover |
| 73 |
234151601 |
Helical Lock Washer M5 |
| 74 |
277000584 |
SPACER 6.7 MM - Call your local BRP dealership |
| 75 |
293830043 |
Rubber Stopper |
| 76 |
219704458 |
Was 293800041 Loctite Primer 7649 |
| 78 |
204610721 |
Spoiler Cover (Turquoise Panama) |
| 79 |
204610184 |
Staple Cover, Meter |
| 80 |
207362560 |
Hex. Screw M6 X 25, Scotch Grip |
| 82 |
204610725 |
Platform Cover (White) |
| 83 |
204610194 |
Strap |
| 84 |
234002600 |
Flat Washer 10 mm, Stainless |
