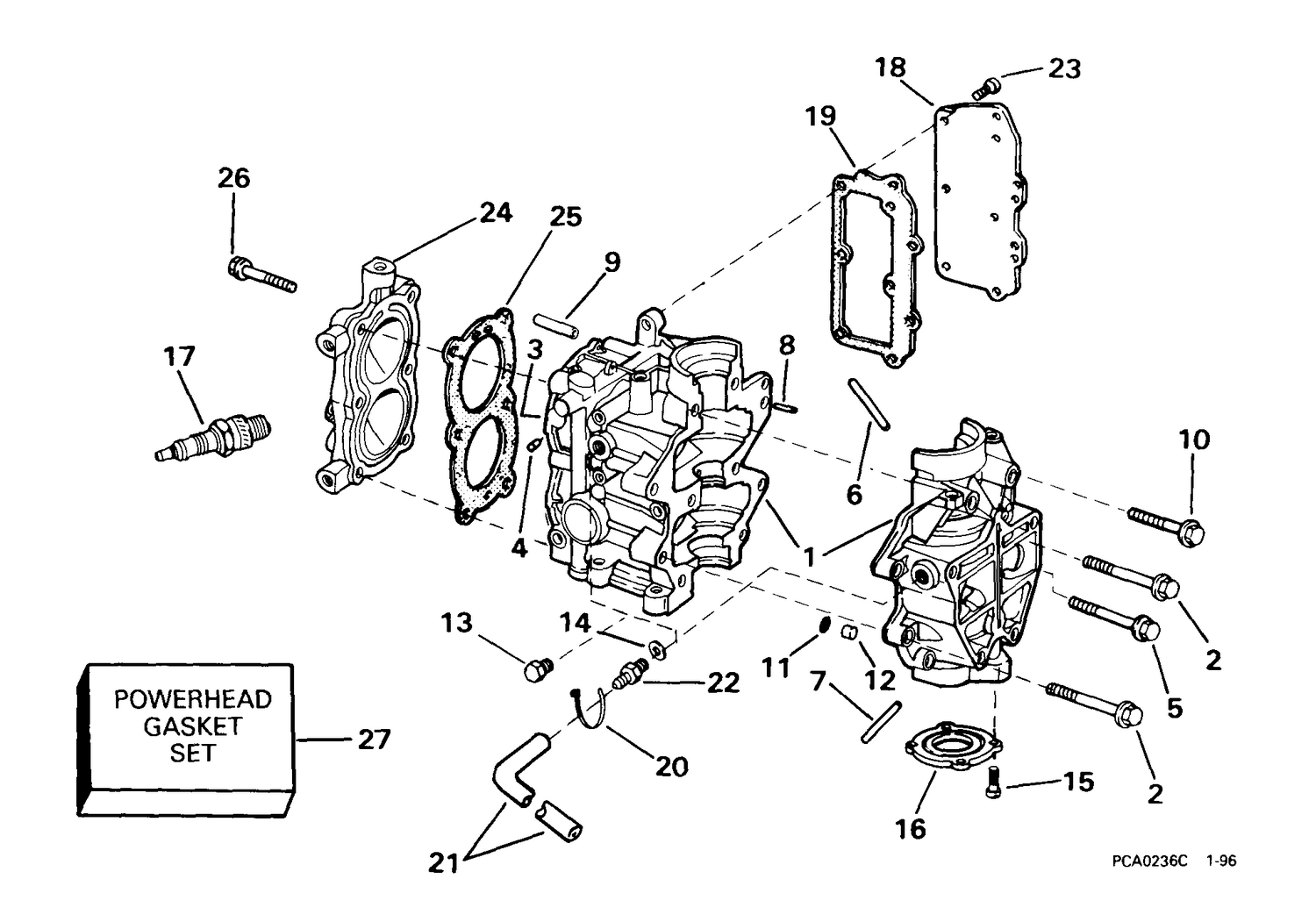

CYLINDER & CRANKCASE
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0435346 | CYLINDER & C'CASE ASSY. |
| 14 | 0303107 | RONDELLE NYLON, barre |
| 16 | 0336984 | LOWER HOUSING |
| 17 | 0437682 | SPARK PLUG, Champion QL86C |
| 17 | 0502180 | SPARK PLUG, Champion QL77JC4 This part replaces 0387633. |
| 18 | 0323263 | PLATE, EXH COVER |
| 19 | 0323445 | GASKET, Cover plate |
| 20 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 21 | 0338128 | HOSE, Pulse |
| 22 | 0326544 | NIPPLE, Pulse |
| 24 | 0335841 | CYLINDER HEAD |
| 25 | 0332010 | GASKET, Cylinder head |
