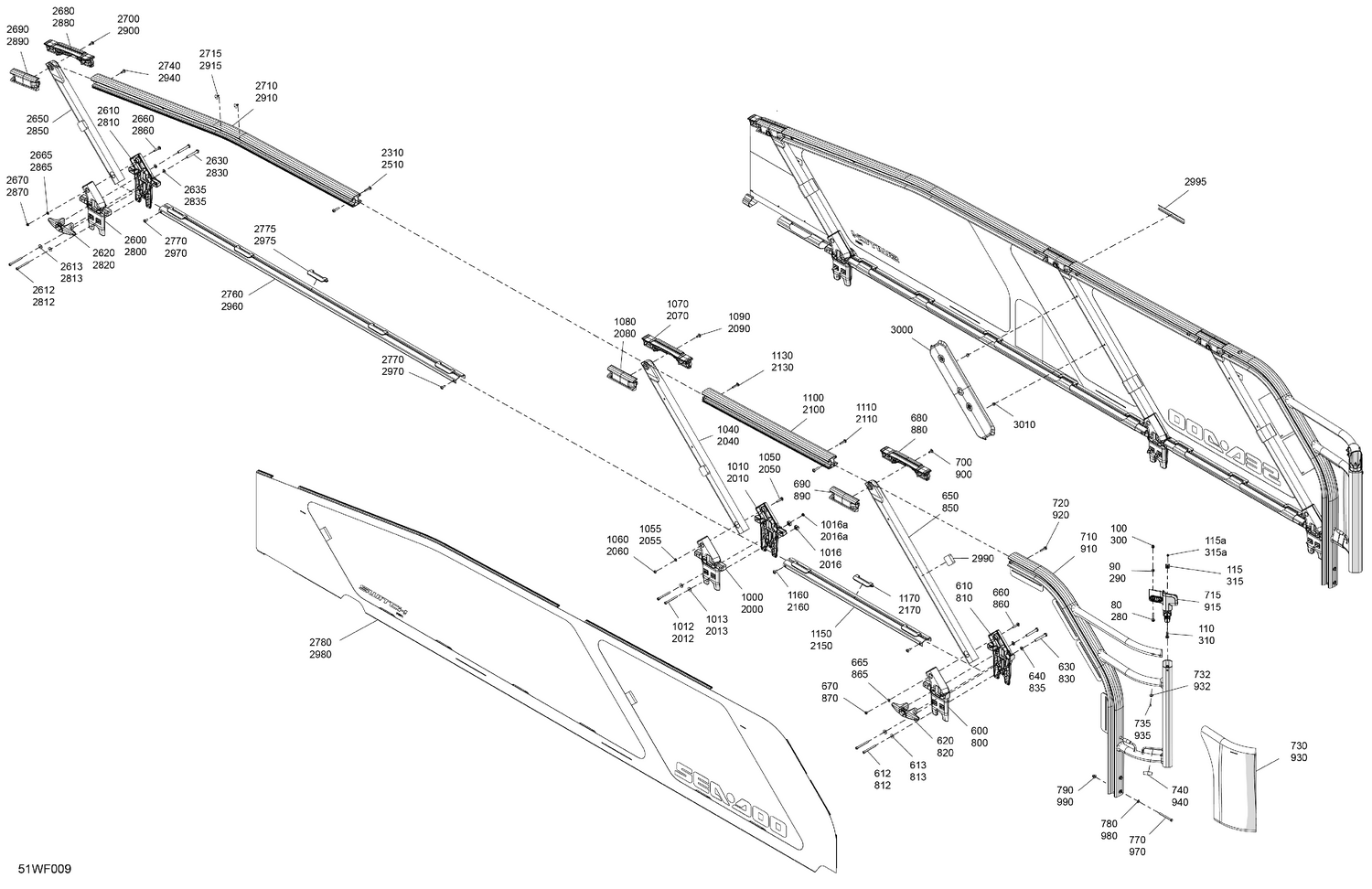

| Ref | Part Number | Description |
|---|
| 80 |
250000827 |
Torx Screw Truss Cone HD.M6X50 |
| 90 |
234061600 |
Stainless Flat Washer M6 |
| 100 |
232161600 |
Hexagonal Jam Nut M6 |
| 110 |
250001217 |
Cone Torx Truss Screw HD.M6 X 35 |
| 115a |
232561200 |
Brass Elastic Stop Nut M6 |
| 280 |
250000827 |
Torx Screw Truss Cone HD.M6X50 |
| 290 |
234061600 |
Stainless Flat Washer M6 |
| 300 |
232161600 |
Hexagonal Jam Nut M6 |
| 310 |
250001217 |
Cone Torx Truss Screw HD.M6 X 35 |
| 315a |
232561200 |
Brass Elastic Stop Nut M6 |
| 600 |
281300439 |
LH Rear Rail Support |
| 610 |
281300441 |
RH Rear Rail Support |
| 612 |
205066560 |
Socket Head Screw M6 X 65 |
| 613 |
234062600 |
Flat Washer M6, Stainless |
| 620 |
291005668 |
Cleat |
| 630 |
250000187 |
Hex. Screw M8 X 60, Scotch Grip |
| 640 |
234081600 |
Stainless, Flat Washer 8 mm |
| 650 |
281300172 |
Rear Profiled Tube |
| 660 |
250000924 |
Truss Cone Torx Screw M6 X 30 |
| 665 |
234061600 |
Stainless Flat Washer M6 |
| 670 |
232561200 |
Brass Elastic Stop Nut M6 |
| 680 |
281300244 |
Interior End Piece |
| 690 |
281300247 |
Exterior Cover |
| 700 |
250001147 |
Cone Torx Truss Screw HD.M6 X 15 |
| 710 |
281300664 |
LH Rear Guard Rail |
| 715 |
281300667 |
LH Latch Stopper |
| 720 |
250001146 |
Cone Torx Truss Screw HD.M6 X 30 |
| 730 |
281300771 |
LH Rear Balustrade |
| 732 |
293730102 |
Fastener Snap |
| 735 |
293150285 |
Pop RIvet 1/8 X ,375 |
| 740 |
281300598 |
Rear Balustrade Fastener |
| 770 |
207067060 |
Hex. Screw M6 X 70 |
| 780 |
234061600 |
Stainless Flat Washer M6 |
| 790 |
233261200 |
Nut Flange Elastic M6 |
| 800 |
281300439 |
LH Rear Rail Support |
| 810 |
281300441 |
RH Rear Rail Support |
| 812 |
205066560 |
Socket Head Screw M6 X 65 |
| 813 |
234062600 |
Flat Washer M6, Stainless |
| 820 |
291005668 |
Cleat |
| 830 |
250000187 |
Hex. Screw M8 X 60, Scotch Grip |
| 835 |
234081600 |
Stainless, Flat Washer 8 mm |
| 850 |
281300172 |
Rear Profiled Tube |
| 860 |
250000924 |
Truss Cone Torx Screw M6 X 30 |
| 865 |
234061600 |
Stainless Flat Washer M6 |
| 870 |
232561200 |
Brass Elastic Stop Nut M6 |
| 880 |
281300244 |
Interior End Piece |
| 890 |
281300247 |
Exterior Cover |
| 900 |
250001147 |
Cone Torx Truss Screw HD.M6 X 15 |
| 910 |
281300784 |
RH Rear Guard Rail |
| 915 |
281300783 |
RH Latch Stopper |
| 920 |
250001146 |
Cone Torx Truss Screw HD.M6 X 30 |
| 930 |
281300772 |
RH Rear Balustrade |
| 932 |
293730102 |
Fastener Snap |
| 935 |
293150285 |
Pop RIvet 1/8 X ,375 |
| 940 |
281300598 |
Rear Balustrade Fastener |
| 970 |
207067060 |
Hex. Screw M6 X 70 |
| 980 |
234061600 |
Stainless Flat Washer M6 |
| 990 |
233261200 |
Nut Flange Elastic M6 |
| 1000 |
281300241 |
LH Rail Support |
| 1010 |
281300237 |
RH Rail Support |
| 1012 |
205066560 |
Socket Head Screw M6 X 65 |
| 1013 |
234062600 |
Flat Washer M6, Stainless |
| 1016a |
232561200 |
Brass Elastic Stop Nut M6 |
| 1040 |
281300180 |
Central Profiled Tube |
| 1050 |
250000924 |
Truss Cone Torx Screw M6 X 30 |
| 1055 |
234061600 |
Stainless Flat Washer M6 |
| 1060 |
232561200 |
Brass Elastic Stop Nut M6 |
| 1070 |
281300244 |
Interior End Piece |
| 1080 |
281300247 |
Exterior Cover |
| 1090 |
250001147 |
Cone Torx Truss Screw HD.M6 X 15 |
| 1100 |
281300190 |
Lateral Hand Rail |
| 1110 |
250001146 |
Cone Torx Truss Screw HD.M6 X 30 |
| 1130 |
250001146 |
Cone Torx Truss Screw HD.M6 X 30 |
| 1150 |
281300176 |
Lower Rear Profile Tube |
| 1160 |
250001147 |
Cone Torx Truss Screw HD.M6 X 15 |
| 1170 |
281300811 |
Balustrade Anchor |
| 2000 |
281300241 |
LH Rail Support |
| 2010 |
281300237 |
RH Rail Support |
| 2012 |
205066560 |
Socket Head Screw M6 X 65 |
| 2013 |
234062600 |
Flat Washer M6, Stainless |
| 2016a |
232561200 |
Brass Elastic Stop Nut M6 |
| 2040 |
281300180 |
Central Profiled Tube |
| 2050 |
250000924 |
Truss Cone Torx Screw M6 X 30 |
| 2055 |
234061600 |
Stainless Flat Washer M6 |
| 2060 |
232561200 |
Brass Elastic Stop Nut M6 |
| 2070 |
281300244 |
Interior End Piece |
| 2080 |
281300247 |
Exterior Cover |
| 2090 |
250001147 |
Cone Torx Truss Screw HD.M6 X 15 |
| 2100 |
281300190 |
Lateral Hand Rail |
| 2110 |
250001146 |
Cone Torx Truss Screw HD.M6 X 30 |
| 2130 |
250001146 |
Cone Torx Truss Screw HD.M6 X 30 |
| 2150 |
281300176 |
Lower Rear Profile Tube |
| 2160 |
250001147 |
Cone Torx Truss Screw HD.M6 X 15 |
| 2170 |
281300811 |
Balustrade Anchor |
| 2310 |
250001146 |
Cone Torx Truss Screw HD.M6 X 30 |
| 2510 |
250001146 |
Cone Torx Truss Screw HD.M6 X 30 |
| 2600 |
281300241 |
LH Rail Support |
| 2610 |
281300237 |
RH Rail Support |
| 2612 |
205066560 |
Socket Head Screw M6 X 65 |
| 2613 |
234062600 |
Flat Washer M6, Stainless |
| 2620 |
291005668 |
Cleat |
| 2630 |
250000187 |
Hex. Screw M8 X 60, Scotch Grip |
| 2635 |
234081600 |
Stainless, Flat Washer 8 mm |
| 2650 |
281300182 |
Front Profiled Tube |
| 2660 |
250000924 |
Truss Cone Torx Screw M6 X 30 |
| 2665 |
234061600 |
Stainless Flat Washer M6 |
| 2670 |
232561200 |
Brass Elastic Stop Nut M6 |
| 2680 |
281300244 |
Interior End Piece |
| 2690 |
281300247 |
Exterior Cover |
| 2700 |
250001147 |
Cone Torx Truss Screw HD.M6 X 15 |
| 2710 |
281300795 |
LH Front Side Hand Rail |
| 2715 |
414644300 |
Black, Dart |
| 2740 |
250001147 |
Cone Torx Truss Screw HD.M6 X 15 |
| 2760 |
281300178 |
Lower Profile Tube |
| 2770 |
250001147 |
Cone Torx Truss Screw HD.M6 X 15 |
| 2775 |
281300811 |
Balustrade Anchor |
| 2780 |
281300646 |
LH Side Balustrade Ass'y |
| 2800 |
281300241 |
LH Rail Support |
| 2810 |
281300237 |
RH Rail Support |
| 2812 |
205066560 |
Socket Head Screw M6 X 65 |
| 2813 |
234062600 |
Flat Washer M6, Stainless |
| 2820 |
291005668 |
Cleat |
| 2830 |
250000187 |
Hex. Screw M8 X 60, Scotch Grip |
| 2835 |
234081600 |
Stainless, Flat Washer 8 mm |
| 2850 |
281300182 |
Front Profiled Tube |
| 2860 |
250000924 |
Truss Cone Torx Screw M6 X 30 |
| 2865 |
234061600 |
Stainless Flat Washer M6 |
| 2870 |
232561200 |
Brass Elastic Stop Nut M6 |
| 2880 |
281300244 |
Interior End Piece |
| 2890 |
281300247 |
Exterior Cover |
| 2900 |
250001147 |
Cone Torx Truss Screw HD.M6 X 15 |
| 2910 |
281300791 |
RH Front Side Hand Rail |
| 2915 |
414644300 |
Black, Dart |
| 2940 |
250001147 |
Cone Torx Truss Screw HD.M6 X 15 |
| 2960 |
281300178 |
Lower Profile Tube |
| 2970 |
250001147 |
Cone Torx Truss Screw HD.M6 X 15 |
| 2975 |
281300811 |
Balustrade Anchor |
| 2980 |
281300648 |
RH Side Balustrade Ass'y |
| 2990 |
281300506 |
Balustrade Support |
| 2995 |
293740076 |
Velcro Strip 150MM |
| 3000 |
281300852 |
Support Label |
