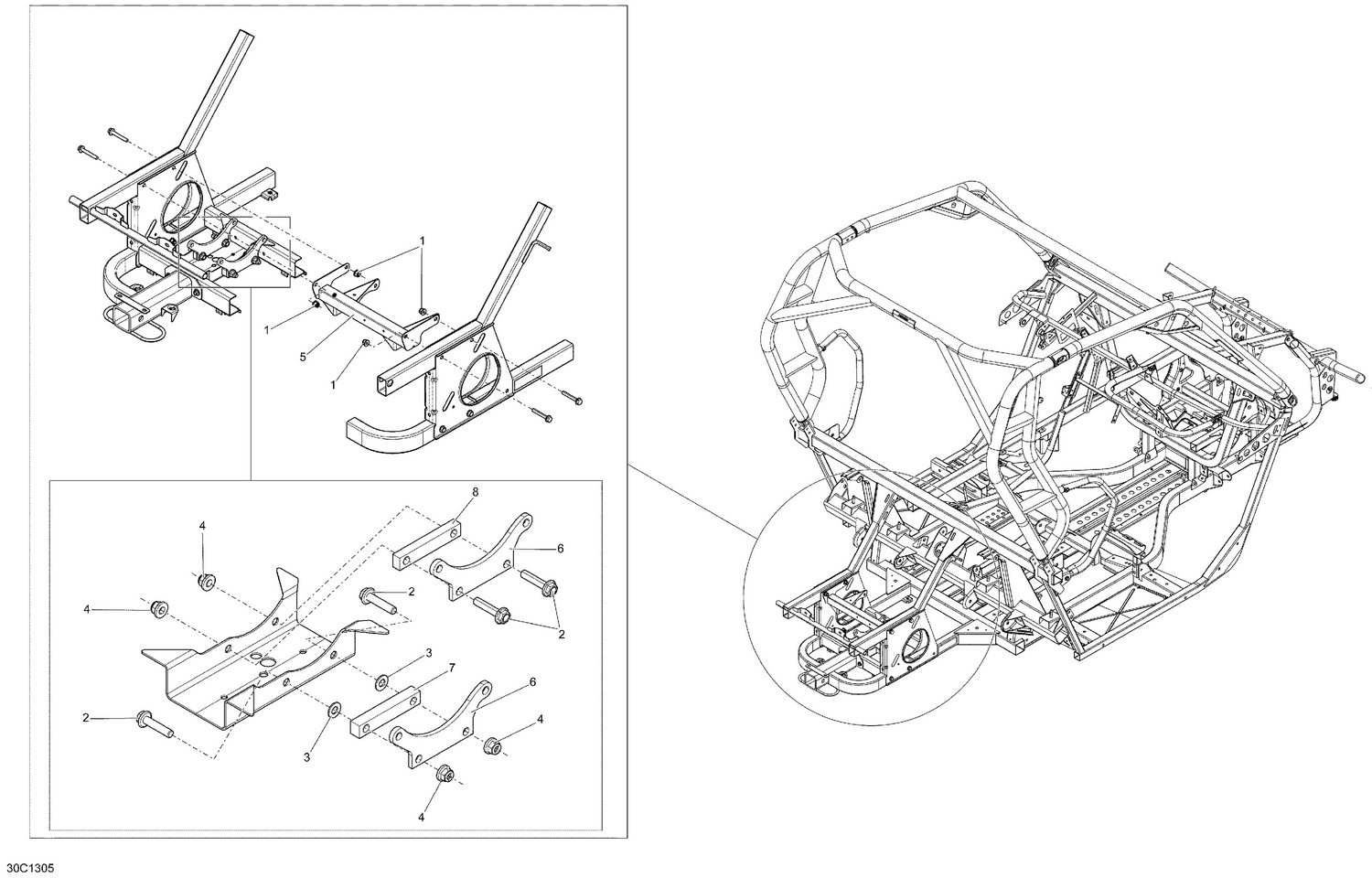

09- Frame (Supplement-IS Market)
Parts (7)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 233281414 | Hex. Flange Elastic Nut M8 |
| 2 | 207604544 | HEX. FLANGED SCREW M10 X 45 - Call your local BRP dealership |
| 3 | 234001410 | Flat Washer 10 mm |
| 4 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 5 | 705202876 | REAR DIFFERENTIAL SUPPORT - Call your local BRP dealership |
| 6 | 705203273 | Inferior Differential Support |
| 7 | 705203274 | RH Inferior Differential Support |
