| Ref | Part Number | Description |
|---|
| 1 |
0396394 |
INTAKE MANIFOLD ASSEMBLY This part replaces 0394366. |
| 3 |
0314956 |
STUD |
| 4 |
0330115 |
CLAMP, Power pack connector |
| 5 |
0329594 |
SCREW, Cam follower |
| 7 |
0392988 |
CHECK VALVE |
| 8 |
CARB. |
ASSY., Lower |
| 9 |
CARB. |
ASSY., Upper |
| 10 |
CARB. |
ASSY., Middle |
| 11 |
0389823 |
CLAPET |
| 15 |
0320930 |
COVER, Air silencer |
| 16 |
0320575 |
ADJ LEVER, Throttle link |
| 17 |
5007356 |
Kit Ay This part replaces 0582865. |
| 22 |
0511807 |
COVER&GASKET AY |
| 23 |
0333448 |
GASKET This part replaces 0511808. |
| 25 |
0333448 |
GASKET This part replaces 0511810. |
| 31 |
0511806 |
HOUSING |
| 32 |
0321907 |
GASKET, Leaf plate |
| 33 |
0313329 |
LOCKWASHER, Carburetor link |
| 34 |
0322722 |
FILLER BLOCK, 175, 185, 235 |
| 36 |
0330665 |
THROTTLE AM |
| 37 |
0133451 |
SCREW, Leaf plate manifold, short |
| 38 |
HOSE, |
Air silencer 6-1/2" long |
| 40 |
0306418 |
VIS, ancrage |
| 42 |
0328695 |
CLAMP, Engine cable |
| 44 |
0330118 |
CLAMP |
| 45 |
0319292 |
SCREW, Clamp |
| 46 |
0319771 |
GASKET SET, Air silencer |
| 47 |
0327707 |
GASKET, Air silencer |
| 48 |
0328738 |
LOCKWASHER |
| 49 |
0321183 |
GASKET, Cover |
| 50 |
0432272 |
LINK AND PIN, Throttle arm This part replaces 0394723. |
| 54 |
0328733 |
RONDELLE ÉLASTIQUE, levier de sens de marche |
| 55 |
0314416 |
BUMBER, Advance screw |
| 56 |
0328722 |
SCREW, Spark adjust |
| 60 |
0328742 |
NUT |
| 61 |
0391254 |
BASE, Air silencer |
| 62 |
0325388 |
RETAINER, Air silencer base |
| 65 |
HOSE, |
Primer solenoid system |
| 66 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0316386. |
| 67 |
0325569 |
T, amorçage |
| 69 |
0325564 |
CONNECTOR, Drain hose |
| 70 |
0329182 |
VIS, borne |
| 71 |
0329718 |
GASKET, Manifold to c'case |

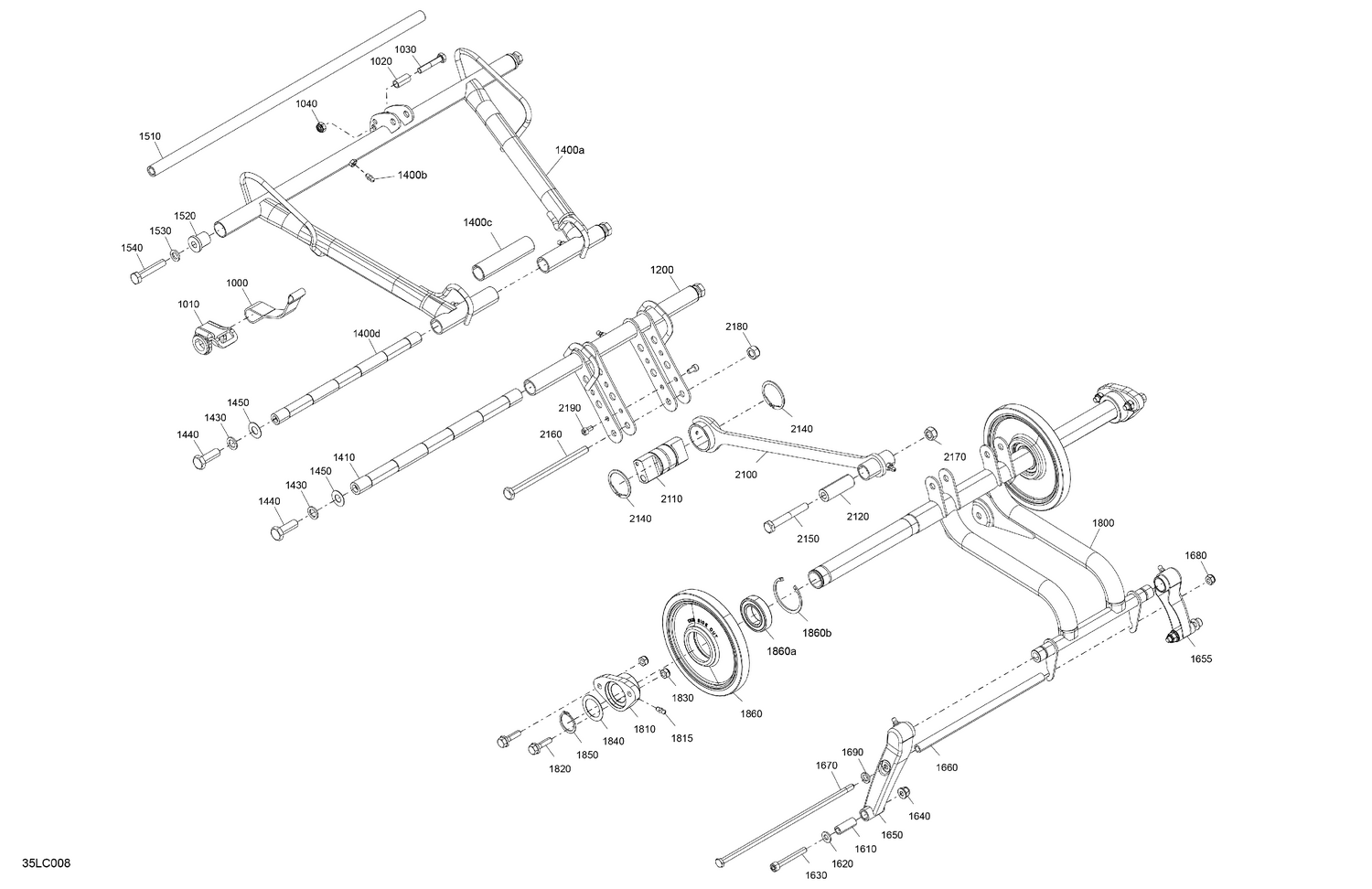

| 1000 |
503195869 |
Strap Stopper |
| 1010 |
503194867 |
Holder, Limiter Strap |
| 1020 |
605455335 |
Sleeve |
| 1030 |
207084544 |
Hex. Screw M8 X 45 |
| 1040 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 1200 |
503195612 |
Rocker Ass'y |
| 1400a |
503195457 |
Front Suspension Arm |
| 1400b |
408200700 |
Grease Fitting |
| 1400c |
503195601 |
Lower Tube |
| 1400d |
503194641 |
Lower Shaft |
| 1410 |
503194641 |
Lower Shaft |
| 1430 |
503192491 |
Washer |
| 1440 |
250000537 |
Hex. Cap Screw M12 X 35 |
| 1450 |
706200281 |
Hardened Washer |
| 1510 |
503191392 |
Upper Shaft |
| 1520 |
503189324 |
Bushing |
| 1530 |
503191926 |
Washer |
| 1540 |
250000605 |
Hex. Screw S.GRIP M10 X 55 |
| 1610 |
503194726 |
Pivot Arm Axle |
| 1620 |
503192494 |
Washer |
| 1630 |
207686044 |
Hex. Flange Screw M8 x 60 |
| 1640 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 1650 |
503195306 |
LH Rear Swing Ass'y |
| 1655 |
503195307 |
RH Rear Swing Ass'y |
| 1660 |
503195343 |
Spacer |
| 1670 |
503195342 |
Bolt M8 |
| 1680 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 1690 |
250200111 |
Washer |
| 1800 |
503195608 |
Rear Arm |
| 1810 |
503195042 |
Cushion |
| 1815 |
408200700 |
Grease Fitting |
| 1820 |
207683054 |
Hex. Flange Screw M8 X 30 |
| 1830 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 1840 |
503195150 |
Shim Ring 30X42X1.0 |
| 1850 |
293370143 |
Circlip |
| 1860a |
503191778 |
Ball Bearing |
| 1860b |
415129598 |
Retaining Ring |
| 2100 |
503195862 |
Link Rod |
| 2110 |
503195629 |
Rod |
| 2120 |
503195628 |
Rod |
| 2140 |
293370055 |
Circlip |
| 2150 |
207007544 |
Hex. Screw M10 x 75 |
| 2160 |
230006034 |
Hex. Screw M10 X 160 |
| 2170 |
232500416 |
Elastic Stop Nut M10 |
| 2180 |
232500416 |
Elastic Stop Nut M10 |
