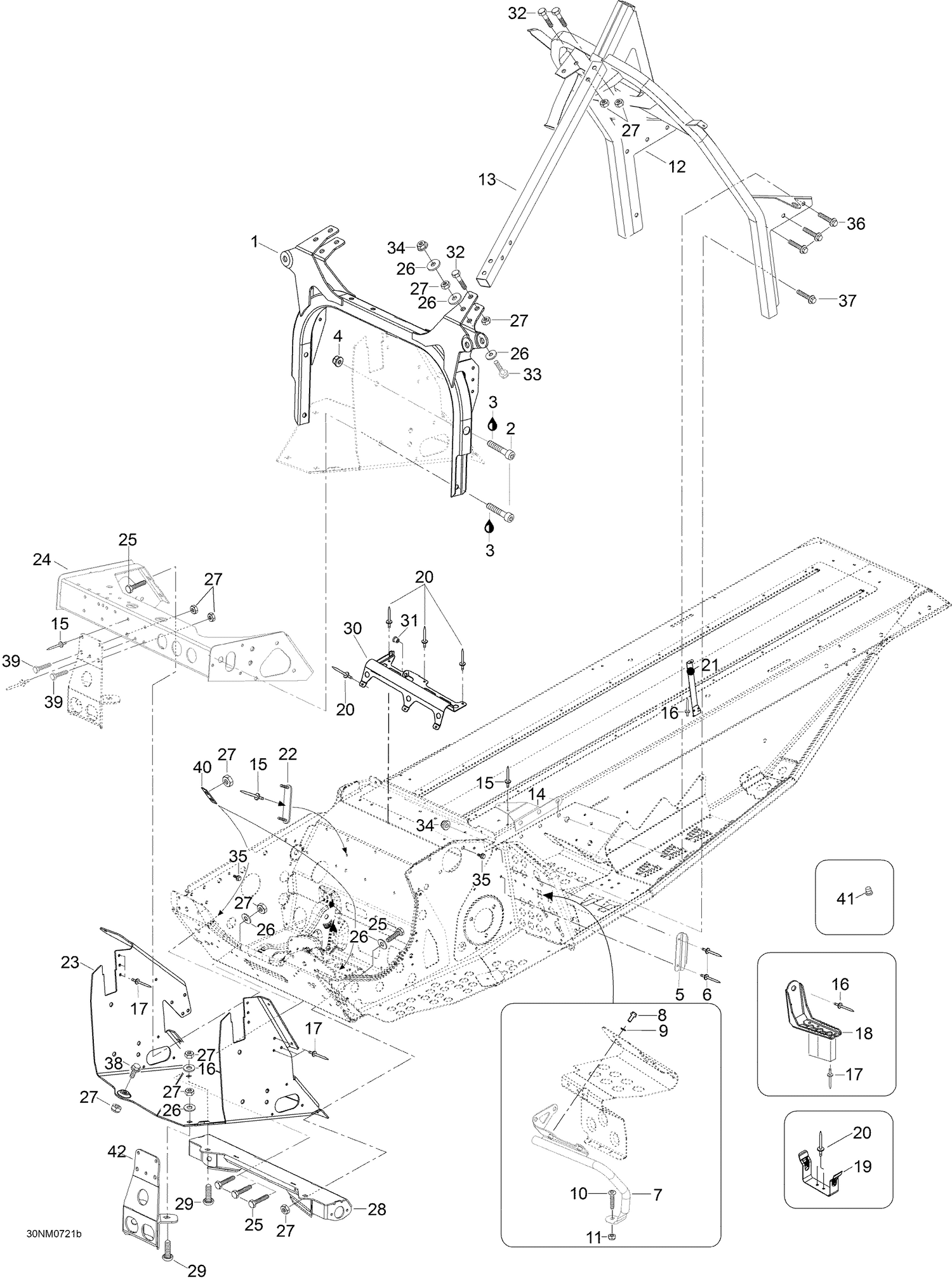

09- Frame And Components
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 605253709 | Support |
| 2 | 40810 | Socket head screw M8 x 20 |
| 3 | 293800060 | Liima Loctite 243 50ml |
| 4 | 233281414 | Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 5 | 518317504 | CABLE PROTECTOR - Call your local BRP dealership |
| 6 | 36489 | Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 7 | 605351594 | L.H. Toe hold support |
| 7 | 605351595 | R.H. Toe hold support |
| 8 | 40381 | Socket head screw M6 x 20 |
| 9 | 20117 | Washer |
| 10 | 40399 | Socket head screw M8 x 16 |
| 11 | 232581414 | Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 12 | 605250887 | Handle support |
| 13 | 605353547 | Side bar |
| 14 | 605353555 | L.H. Bracket |
| 14 | 605353556 | R.H. Bracket |
| 15 | 36108 | Rivet |
| 16 | 36489 | Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 17 | 605636005 | Rivet |
| 18 | 605353938 | L.H. Side bracket |
| 18 | 605353939 | R.H. Side bracket |
| 19 | 518322726 | GUARD BELT BRACKET, BLACK - Call your local BRP dealership |
| 20 | 36083 | Rivet |
| 21 | 605351612 | L.H. Steel strip |
| 21 | 605351613 | R.H. Steel strip |
| 22 | 605451470 | Bracket, fuel pump |
| 23 | 605253545 | Front cross member |
| 24 | 605255143 | Front support |
| 25 | 40037 | Screw M8 x 25 |
| 26 | 234082410 | Flat Washer 8 mm This part replaces 20010. |
| 27 | 232581414 | Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 28 | 605254414 | Subframe |
| 29 | 40058 | Locking screw M8 x 20 |
| 30 | 518323532 | INTAKE AIR ADMISSION SUPPORT - Call your local BRP dealership |
| 31 | 36086 | Rivet nut M6 |
| 32 | 207084544 | Hex. Screw M8 X 45 This part replaces 40008. |
| 33 | 40123 | Screw M8 x 70 |
| 34 | 233281414 | Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 35 | 40327 | Screw M6 x 12 |
| 36 | 605640008 | Screw M8 x 20 |
| 37 | 40336 | HEX. SCREW M8 X 20 - Call your local BRP dealership |
| 38 | 40386 | Screw M8 x 30 |
| 39 | 40030 | Screw M6 x 20 |
| 40 | 605452373 | Washer |
| 41 | 518321954 | Plug |
