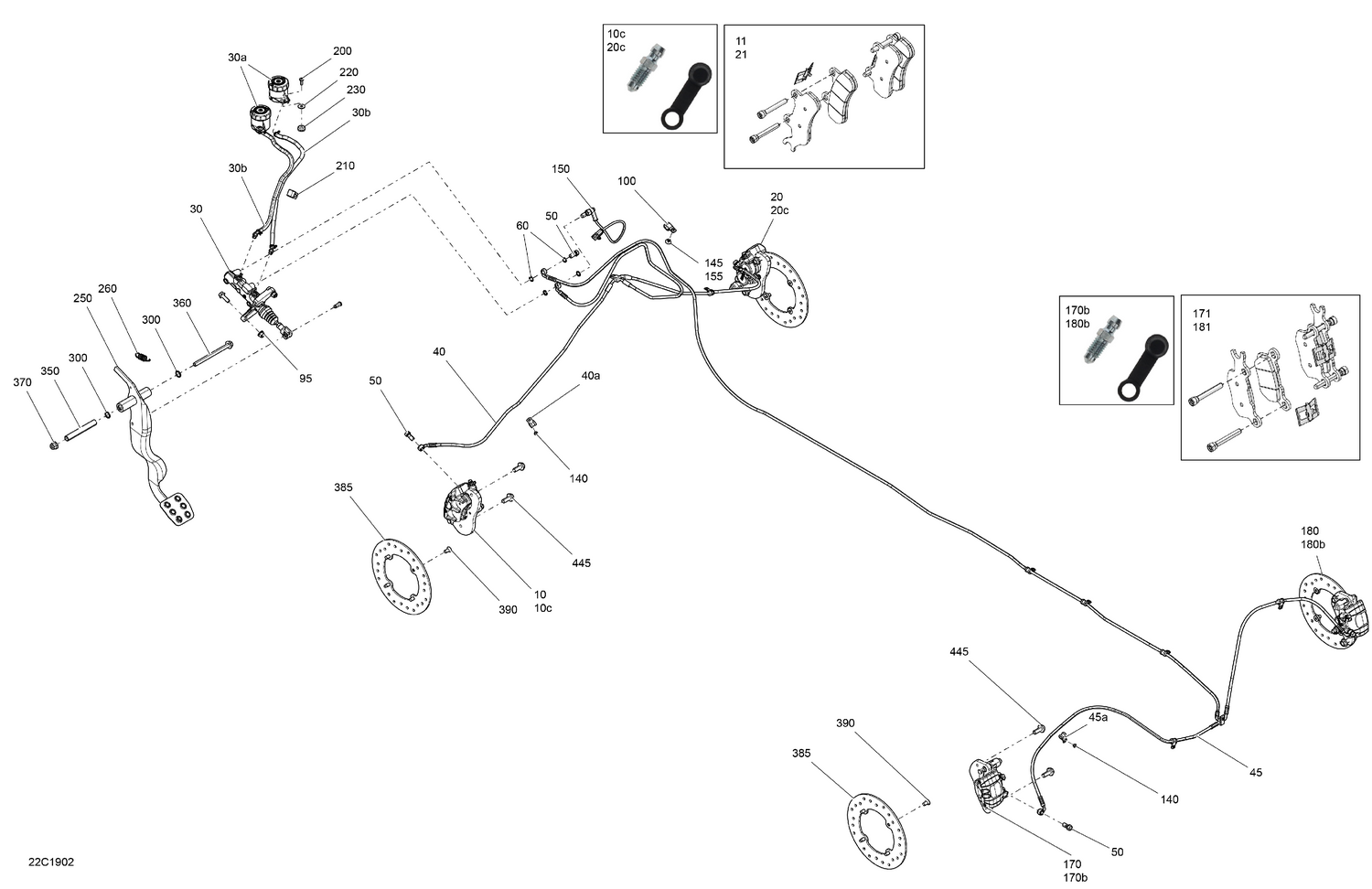

06- Brakes - HD8
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 705602180 | LH Front Brake Caliper This part replaces 705601462. |
| 10c | 705601017 | Bleeding Screw |
| 11 | 703501198 | LH/RH Front Brake Pad Set |
| 20 | 705602181 | RH Front Brake Caliper This part replaces 705601463. |
| 20c | 705601017 | Bleeding Screw |
| 21 | 703501198 | LH/RH Front Brake Pad Set |
| 30 | 705602157 | Master Cylinder Ass'y This part replaces 705601549. |
| 30a | 705601020 | Oil Tank |
| 30b | 705601019 | Oil Housing Hose |
| 40a | 293650256 | Clamp |
| 50 | 705600609 | Banjo Bolt (M10 x 1.25 thread) |
| 60 | 705601628 | Copper Washer |
| 95 | 233281414 | Hex. Flange Elastic Nut M8 |
| 100 | 293650220 | Clamp |
| 140 | 390402200 | Pop Rivet 3/16" |
| 145 | 293150104 | Pop Rivet 3/16" |
| 150 | 705601250 | Brake Switch |
| 155 | 207361644 | Hex. Screw M6 X 16, Scotch Grip |
| 170 | 705601928 | LH Rear Brake Caliper This part replaces 705601464. |
| 170b | 705601017 | Bleeding Screw |
| 171 | 703501200 | Rear Brake Pad Set |
| 180 | 705601929 | RH Rear Brake Caliper This part replaces 705601465. |
| 180b | 705601017 | Bleeding Screw |
| 181 | 703501200 | Rear Brake Pad Set |
| 200 | 250000720 | Torx Screw K50 X 16 |
| 210 | 515175507 | Open Clamp |
| 220 | 250200040 | Flat Washer |
| 230 | 414036300 | Grommet |
| 250 | 705601777 | Brake Pedal This part replaces 705601730. |
| 260 | 705600792 | Brake Pedal Spring |
| 300 | 293300144 | O-Ring |
| 350 | 705601373 | Inside Sleeve |
| 360 | 230603046 | Hex. Flange Screw, M10 X 130 |
| 370 | 233201436 | Hex. Flange Elastic Nut M10 |
| 385 | 705601511 | Brake Disc |
| 390 | 235381646 | Torx Screw M8 X 16, Scotch Grip |
