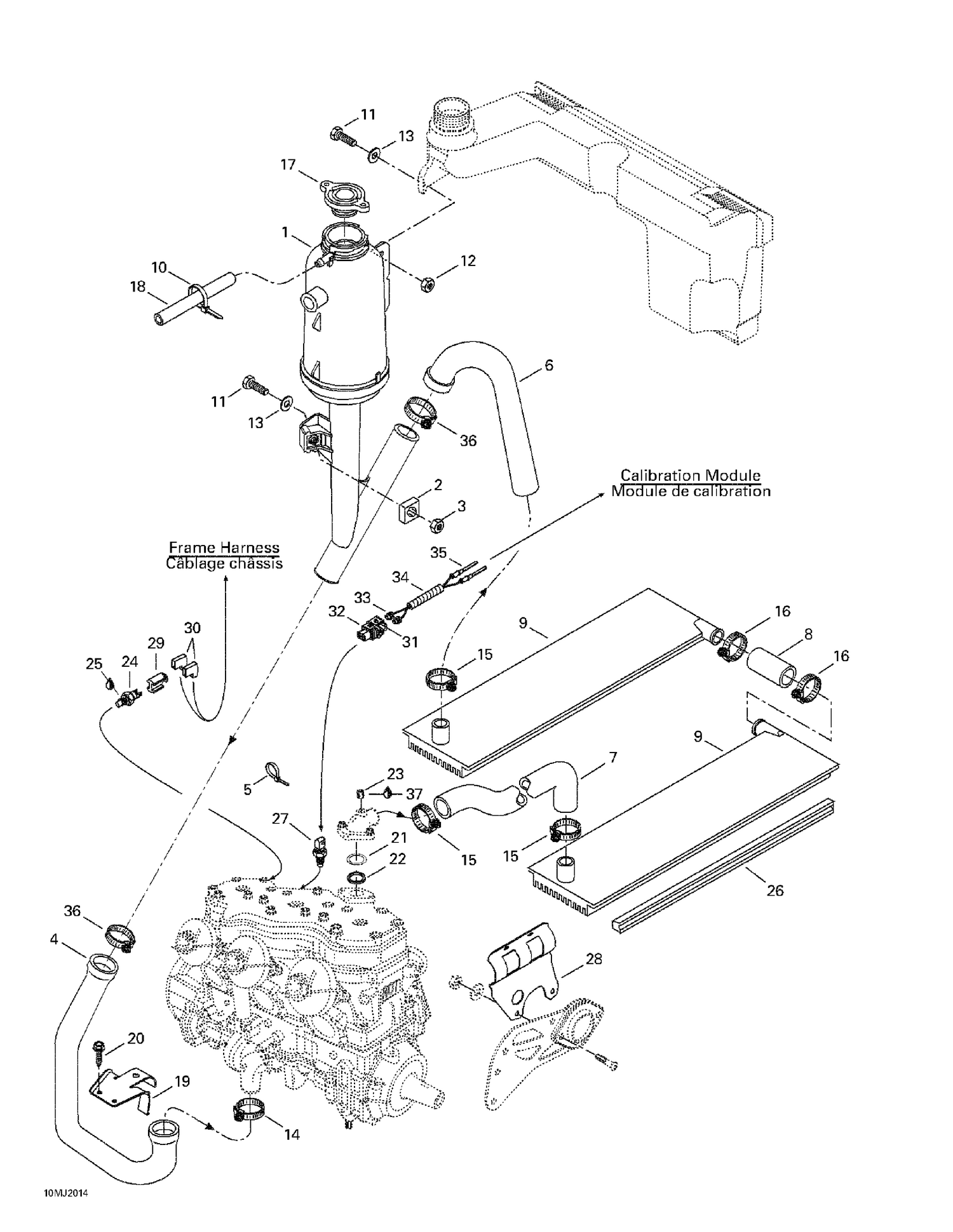

01- Cooling System
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 232061600 | Hex. Nut M6 |
| 4 | 509000026 | Engine Inlet Hose |
| 5 | 293750002 | Tie Wrap 142 mm |
| 6 | 415047000 | Radiator Outlet Hose |
| 7 | 415047100 | RADIATOR INLET HOSE - Call your local BRP dealership |
| 8 | 414795800 | Radiator Hose |
| 9 | 517290710 | RH Radiator |
| 10 | 414115200 | Tie-Rap 180 mm |
| 11 | 207162544 | Hex. Screw M6 X 25 |
| 12 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 13 | 224061121 | Flat Washer |
| 14 | 293650098 | Norma Gear Clamp |
| 15 | 408800400 | TRIDON GEAR CLAMP - Call your local BRP dealership |
| 16 | 408803400 | Clamp Tridon |
| 17 | 509000187 | Pressure Cap This part replaces 414684700. |
| 18 | 219704410 | Polyurethane Hose 10000Mm Long |
| 19 | 509000037 | Hose Protector |
| 20 | 210251180 | HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership |
| 21 | 420927745 | RETAINING DISK - Call your local BRP dealership |
| 22 | 420931270 | SEALING RING - Call your local BRP dealership |
| 23 | 420240480 | PLUG SCREW - Call your local BRP dealership |
| 24 | 414728700 | Temperature Sensor |
| 25 | 219704455 | Was 293800018 Loctite 592, 50 ml |
| 26 | 415012300 | RADIATOR PROTECTOR - Call your local BRP dealership |
| 27 | 278002895 | Temperature Sensor This part replaces 278001016. |
| 28 | 509000042 | HOSE PROTECTOR - Call your local BRP dealership |
| 29 | 515175297 | Connector Plug |
| 30 | 409010300 | Female Terminal |
| 31 | 278000998 | Female Terminal |
| 32 | 278001005 | Male Housing, 2 Circuits |
| 33 | 278000999 | Wire Seal |
| 34 | 219704424 | Vinyl Tubing, Low Temp 3000Mm Long |
| 35 | 409015100 | FEMALE TERMINAL - Call your local BRP dealership |
| 36 | 509000045 | Oetiker Gear Clamp 36.1MM |
