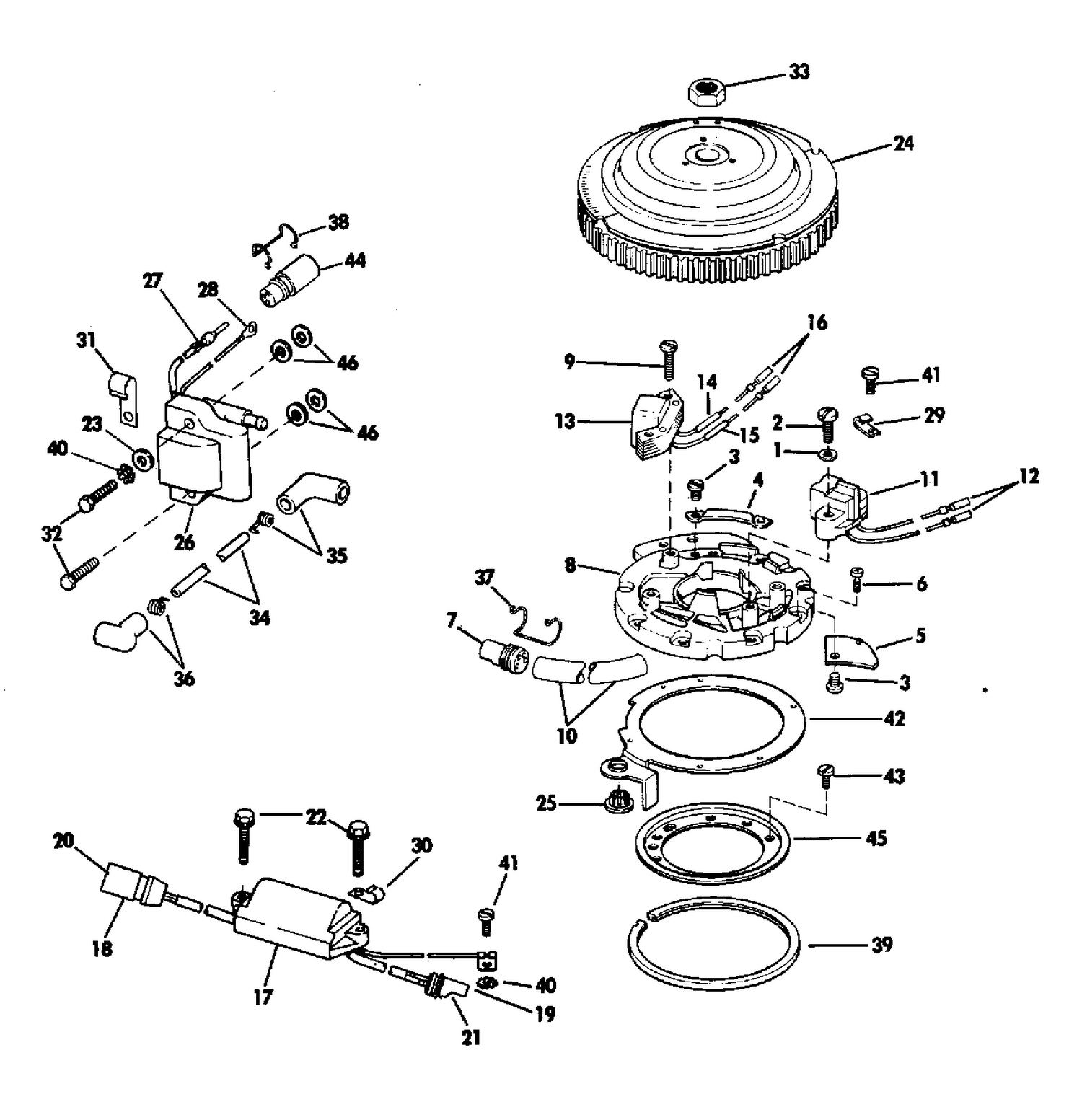

| Ref | Part Number | Description |
|---|
| 3 |
0303212 |
VIS, collier & capot |
| 4 |
0511458 |
COLLIER, fils |
| 5 |
0511459 |
CACHE, fils |
| 6 |
0511460 |
VIS, dispositif de retenue |
| 8 |
0582417 |
PLATE & SLEEVE ASSEMBLY |
| 10 |
0511482 |
SLEEVE |
| 11 |
0582296 |
SENSOR ASSY |
| 13 |
0581670 |
CHARGE COIL This part replaces 0581635. |
| 17 |
0582474 |
POWER PACK |
| 18 |
0511449 |
COMMECTOR, Coil to power pack |
| 22 |
0328726 |
SCREW (Use existing coil screw) |
| 24 |
0583696 |
FLYWHEEL ASSEMBLY This part replaces 0582436. |
| 25 |
0395448 |
BALL & SOCKET ASSY This part replaces 0313700. |
| 26 |
0582106 |
COIL ASSY |
| 29 |
0317000 |
COLLIER, câble |
| 31 |
0310441 |
CLAMP, CPS lead |
| 32 |
0328726 |
SCREW (Use existing coil screw) |
| 33 |
0326111 |
NUT |
| 34 |
0582365 |
H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
| 37 |
0322549 |
DISPOSITIF DE RETENUE, bouchon |
| 39 |
0322435 |
ROULEMENT, plaque d'allumage vers support |
| 41 |
0317753 |
SCREW |
| 42 |
0334193 |
RETAINER, Ign. plate assy. This part replaces 0323204. |
| 43 |
0332070 |
SCREW, Retaining plate This part replaces 0304442. |
| 45 |
0332063 |
PLATE, Support This part replaces 0323398. |
| 0582420 |
0582420 |
PLATE ASSY. COMPLETE |
