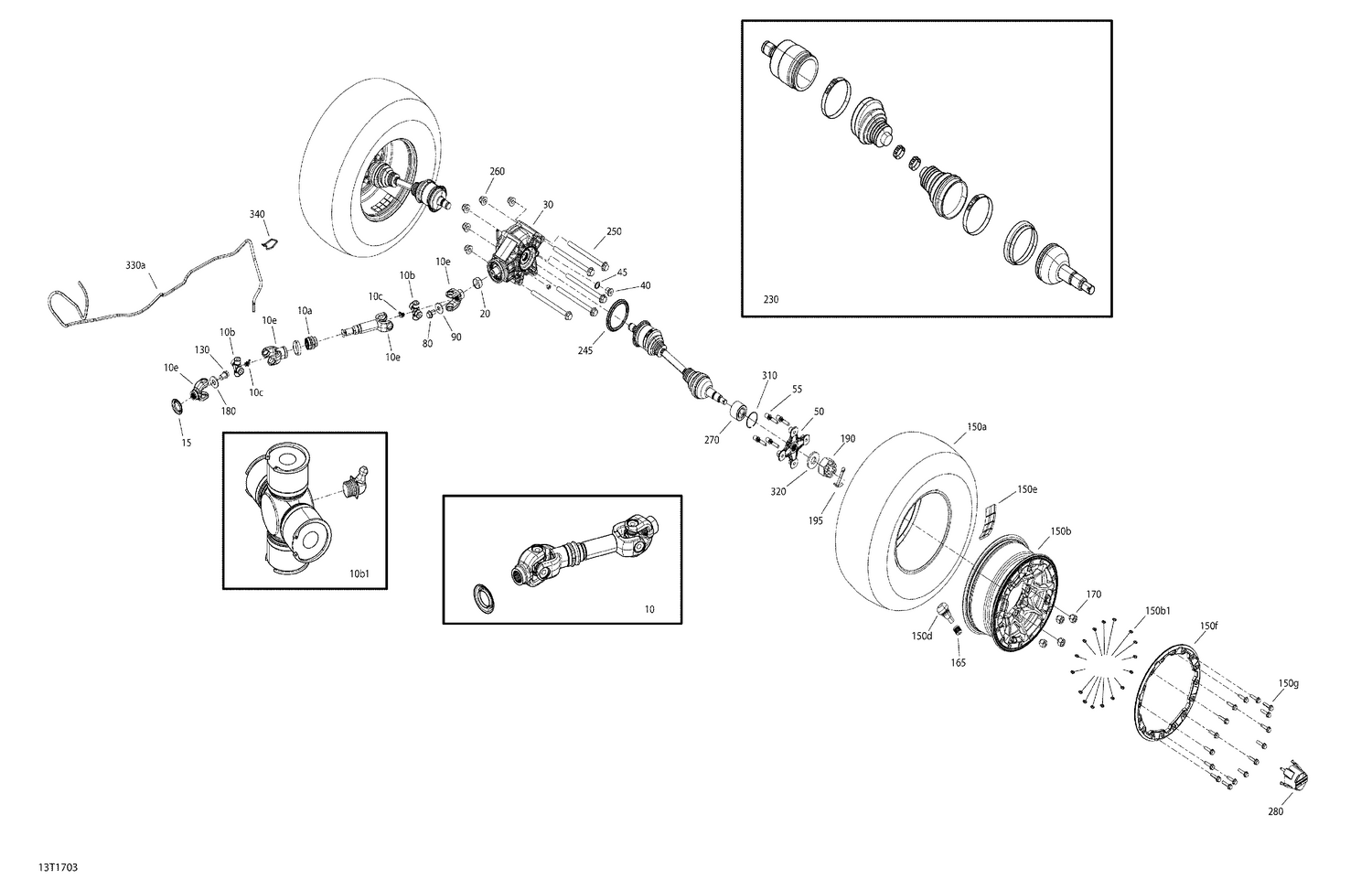

08- Drive, Rear Renegade - 850
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 715900118 | Rubber Boot |
| 10c | 715900295 | Grease Fitting |
| 10m | 705501123 | Protector |
| 15 | 705501123 | Protector |
| 20 | 705400036 | Wear Ring |
| 40 | 705500504 | Fill Level Plug |
| 45 | 705500506 | Copper Washer |
| 50 | 705501900 | Wheel Hub |
| 80 | 250001044 | Hex. Flange Screw M10 X 16 S.GRIP This part replaces 250000615. |
| 90 | 250200014 | Flat Washer M10 |
| 130 | 250001039 | Hex Flange Screw M12 X 16 This part replaces 250000359. |
| 165 | 293000110 | Valve Cap |
| 170 | 250100184 | Black, Wheel Nut M10 X 1.25 |
| 180 | 250200005 | Conical Spring Washer M12 |
| 190 | 232291413 | Hex. Flange Castellated Nut M18 This part replaces 250100047. |
| 195 | 250400071 | Cotter Pin |
| 245 | 705501124 | Wear Ring |
| 250 | 250001041 | Hex. Flange Screw M10 X 135 This part replaces 250000508. |
| 260 | 233201436 | Hex. Flange Elastic Nut M10 |
| 270 | 293350150 | Ball Bearing This part replaces 293350118. |
| 280 | 705400928 | Wheel Cap |
| 310 | 293370019 | Circlip |
| 320 | 250200171 | Conical Spring Washer M18 This part replaces 250200049. |
| 330a | 219704410 | Polyurethane Hose 10000Mm Long |
