Home / BRP / Can-Am SXS / 2014 / Maverick (Side by Side) / Maverick 1000_XMR, 2014 0006FEA00 0006FEB00 / 08- Rear Suspension _26C1406

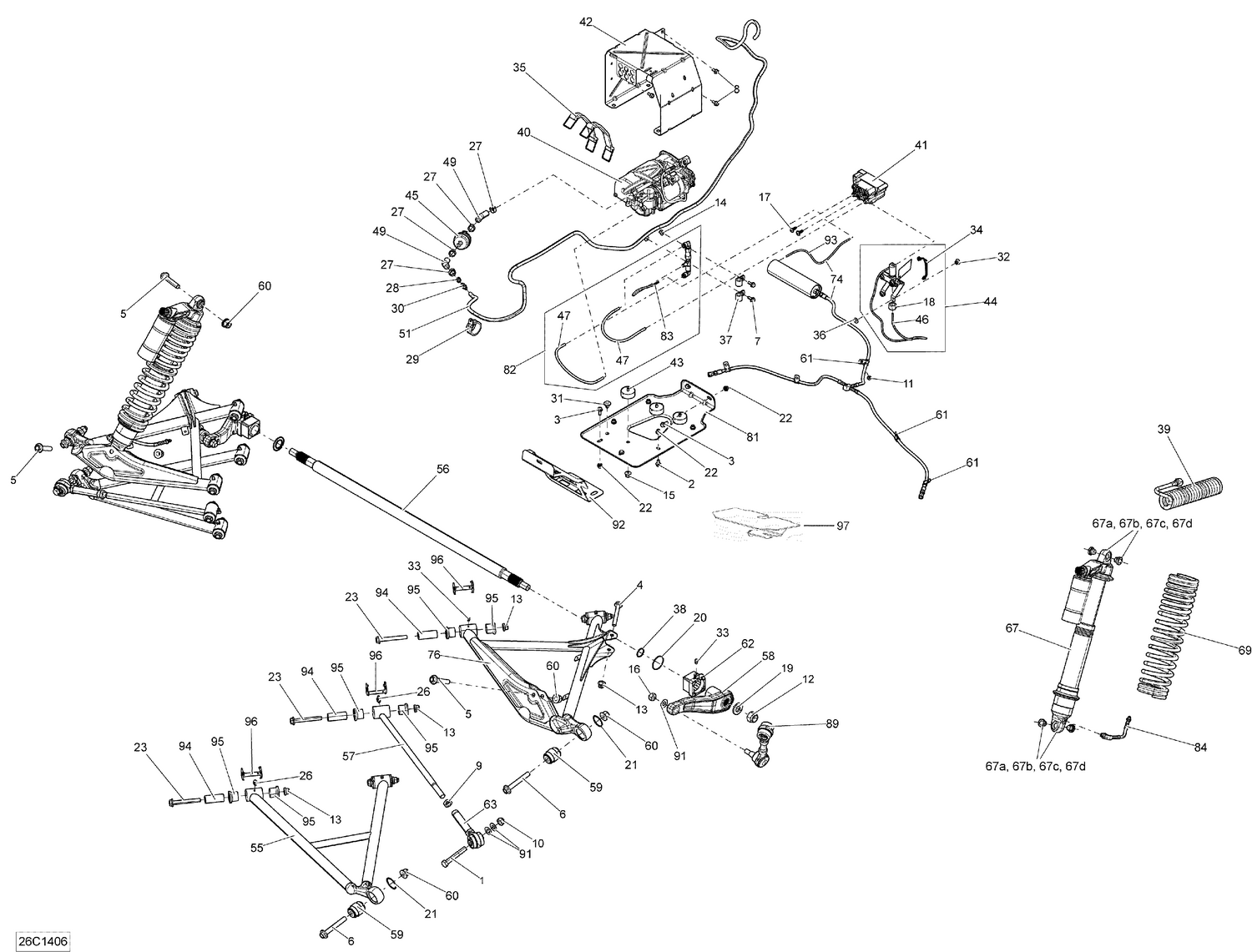

08- Rear Suspension _26C1406

08- Rear Suspension _26C1406

Parts (81)

RefPart NumberDescription
1 207028046 Hex. Screw M12 X 80
2 207561244 Hex. Flange Screw M6 X 12, Scotch Grip
3 207561644 Hex. Flange Screw M6 X 16, Scotch Grip
4 207607046 Hex. Flange Screw M10 X 70
5 207626046 Hex. Flange Screw M12 X 60
6 207628546 Hex. Flange Screw M12 X 85
7 207661644 Hex. Flange Screw M6 X 16
8 210261250 Hex. Flange Screw M6 X 12 This part replaces 210261280.
9 232175411 LH Hex. Lock Nut M14
10 232521416 Elastic Stop Nut M12
11 232561414 Elastic Stop Nut M6
12 232591414 Elastic Stop Nut M18
13 233201436 Hex. Flange Elastic Nut M10
14 233261414 Hex. Flange Elastic Nut M6 x 1.0
15 233281414 Hex. Flange Elastic Nut M8
16 250000047 Hex. Flange Elastic Nut M12
17 250000546 Oval Head Torx Screw K60 X 16
18 250100124 Hex. Nut With Nylon 1/2" X 20
19 250200045 Washer
20 293300100 O-Ring
21 293370093 Retaining Ring
22 250100242 Threaded Insert M6 X 1.0 This part replaces 293450274.
23 207608046 Hex Flange Screw M10 X 80
26 293550056 Grease Fitting 90°
27 293650053 Crimp Clamp
28 293650195 Clamp, Oetiker
29 293650218 Hose Retainer
30 293710035 Straight Fitting
31 293730040 Mount Dart This part replaces 293730018.
32 390406500 Pop Rivet 3/16"
33 408200700 Grease Fitting
34 414811400 O-Ring
35 515176044 Battery Strap
36 517124300 Washer
37 705600040 Open Clamp
38 706000251 Retaining Ring
39 706000808 Auxiliary Hose
40 706001100 COMPRESSOR - Call your local BRP dealership
40a 706001104 Solenoid Valve
40b 715900198 Pressure Connector 4mm
40c 715900199 PRESSURE CONNECTOR 6MM - Call your local BRP dealership
41 706001104 Solenoid Valve
42 706001120 UPPER SUPPORT - Call your local BRP dealership
43 706001127 RUBBER MOUNT - Call your local BRP dealership
44 706001873 BRACKET ASS'Y - Call your local BRP dealership This part replaces 706001134.
45 706001141 Air Filter
46 706001874 HOSE 4.0MM - Call your local BRP dealership This part replaces 706001143.
47 706001145 HOSE, POLYURETHANE 6 MM - Call your local BRP dealership
49 219704411 FUEL LINE 10000MM LONG - Call your local BRP dealership
51 219704410 Polyurethane Hose 10000Mm Long
55 706001354 Black LH Rear Lower Arm
55 706001355 Black RH Rear Lower Arm
56 706001356 Sway Bar
57 706001357 Rear Coupling Bar
58 706001371 Sway Bar Lever
59 706001373 Radial Joint
60 233221416 Elastic Flange Nut M12
61 705601337 Bracket This part replaces 705601088.
62 706001402 Sway Bar Housing
63 706001438 LH Ball Joint
67 706001465 REAR SHOCKS - Call your local BRP dealership
67a 715900251 Spherical Bearing
67b 715900252 Retaining Ring
67c 715900210 Interior Bushing
67d 715900209 O-Ring Bushing
69 706001466 YELLOW SPRING - Call your local BRP dealership
74 706001565 REAR SHOCKS DISTRIBUTOR - Call your local BRP dealership
76 706002093 YELLOW LH REAR UPPER ARM - Call your local BRP dealership This part replaces 706001634.
76 706002094 YELLOW RH REAR UPPER ARM - Call your local BRP dealership This part replaces 706001635.
81 706001121 LOWER SUPPORT - Call your local BRP dealership This part replaces 706001715.
82 706001716 PRESSURE DISTRIBUTOR - Call your local BRP dealership
83 706001874 HOSE 4.0MM - Call your local BRP dealership This part replaces 706001143.
84 706001937 HOSE - Call your local BRP dealership This part replaces 706001740.
89 706001741 LH Double Ball Joint This part replaces 706001555.
89 706001742 RH Double Ball Joint This part replaces 706001556.
91 706200281 Hardened Washer This part replaces 250200086.
92 706201524 TANK BRACKET - Call your local BRP dealership
93 706001874 HOSE 4.0MM - Call your local BRP dealership This part replaces 706001143.
94 706201590 Sleeve
95 706204409 Suspension Arm Bushing This part replaces 706201659.
96 706201660 Wear Plate
