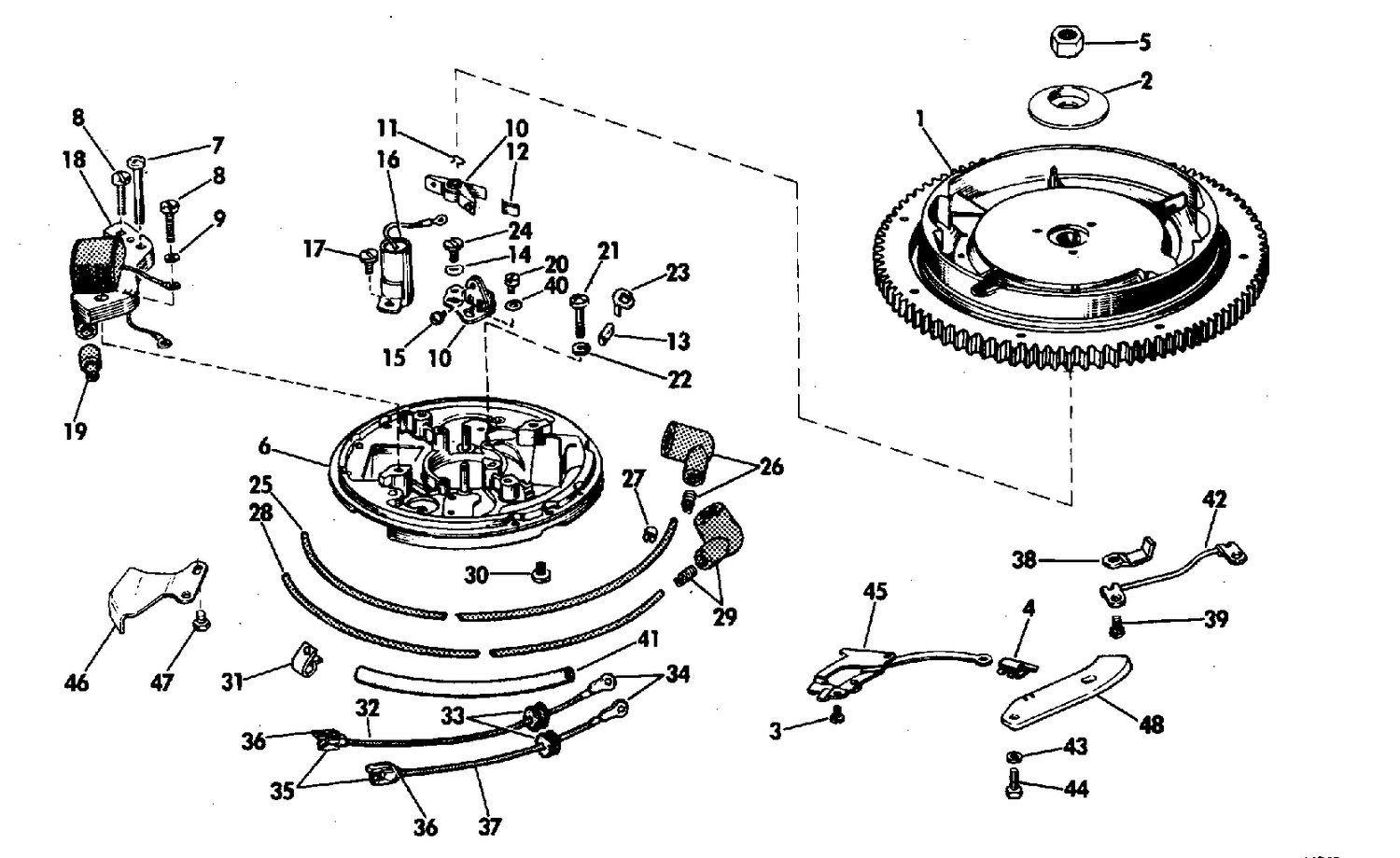

| Ref | Part Number | Description |
|---|
| 1 |
0580866 |
FLYWHEEL & RING GEAR ASSEMBLY |
| 2 |
0311232 |
COVER |
| 4 |
0316362 |
CLIP, Link spring |
| 5 |
0301988 |
NUT |
| 6 |
0580856 |
ARMATURE PLATE |
| 7 |
0510286 |
SCREW, Lamination |
| 8 |
0510397 |
SCREW |
| 10 |
0580148 |
BEAKER,Assy |
| 14 |
0510208 |
BOW WASHER |
| 15 |
0510194 |
SCREW |
| 16 |
0581419 |
CONDENSER This part replaces 0580422. |
| 18 |
0580197 |
COIL & LAMINATION |
| 20 |
0510185 |
ECCENTRIC SCREW |
| 21 |
0310350 |
SCREW, Armature plate |
| 22 |
0360252 |
WASHER This part replaces 0306311. |
| 23 |
0510188 |
CLIP, Oiler |
| 24 |
0510278 |
SCREW |
| 25 |
LEAD, |
High tension |
| 27 |
0120783 |
BAND, Identification |
| 28 |
LEAD, |
High tension |
| 30 |
0510278 |
SCREW |
| 31 |
0510371 |
CABLE CLAMP |
| 32 |
0580505 |
SHORTING WIRE ASSY .,Long |
| 34 |
71A1063 |
TERMINAL |
| 37 |
0580506 |
SHORTING WIRE ASSY ., SHORT ( Incl. items 3 3 thru 36 ) |
| 38 |
0510409 |
CLAMP, H.T. lead |
| 39 |
0329594 |
SCREW, Cam follower This part replaces 0303737. |
| 40 |
0510391 |
BOW WAHSER,Eccentric scr. |
| 41 |
0309143 |
SLEEVE, High tension leads |
| 42 |
0580733 |
FIL, masse solénoïde |
| 45 |
0581441 |
LINK, Stop & bushing This part replaces 0384701. |
| 46 |
0315762 |
CAM, Lockout lever |
| 47 |
0315806 |
SCREW, Cam to retainer |
| 0580937 |
0580937 |
ARMATATURE PLATE ASSY |
| 0591336 |
0591336 |
H.T. LEAD ASSEMBLY, Upper |
| 0591337 |
0591337 |
H. T. LEAD ASSY., Lower |
