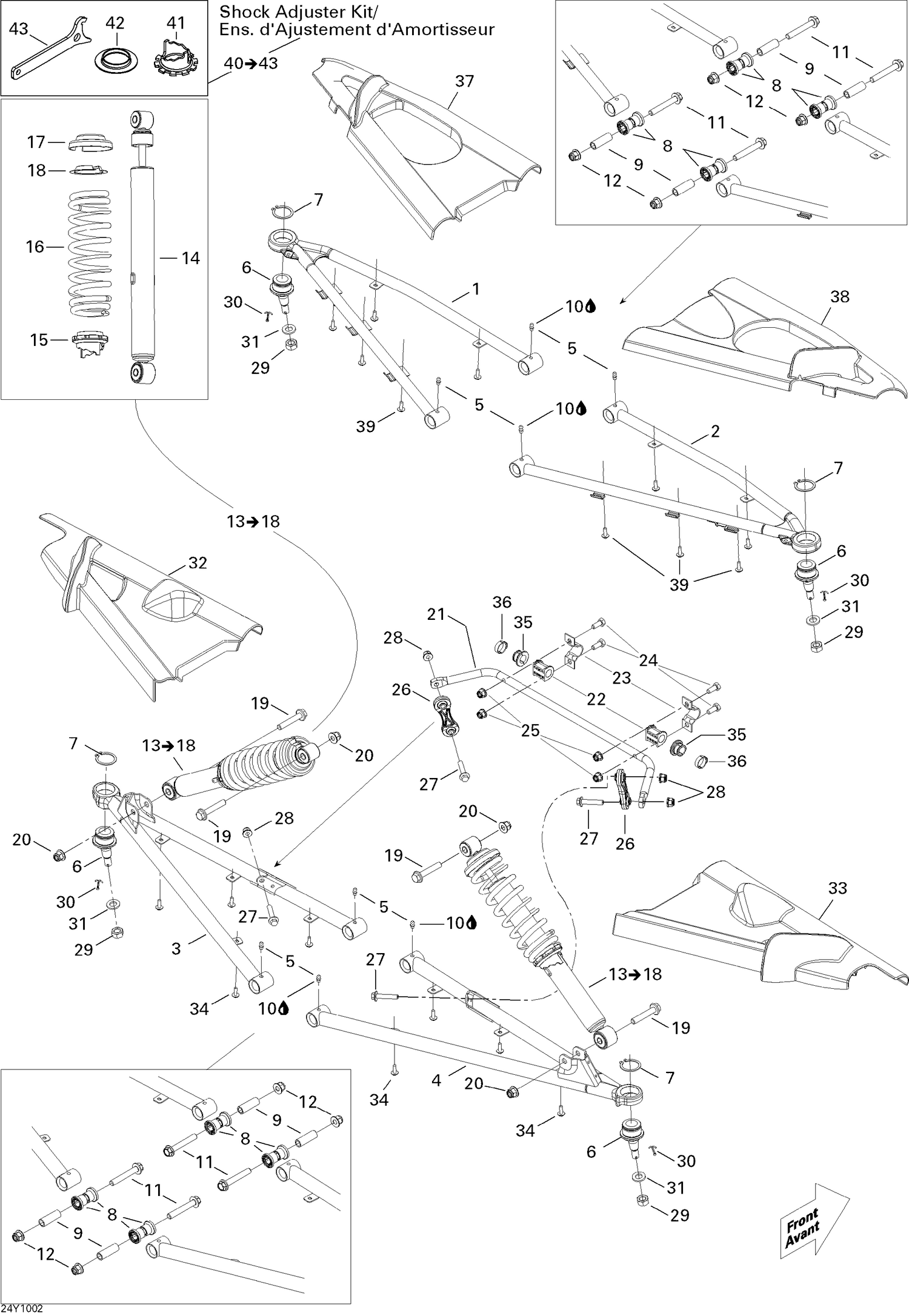

| Ref | Part Number | Description |
|---|
| 1 |
706201000 |
LH UPPER ARM - Call your local BRP dealership |
| 2 |
706201001 |
RH UPPER ARM - Call your local BRP dealership |
| 3 |
706201002 |
LH LOWER ARM - Call your local BRP dealership |
| 4 |
706201003 |
RH LOWER ARM - Call your local BRP dealership |
| 5 |
408200700 |
Grease Fitting |
| 6 |
706202044 |
Ball Joint This part replaces 505072362. |
| 7 |
293370035 |
Circlip |
| 8 |
706200181 |
Bushing |
| 9 |
706200618 |
Bushing |
| 10 |
293550010 |
Synthetic Grease, 400 G |
| 11 |
207606536 |
Hex. Flange Screw M10 X 65 |
| 12 |
233201434 |
Hex. Flange Elastic Nut M10 |
| 14 |
706001059 |
SHOCK - Call your local BRP dealership This part replaces 706000675. |
| 15 |
706002356 |
Adjuster Ring This part replaces 706000294. |
| 16 |
706000676 |
SPRING - Call your local BRP dealership |
| 17 |
706200881 |
Spring Stopper |
| 18 |
706200785 |
Cap |
| 19 |
207605534 |
Hex. Flange Screw |
| 20 |
233201434 |
Hex. Flange Elastic Nut M10 |
| 21 |
706201156 |
SWAY BAR - Call your local BRP dealership |
| 22 |
505070881 |
RH BUSHING, 5/8 - Call your local BRP dealership |
| 23 |
506095800 |
CLAMP - Call your local BRP dealership |
| 24 |
207182034 |
HEX. CAP SCREW M8 X 20 - Call your local BRP dealership |
| 25 |
233281434 |
Hex. Flange Elastic Nut M8 |
| 26 |
706200671 |
Tie Rod |
| 27 |
207684034 |
Hex. Flange Screw M8 X 40 |
| 28 |
233281434 |
Hex. Flange Elastic Nut M8 |
| 29 |
250100099 |
Nut M12 |
| 30 |
250400035 |
Cotter Pin |
| 31 |
706200281 |
Hardened Washer This part replaces 250200086. |
| 32 |
706200884 |
LH LOWER DEFLECTOR - Call your local BRP dealership |
| 33 |
706200885 |
RH LOWER DEFLECTOR - Call your local BRP dealership |
| 34 |
243141630 |
Hex. Plastic Screw M4.8 X 16 |
| 35 |
706201158 |
SWAY BAR STOPPER - Call your local BRP dealership |
| 36 |
293650012 |
Oetiker Clamp |
| 37 |
706200886 |
LH UPPER DEFLECTOR - Call your local BRP dealership |
| 38 |
706200887 |
RH UPPER DEFLECTOR - Call your local BRP dealership |
| 39 |
243141630 |
Hex. Plastic Screw M4.8 X 16 |
| 41 |
706001061 |
ADJUSTER RING - Call your local BRP dealership |
| 42 |
706001062 |
RING PROTECTOR - Call your local BRP dealership |
