| Ref | Part Number | Description |
|---|
| 1 |
0431642 |
GEARCASE & BEARING ASSY. This part replaces 0389818. |
| 10 |
0320741 |
SCREW, Gearcase to exhaust hsg |
| 20 |
0314742 |
SHIM BEARING HOUSING |
| 28 |
0397087 |
BEARING HOUSING SEAL ASSY. This part replaces 0384523. |
| 32 |
0316563 |
SCREW |
| 33 |
0317178 |
O RING |
| 39 |
5000777 |
Kit Ay This part replaces 0389675. |
| 39 |
5000778 |
Kit Ay This part replaces 0389674. |
| 40 |
0985050 |
GEAR & PINION ASSY This part replaces 0389966. |
| 47 |
0323269 |
SHIFT ROD |
| 47 |
0323270 |
SHIFT ROD |
| 52 |
0335020 |
SCREW, Bracket to block This part replaces 0318139. |
| 54 |
0436888 |
PROPELLER SHAFT ASSY. This part replaces 0387818. |
| 57 |
0323950 |
KEY, Drive shaft to impeller |
| 58 |
0322894 |
LINER, Impeller |
| 59 |
0321176 |
PALTE,Liner,impeller |
| 60 |
0321120 |
SEAL |
| 63 |
0313697 |
SCR,Grc to hsg.long |
| 64 |
0435027 |
CUP & PLATE This part replaces 0324751. |
| 65 |
0389657 |
IMPELLER HOUSING ASSY |
| 67 |
0338742 |
COMPENSATEUR DE DÉRIVE This part replaces 0316981. |
| 68 |
0323626 |
SCREW |
| 71 |
0306314 |
L'WASHER,Scr,long |
| 74 |
0307708 |
RONDELLE GROWER |
| 76 |
0313715 |
SCREW, Cap, hex hd, 7/16-14 x 1 |
| 79 |
0382761 |
PROPELLER ,14 x 11 |
| 79 |
0382765 |
PROPELLER 13 X 19 |
| 79 |
0384136 |
PROPELLER 12-3/4 X 23 |
| 79 |
0388884 |
PROP., 13- 1/2 x 23 - sst-ss |
| 79 |
0389510 |
PROPELLER, 13 * 19 SST |
| 79 |
0389512 |
PRO, 12-3/4 x 21 sst cupped |
| 79 |
0389514 |
PROPELLER 12-3/4 x 23 - SST |
| 79 |
0389788 |
PROPELLER, 12 3/4 x 21 |
| 79 |
0389948 |
PROPELLER, 12-3/4 x 17 - SST |
| 79 |
0389949 |
PROPELLER, 12 3/4 X 15-SST |
| 79 |
0765181 |
PROPELLER This part replaces 0382762. |
| 79 |
0765182 |
PROPELLER - W Models This part replaces 0382763. |
| 79 |
0765183 |
PROPELLER, WDEL Models This part replaces 0382764. |
| 82 |
5001594 |
WATER PUMP REPAIR KIT This part replaces 0390768. |

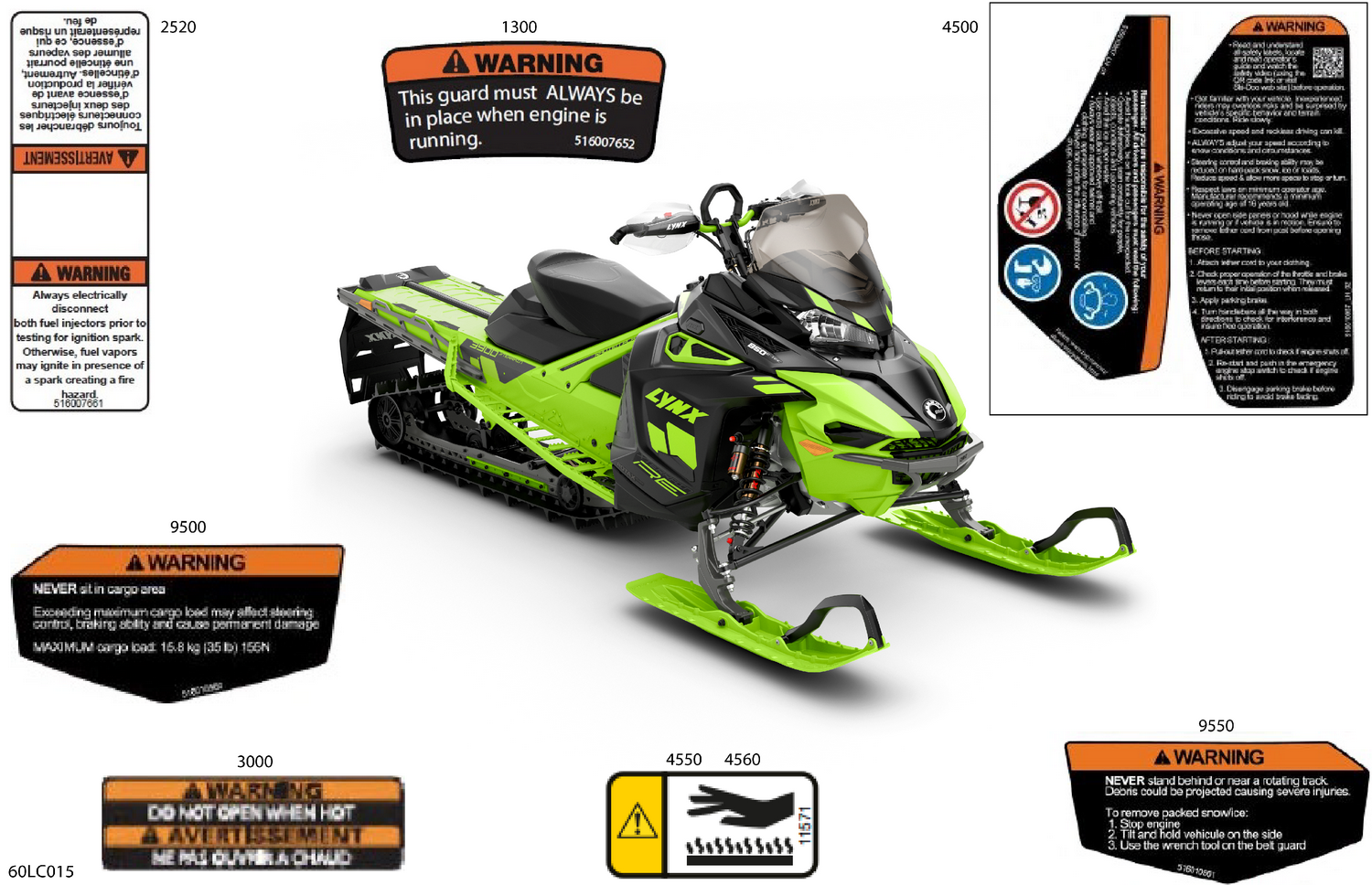

| 1300 |
516007652 |
Engine Guard Warning Decal |
| 2520 |
516007661 |
Warning Decal, Injectors |
| 3000 |
516005904 |
Warning Decal |
| 4500 |
516010957 |
Decal |
| 4550 |
516011571 |
Caution Hot Label |
| 4560 |
516011571 |
Caution Hot Label |
| 9500 |
516010960 |
Warning Decal |
| 0307853 |
0307853 |
O RING |
| 0389819 |
0398182 |
GEARCASE ASSY., Complete This part replaces 0389819. |
| 0389820 |
0398183 |
GEARCASE ASSY., Complete This part replaces 0389820. |
