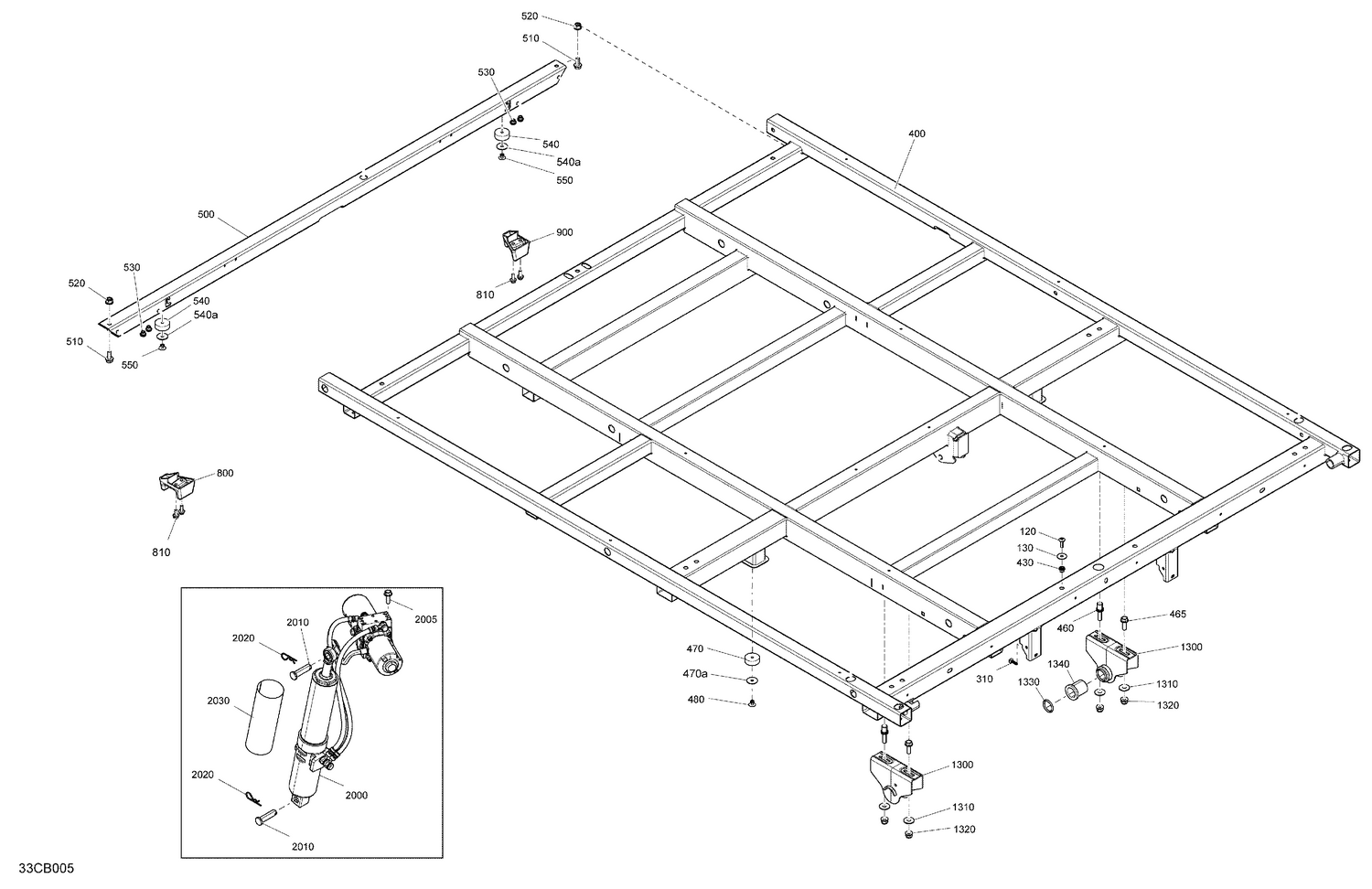

07- Body - Cargo - Lower Section
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 120 | 250000722 | Torx Screw M6 X 20 |
| 130 | 250200162 | Flat Washer M6.6 X 22 |
| 310 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 400 | 715008399 | Open Carrier Frame Kit |
| 430 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 460 | 250300645 | Protruding Stud M8 X 28 |
| 465 | 207682544 | Hex. Flange Screw M8 X 25 |
| 470a | 224060251 | Washer |
| 480 | 293150104 | Pop Rivet 3/16" |
| 500 | 708303709 | Front Square Tube |
| 510 | 207682046 | Hex. Flange Screw M8 X 20 |
| 520 | 233281416 | Hex. Elastic Flange Nut M8 |
| 530 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 540a | 224060251 | Washer |
| 550 | 293150104 | Pop Rivet 3/16" |
| 800 | 708303301 | LH Stopper |
| 810 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 900 | 708303302 | RH Stopper |
| 1300 | 708303342 | Female Hinge |
| 1310 | 234082410 | Flat Washer 8 mm |
| 1320 | 233281414 | Hex. Flange Elastic Nut M8 |
| 1330 | 293300131 | O-Ring |
| 1340 | 708303361 | Hinge Bushing |
| 2000 | 715007096 | Actuator Open Carrier Kit |
| 2005 | 250000906 | Hex Flange Screw M6 X 16 |
| 2010 | 250400096 | Pin Clevis |
| 2020 | 414575600 | Hair Pin |
