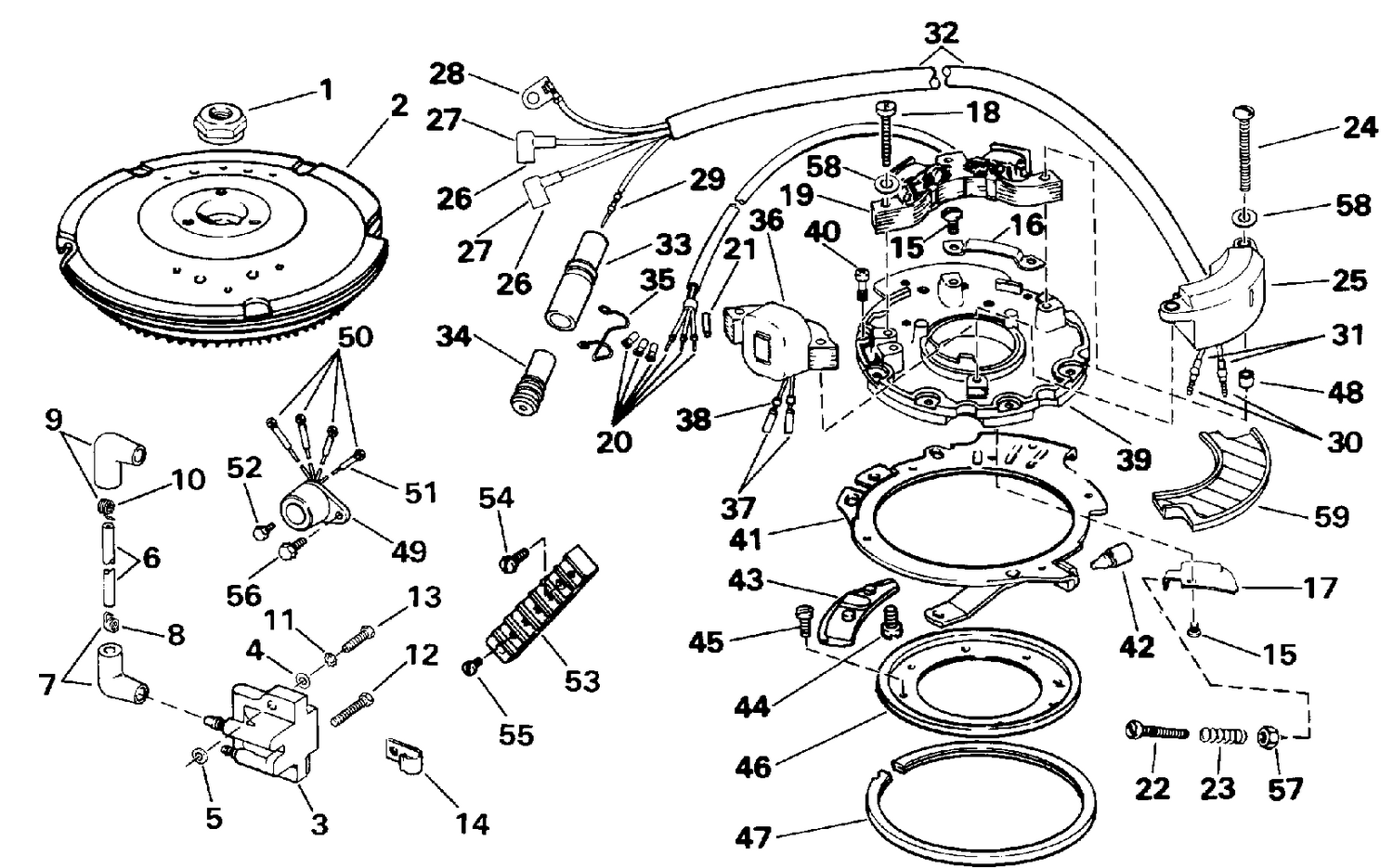

| Ref | Part Number | Description |
|---|
| 1 |
0302944 |
NIT,Flywheel |
| 2 |
0583913 |
FLYWHEEL ASSEMBLY |
| 2 |
0583915 |
FLYWHEEL & RING GEAR ASSY. |
| 3 |
0582508 |
COIL ASSY |
| 5 |
0329176 |
FIBER WASHER, Ignition coil |
| 6 |
0582365 |
H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
| 12 |
0325115 |
SCREW, Oil tank/EMM mount |
| 14 |
0330151 |
CLAMP, Harness to oil tank boss |
| 15 |
0303212 |
VIS, collier & capot |
| 16 |
0511458 |
COLLIER, fils |
| 17 |
0331626 |
COVER, Leads |
| 18 |
0320504 |
SCREW, Bracket to carburetor |
| 19 |
0584341 |
STATOR ASSEMBLY |
| 23 |
0331591 |
SPRING SCREW, Idle stop |
| 24 |
0330184 |
VIS, montage pompe This part replaces 0306259. |
| 25 |
0584488 |
IGNITION MODULE This part replaces 0583667. |
| 32 |
0513109 |
TUBING, Models leads |
| 35 |
0512741 |
DISPOSITIF DE RETENUE, conn. de l'interrupteur thermostatique |
| 36 |
0584333 |
CHARGE COIL & LAM. ASSY. |
| 39 |
0583285 |
PLAT & SLEEVE ASSY. |
| 40 |
0511460 |
VIS, dispositif de retenue |
| 41 |
0395243 |
RETAINER & LINK ASSEMBLY |
| 42 |
0330579 |
BUMPER |
| 43 |
0396740 |
CAM, Throttle control |
| 45 |
0315287 |
SCREW |
| 46 |
0322102 |
PLATE, Support |
| 47 |
0322435 |
ROULEMENT, plaque d'allumage vers support |
| 48 |
0513029 |
SPACER |
| 49 |
0581778 |
REDRESSEUR |
| 55 |
0329182 |
VIS, borne |
