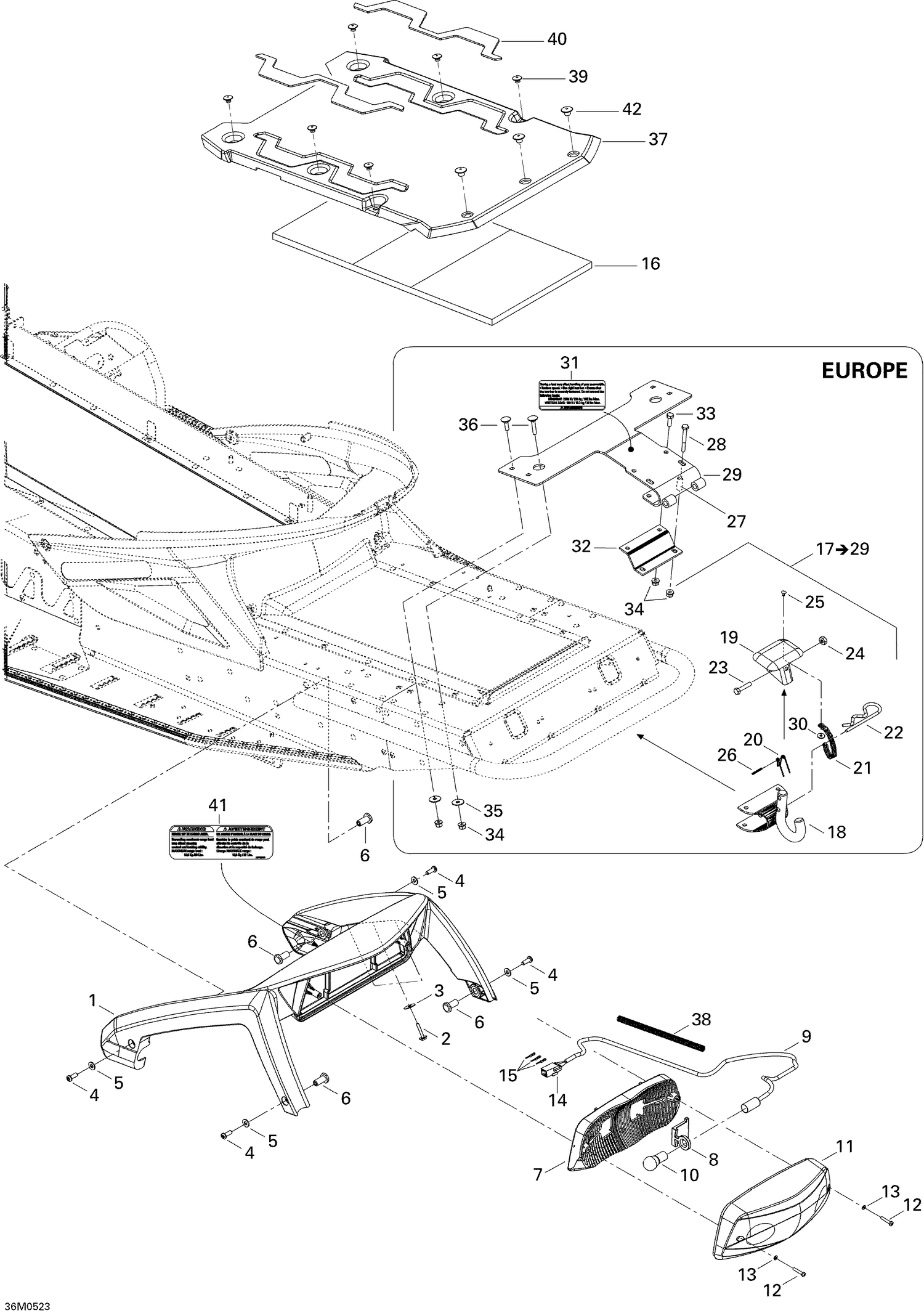

09- Luggage Rack
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 511000425 | Luggage Rack |
| 2 | 250000202 | Self Tapping Screw #8 X 5/8 |
| 3 | 250200040 | Flat Washer |
| 4 | 250000168 | SOCKET SCREW M6 X 16 - Call your local BRP dealership |
| 5 | 250200039 | Flat Washer |
| 6 | 511000398 | INSERT - Call your local BRP dealership |
| 7 | 510004442 | REFLECTOR - Call your local BRP dealership |
| 8 | 511000431 | BULB SUPPORT - Call your local BRP dealership |
| 9 | 511000428 | Bulb Socket |
| 10 | 520000758 | Bulb This part replaces 410504100. |
| 11 | 511000315 | Lens |
| 12 | 209632580 | PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership |
| 13 | 414516400 | Washer - Call your local BRP dealership |
| 14 | 515175494 | Male Housing, 3 Circuits |
| 15 | 515175232 | Male Terminal |
| 16 | 511000364 | RADIATOR COVER SHIM - Call your local BRP dealership |
| 37 | 511000436 | RADIATOR COVER - Call your local BRP dealership |
| 38 | 219704425 | Tubing 6 Mm 3000Mm Long |
| 39 | 293150103 | Pop Rivet 3/16" |
| 40 | 511000396 | Carpet |
| 41 | 516002666 | Warning Label, Maximum Cargo Load |
