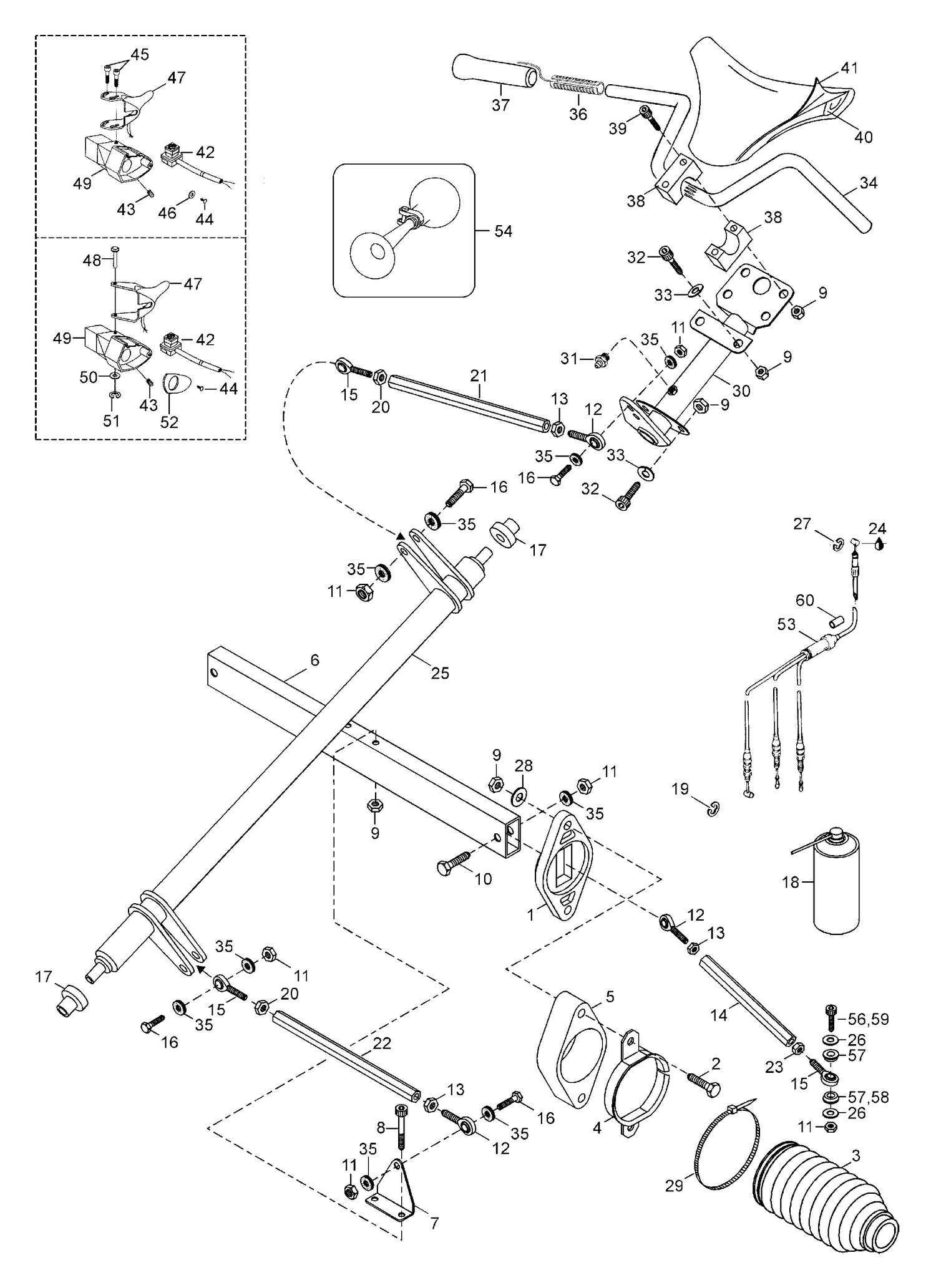

| Ref | Part Number | Description |
|---|
| 1 |
5343486 |
Bearing |
| 2 |
40012 |
HEX, SCREW M8 X 80 - Call your local BRP dealership |
| 3 |
570068300 |
TIE-ROD CAP - Call your local BRP dealership |
| 4 |
5343720 |
Bracket |
| 5 |
5343597 |
Support for bearing |
| 6 |
5344649 |
Steering beam |
| 7 |
5441549 |
Plate |
| 8 |
40290 |
Allen screw M8x55 |
| 9 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 10 |
40042 |
Screw M10x35 |
| 11 |
33012 |
Nut elastic M10 |
| 12 |
311031L |
Joint ball L.H. |
| 13 |
3310934L |
Nut M10 |
| 14 |
5343556 |
Tie Rod |
| 15 |
311031R |
Joint ball, R.H. |
| 16 |
40014 |
Screw M10x40 |
| 17 |
31049 |
Glide bearing |
| 18 |
32123 |
Spray oil |
| 19 |
414753500 |
Circlip This part replaces 31035. |
| 20 |
232006414 |
Hex. Nut M10 This part replaces 33004. |
| 21 |
5344322 |
Tie Rod |
| 22 |
5343558 |
Tie Rod |
| 23 |
33069 |
Nut M10 |
| 24 |
413701700 |
Grease_Dielectric |
| 25 |
5344827 |
Main tube |
| 26 |
20005 |
WASHER M10 - Call your local BRP dealership |
| 27 |
31038 |
Circlip 5 DIN 6799(1=10pcs) - Call your local BRP dealership |
| 28 |
234082410 |
Flat Washer 8 mm This part replaces 20010. |
| 29 |
27121 |
Tie rap |
| 30 |
5243030 |
Main tube upper |
| 31 |
34011 |
Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership |
| 32 |
40305 |
Allen screw M8x20 |
| 33 |
20014 |
Lock washer |
| 34 |
5241830 |
Handle bar |
| 35 |
20068 |
Washer, pair |
| 36 |
544345 |
Heather Assy - Call your local BRP dealership |
| 37 |
5340464 |
Grip |
| 38 |
548448 |
Support of Bar - Call your local BRP dealership |
| 39 |
40131 |
Allen screw M8x40 |
| 40 |
5242077 |
Steering pad foam |
| 41 |
5244989 |
Cover |
| 42 |
515177362 |
Kill Switch This part replaces 414612700. |
| 43 |
414440800 |
Socket Set Screw M8 X 10 |
| 44 |
414473200 |
Screw |
| 45 |
Not |
Available As Spare Part - Screw - DOES NOT APPLY TO THIS MODEL |
| 46 |
Not |
Available As Spare Part - Washer - DOES NOT APPLY TO THIS MODEL |
| 47 |
512060214 |
Handle Assy This part replaces 572085900. |
| 48 |
414438700 |
Lever pin |
| 49 |
512060603 |
Housing throttle This part replaces 572086700. |
| 50 |
234051600 |
Washer M5 This part replaces 414438900. |
| 51 |
414439000 |
Circlip |
| 52 |
512060390 |
Plate This part replaces 572099400. |
| 53 |
512058901 |
Throttle cable |
| 54 |
549011291 |
Horn This part replaces 21003. |
| 56 |
40134 |
Screw Socket HD.DIN 912 |
| 57 |
547068 |
Cup washer |
| 58 |
5444047 |
Sleeve |
| 59 |
40837 |
Allen Screw M10x55 DIN 912 (1=10pcs) - Call your local BRP dealership |
